FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Audi
>>
1992
>>
100, S, CS Sedan V6-2.8L (AAH)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Scan Tool Testing and Procedures
>>
Scan Tool Testing
>>
Basic Setting (Function 04)
>>
Basic Setting Diagnostic Charts
>>

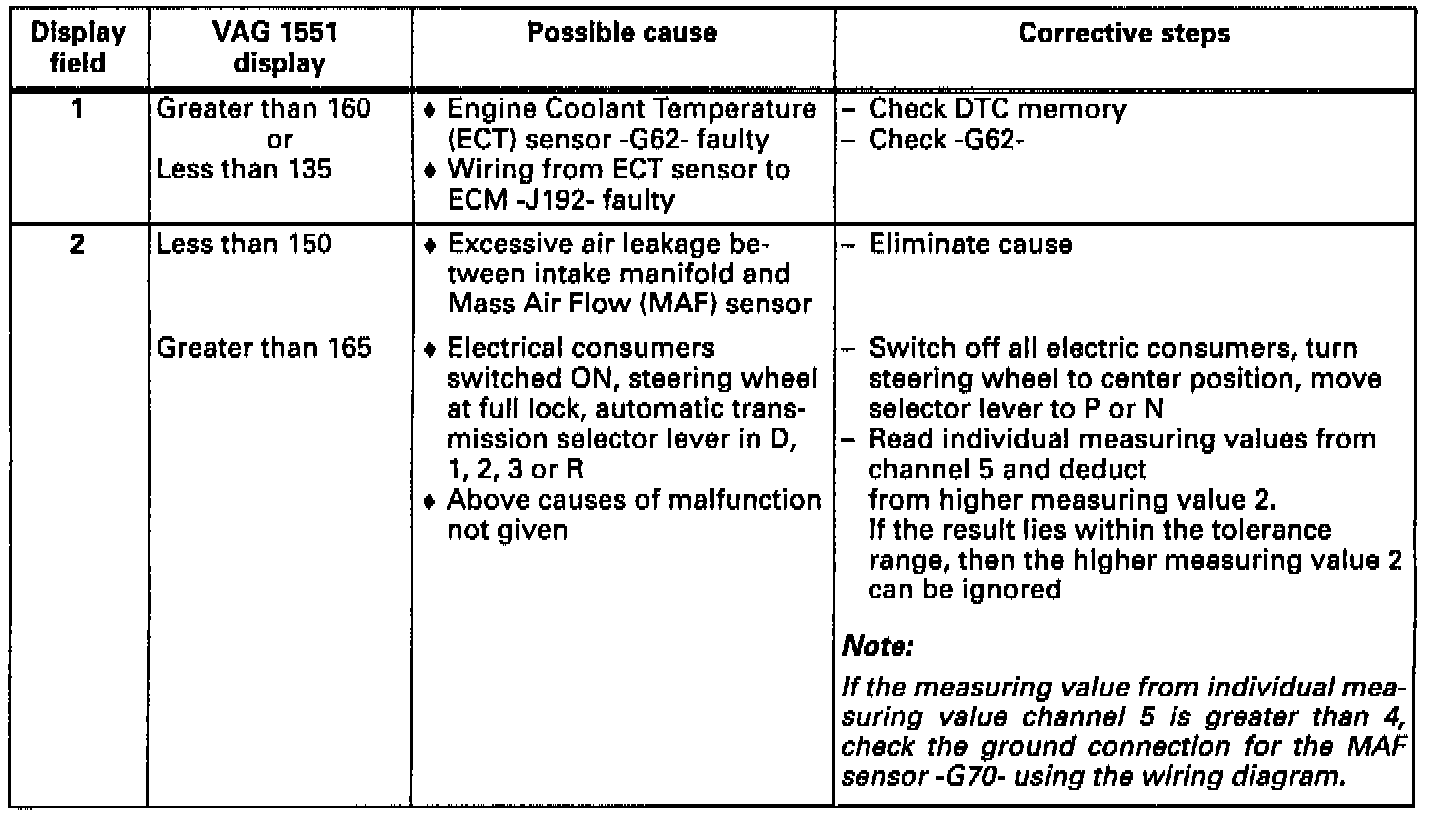

Diagnostic Chart - Channels 1 - 2
Diagnostic Chart - Channels 1 - 2
Diagnostic Chart - Channels 1 - 2:
