Symptom Troubleshooting

Symptom Troubleshooting: The key-in reminder does not sound

The key-in reminder does not sound

1. Turn the interior light switch to DOOR position.

2. Open the driver's door.

Does the individual map lights come on?
YES - Go to step 3.

NO - Faulty driver's door switch and/or open in the wire.


3. Select GAUGES from the BODY ELECTRICAL system select menu with the HDS.

4. Select FUNCTION TEST from the TEST MODE menu with the HDS, and enter SELF TEST.

Does the key-in reminder sound?
YES - Go to step 5.

NO - Replace the gauge control module. Service and Repair


5. Open the driver's door.

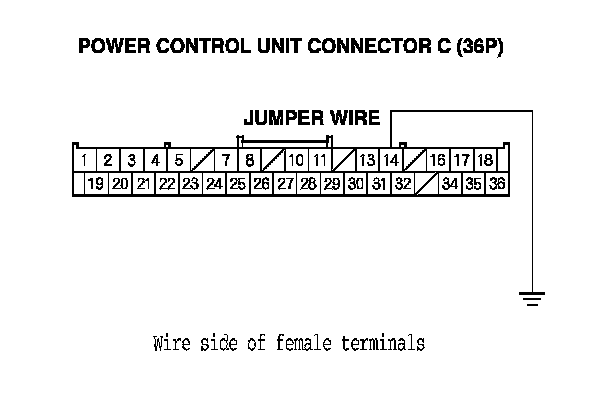

6. Connect power control unit connector C (36P) terminal No. 14 to body ground with jumper wire.

Does the key-in reminder sound?
YES - Replace the power control unit. Testing and Inspection

NO - Go to step 7.






7. Press the engine start/stop button to select the OFF mode.

8. Disconnect power control unit connector C (36P).

9. Disconnect driver's under-dash fuse/relay box connector Q (20P).

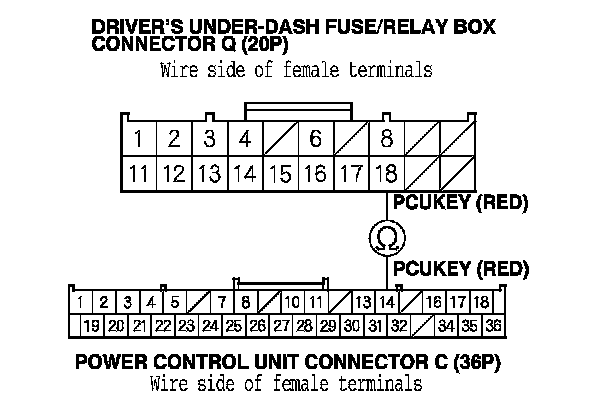

10. Check for continuity between driver's under-dash fuse/relay box connector Q (20P) terminal No. 18 and power control unit connector C (36P) terminal No. 14.

Is there continuity?
YES - Faulty driver's MICU; replace the under-dash fuse/relay box. Driver's Under-Dash Fuse/Relay Box (MICU) Removal/Installation

NO - Repair open in the wire.
