Symptom Troubleshooting
Symptom Troubleshooting: The engine cranks but will not start with keyless access or with the remote in the remote slot
The engine cranks but will not start with keyless access or with the remote in the remote slot
1. Turn the keyless access system mode switch OFF.
2. Insert the remote into the remote slot.
3. Press the engine start/stop button to select the ON mode.
4. Check the immobilizer indicator.
Is the immobilizer indicator blinking?
YES - Go to step 5.
NO - Go to step 20.
5. Connect the HDS to the data link connector (DLC).
6. Select REMOTE SLOT CONTROL UNIT from the ONE-PUSH START SYSTEM system select menu with the HDS, and enter SYSTEM INFORMATION.
7. Do the SYSTEM CHECK with the HDS.
Is N-1 OK indicated?
YES - Go to step 8.
NO - Troubleshooting the keyless access system according to the result of the SYSTEM CHECK. Keyless Access System Symptom Troubleshooting Information
8. Select REMOTE SLOT CONTROL UNIT from the ONE-PUSH START SYSTEM system select menu with the HDS, and enter DATA LIST.
9. Check the ESL SW B in the DATA LIST.
Is the information indicator ON?
YES - Go to step 10.
NO - Go to step 23.
10. Press the engine start/stop button to select the OFF mode.
11. Remove the remote from the remote slot.
12. Turn the keyless access system mode switch ON.
13. Press the engine start/stop button to select the ON mode.
14. Check the immobilizer indicator.
Is the immobilizer indicator blinking?
YES - Go to step 15.
NO - Go to step 20.
15. Select KEYLESS ACCESS CONTROL UNIT from the ONE-PUSH START SYSTEM system select menu with the HDS, and enter KEYLESS ACCESS CONTROL INFORMATION.
16. Do the SYSTEM CHECK 1 with the HDS.
Is N-1 OK indicated?
YES - Go to step 17.
NO - Troubleshoot the keyless access system according to the result of the SYSTEM CHECK 1. Keyless Access System Symptom Troubleshooting Information
17. Do the SYSTEM CHECK 2 with the HDS.
Is N-2 OK indicated?
YES - Go to step 18.
NO - Troubleshoot the keyless access system according to the result of the SYSTEM CHECK 2. Keyless Access System Symptom Troubleshooting Information
18. Select KEYLESS ACCESS CONTROL UNIT from the ONE-PUSH START SYSTEM system select menu with the HDS, and enter DATA LIST.
19. Check the ESL SW B in the DATA LIST.
Is the indicator ON?
YES - Go to the PGM-FI system symptom troubleshooting.
NO - Go to step 29.
20. Check the immobilizer indicator.
Does the indicator come on?
YES - Go to the PGM-FI system symptom troubleshooting.
NO - Go to step 21.
21. Select GAUGES from the BODY ELECTRICAL system select menu with the HDS.
22. Select FUNCTION TEST from the TEST MODE menu with the HDS, and enter SELF TEST.
Does the immobilizer indicator come on?
YES - Go to the PGM-FI system troubleshooting.
NO - Replace the gauge control module. Service and Repair
23. Select KEYLESS ACCESS CONTROL UNIT from the ONE-PUSH START SYSTEM system select menu with the HDS, and enter DATA LIST.
24. Check the ESL SW B in the DATA LIST.
Is the indicator ON?
YES - Go to step 25.
NO - Go to step 33.
25. Press the engine start/stop button to select the OFF mode.
26. Disconnect the remote slot control unit 40P connector.
27. Disconnect the electric steering lock 12P connector.

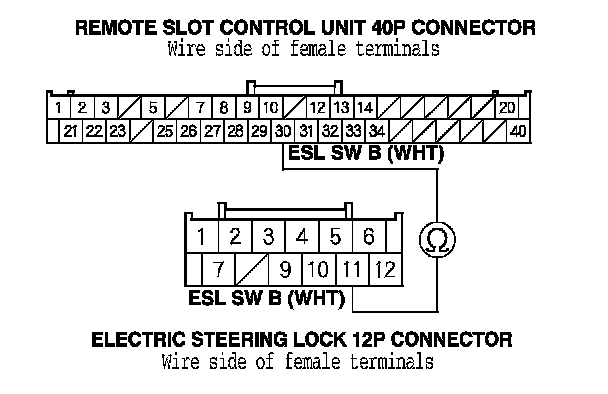

28. Check for continuity between electric steering lock 12P connector terminal No. 11 and remote slot control unit 40P connector terminal No. 30.
Is there continuity?
YES - Replace the remote slot control unit. Testing and Inspection
NO - Repair open in the wire.
29. Press the engine start/stop button to select the OFF mode.
30. Disconnect keyless access control unit connector C (5P).
31. Disconnect the electric steering lock 12P connector.

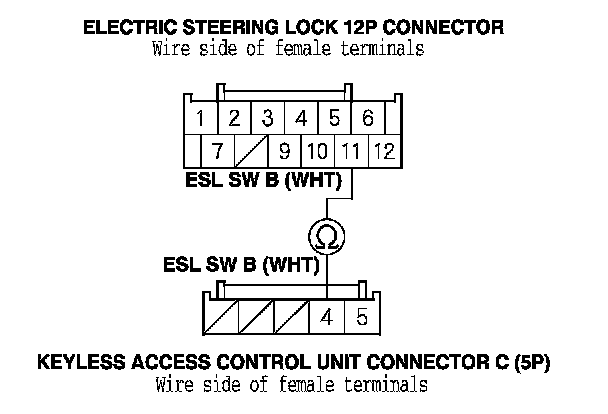

32. Check for continuity between electric steering lock 12P connector terminal No. 11 and keyless access control unit connector C (5P) terminal No. 4.
Is there continuity?
YES - Replace the keyless access control unit. Testing and Inspection
NO - Repair open in the wire.
33. Press the engine start/stop button to select the OFF mode.
34. Disconnect the remote slot control unit 40P connector.
35. Disconnect the electric steering lock 12P connector.
36. Check for continuity between electric steering lock 12P connector terminal No. 11 and remote slot control unit 40P connector terminal No. 30.
Is there continuity?
YES - Replace the remote slot control unit. Testing and Inspection
NO - Repair open in the wire.
