Driver's Power Seat Adjustment Switch Test/Replacement

Driver's Power Seat Adjustment Switch Test/Replacement

1. Remove the driver's seat. Front Seat Removal/Installation

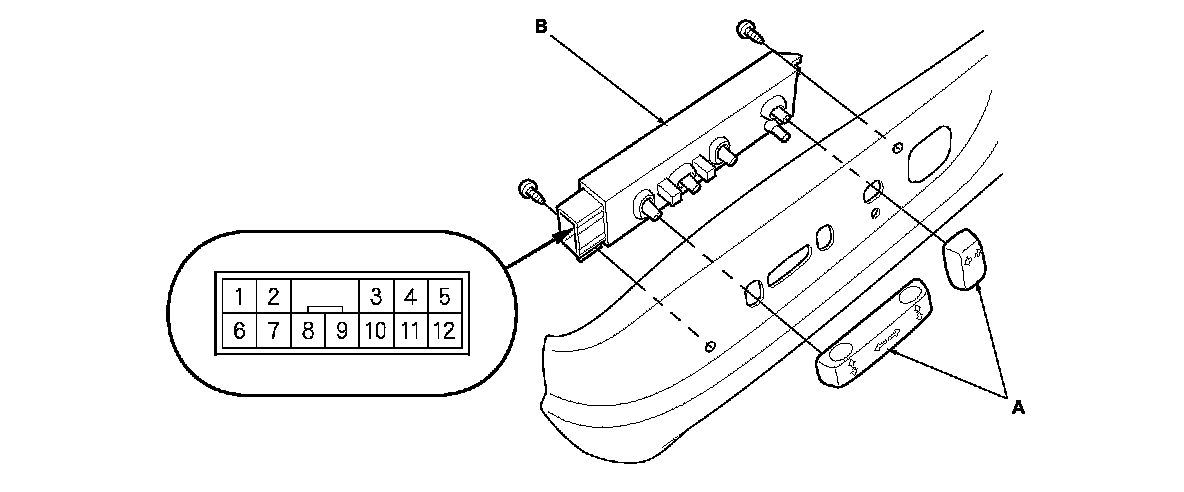

2. Remove the power seat adjustment switch knobs (A) and the recline cover from the driver's seat, Front Seat Recline Cover Removal/Installation then remove the two screws and the power seat adjustment switch (B).

3. Disconnect the 12P connector from the power seat adjustment switch.

4. Reinstall the adjustment switch knobs to the switch.

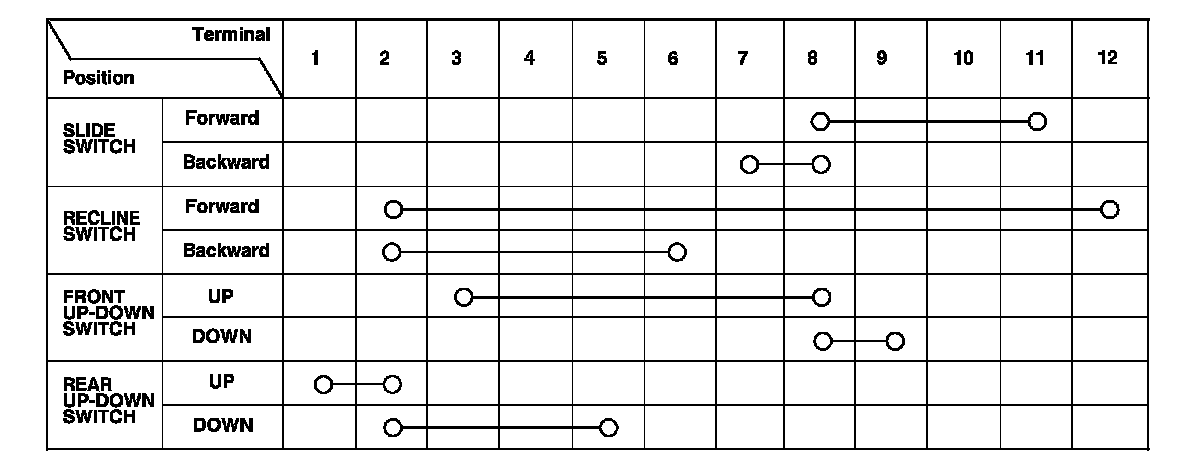

5. Check for continuity between the terminals in each position according to the table.

6. If the continuity is not as specified, replace the switch.
