Clockspring Assembly / Spiral Cable: Service and Repair

Cable Reel Replacement

Removal

1. Make sure the front wheels are aligned straight ahead.

2. Do the battery terminal disconnection procedure Procedures, then wait at least 3 minutes.

3. Remove the driver's airbag. Driver's Airbag Replacement

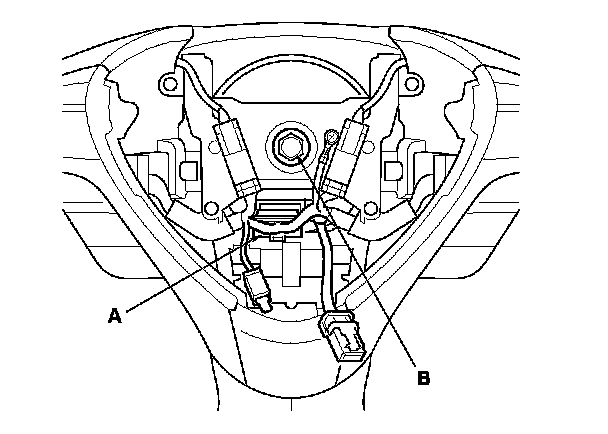

4. Disconnect the 20P connector (A) from the cable reel, then remove the steering wheel bolt (B).

5. Confirm that the front wheels point straight ahead, then remove the steering wheel with a steering wheel puller. Steering Wheel RemovalDo not tap on the steering wheel or steering column shaft when removing the steering wheel.

6. Remove the column cover. Service and Repair

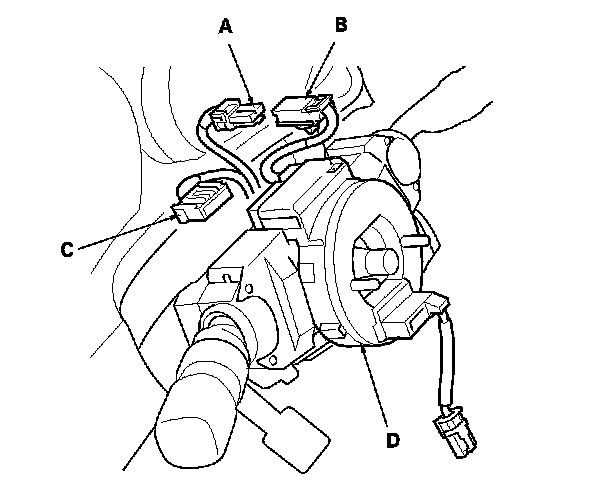

7. Disconnect the dashboard wire harness 4P connector (A) from the cable reel 4P connector (B), then disconnect the dashboard wire harness 20P connector (C) from the cable reel (D).

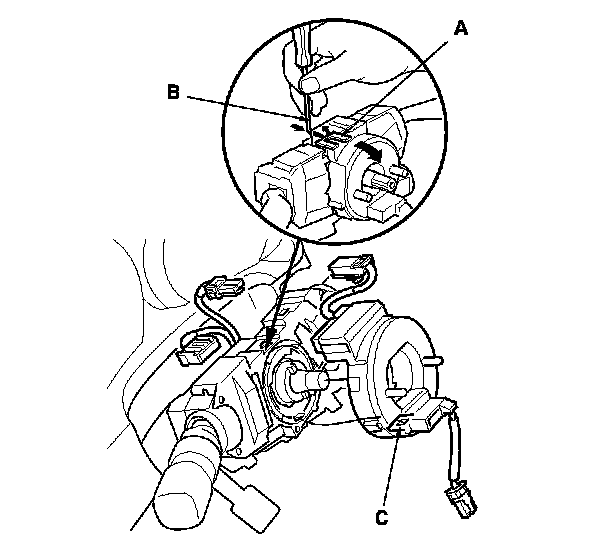

8. Release the lock tab (A) under the cable reel connector with a 90 ° hook shaped tool (B). Slide the tool below the cable reel connector just above the lock tab. Release the lower lock tab (C), and slide the cable reel off the column.






Installation

1. Before installing the steering wheel, make sure the front wheels are aligned straight ahead.

2. If not already done, disconnect the negative cable from the battery, then wait at least 3 minutes.

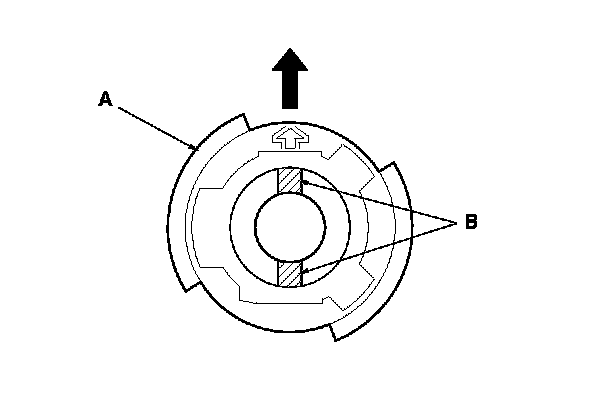

3. Set the turn signal canceling sleeve (A) so that the projections (B) are aligned vertically.

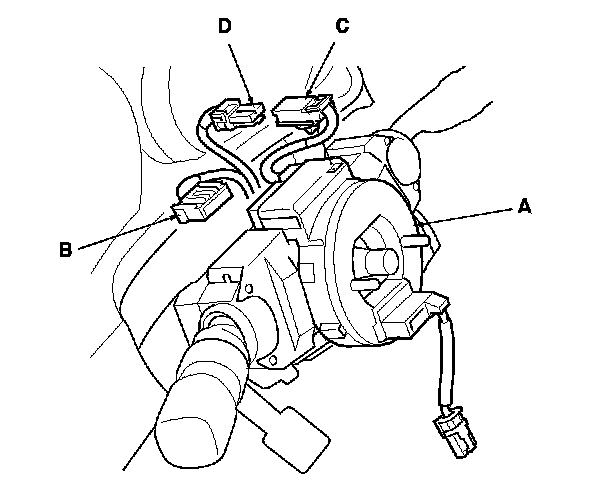

4. Carefully install the cable reel (A) on the steering column shaft. Then connect 20P connector (B) to the cable reel, and connect the 4P connector (C) to the dashboard wire harness 4P connector (D).

5. Install the steering column covers. Service and Repair

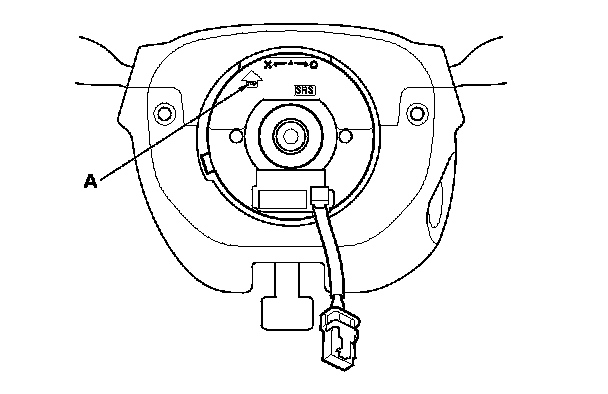

6. If necessary, center the cable reel (New replacement cable reels come centered.). Do this by first rotating the cable reel clockwise until it stops. Then rotate it counterclockwise (about three turns) until the arrow mark (A) on the cable reel label points straight up.






7. Position the two tabs (A) of the turn signal canceling sleeve (B) as shown, and install the steering wheel on to the steering column shaft, making sure the steering wheel hub (C) engages the pins (D) of the cable reel and tabs of the turn signal canceling sleeve. Do not tap on the steering wheel or steering column shaft when installing the steering wheel.

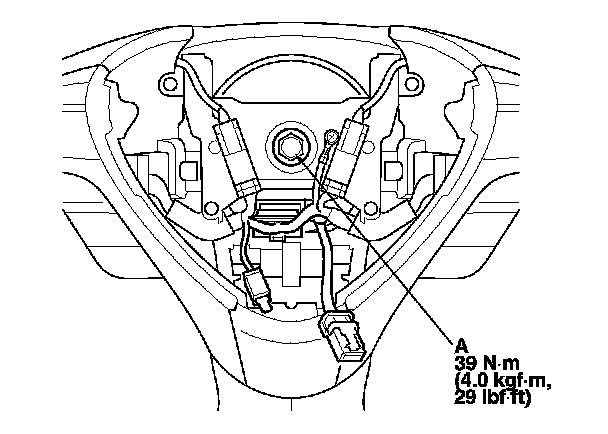

8. Install and torque the steering wheel bolt (A), then reconnect the 20P connector.

9. Install the driver's airbag. Driver's Airbag Replacement

10. Do the battery terminal reconnection procedure. Procedures

11. Clear any DTCs. Initial Inspection and Diagnostic Overview

12. After installing the cable reel, confirm proper system operation:
- Turn the ignition switch to ON (II), or press the engine start/stop button to select the ON mode; the SRS indicator should come on for about 6 seconds and then go off.

- After the SRS indicator has turned off, turn the steering wheel fully left and right to confirm the SRS indicator does not come on.

- Make sure the horn and turn signal switches work properly.

- Make sure the steering wheel switches work properly.
