Footwell Light Replacement

Footwell Light Replacement

Driver's

1. Remove the driver's dashboard undercover. Driver's Dashboard Undercover Removal/Installation

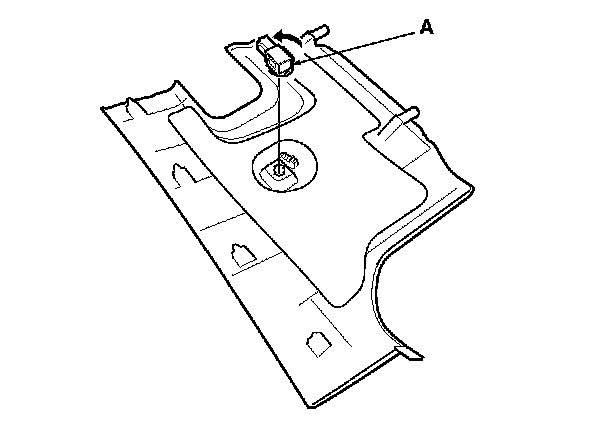

2. Remove the footwell light (A) from the driver's dashboard undercover.

3. Install the light in the reverse order of removal.






Front Passenger's

1. Remove the passenger's dashboard undercover. Passenger's Dashboard Undercover Removal/Installation

2. Remove the footwell light (A) from the passenger's dashboard undercover.

3. Install the light in the reverse order of removal.
