Engine Oil Pan Installation

Engine Oil Pan Installation

1. Remove all of the old liquid gasket from the oil pan mating surfaces, the bolts, and the bolt holes.

2. Clean and dry the oil pan mating surfaces.

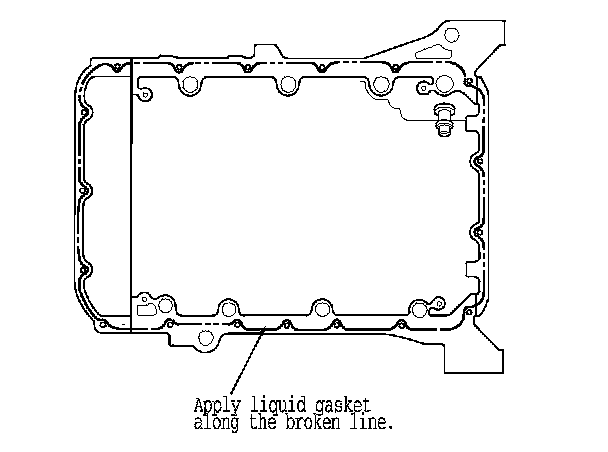

3. Apply liquid gasket, P/N 08717-0004, 08718-0001, 08718-0003, or 08718-0009, evenly to the oil pan mating surface of the engine block and to the inside edge of the threaded bolt holes. Install the component within 5 minutes of applying the liquid gasket.
NOTE:

- If you apply liquid gasket P/N 08718-0012, the component must be installed within 4 minutes.

- If too much time has passed after applying the liquid gasket, remove the old liquid gasket and residue, then reapply the new liquid gasket.

4. Install the oil pan on the engine block.

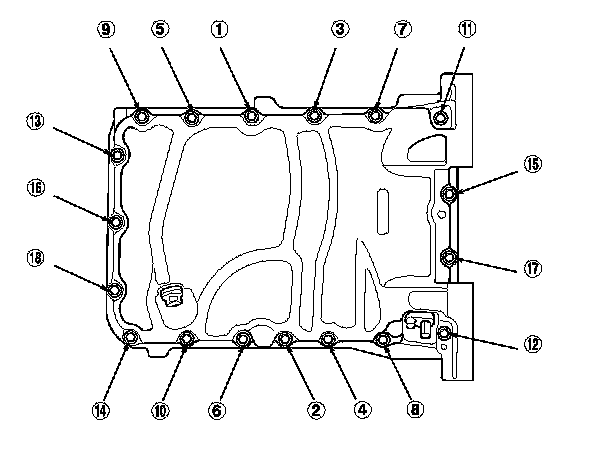

5. Tighten the bolts in three steps. In the final step, tighten all bolts, in sequence, to 12 N-m(1.2 kgf-m, 8.7 lbf-ft).
NOTE:

- Wait at least 30 minutes before filling the engine with oil.

- Do not run the engine for at least 3 hours after installing the oil pan.





6. Tighten the four bolts (A) securing the transmission, then install the torque converter cover (B).

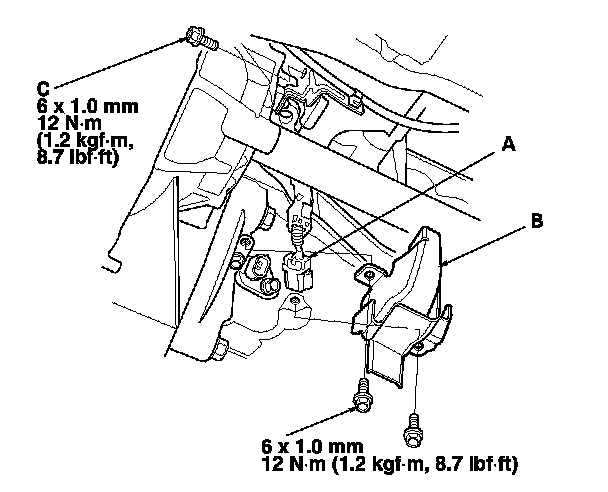

7. Connect the crankshaft position (CKP) sensor connector (A), then install the CKP sensor cover (B) and the bolt (C).






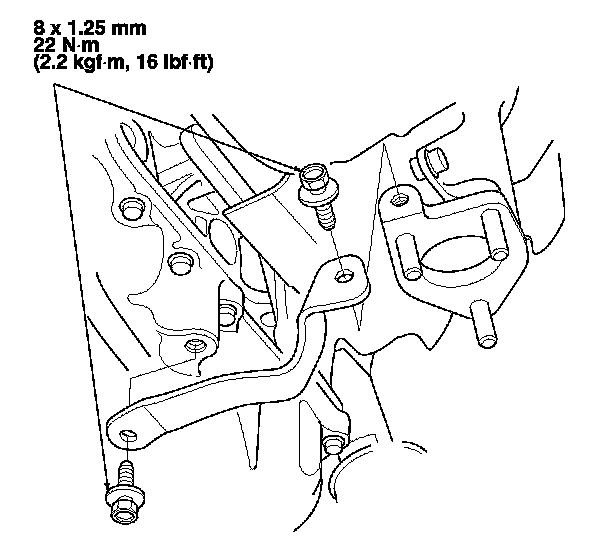

8. Install the rear warm up three way catalytic converter (rear WU-TWC) bracket.

9. If the engine is still in the vehicle, do the following steps.

10. Install exhaust pipe A using new gaskets and new self-locking nuts. Engine Installation

11. Install the splash shield. Front Splash Shield Replacement

12. Refill the engine with the recommended engine oil. Service and Repair
