Global Positioning System Antenna: Service and Repair

GPS Antenna Removal/Installation

NOTE:

- Put on gloves to protect your hands.

- Take care not to scratch the dashboard and related parts.

- Lay a shop towel under the parts when working on them to protect the face panel from scratches or other damage.

1. Pull out the audio-navigation unit. Audio-Navigation Unit Removal/Installation (With Navigation)

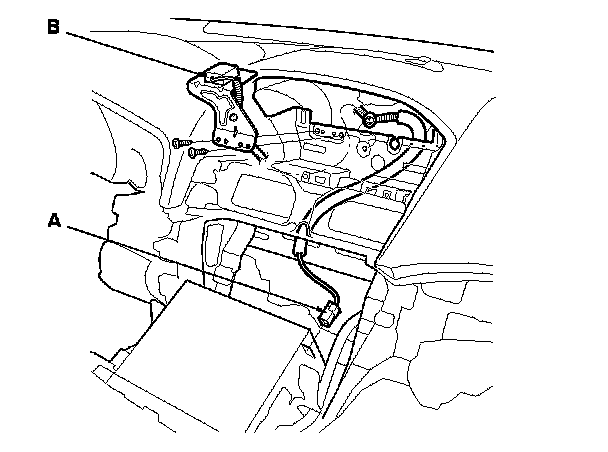

2. Disconnect audio-navigation unit connector J (A).

3. Remove the screws and detach the clip, then remove the GPS antenna (B).

4. Install the GPS antenna in the reverse order of removal.
