SRS DTC Troubleshooting: 32-1x (x can be 0 thru 9 or A thru F)

DTC 32-1x ("x" can be 0 thru 9 or A thru F):Open in the Front Passenger's Side Airbag Inflator

Special Tools Required

- SRS inflator simulator 07SAZ-TB4011A
- SRS simulator lead L 070AZ-SNAA300
NOTE:

- Before doing this troubleshooting procedure, review SRS Precautions and Procedures, Service and Repair General Troubleshooting Information, Initial Inspection and Diagnostic Overview and Battery Terminal Disconnection and Reconnection. Procedures

- Before replacing the SRS unit, check the SRS unit software version with the HDS. If the software version is not the latest, update the SRS unit software, SRS Unit Update and retest.

1. Clear the DTC memory. Initial Inspection and Diagnostic Overview

2. Turn the ignition switch to ON (II), or press the engine start/stop button to select the ON mode, and check that the SRS indicator comes on for about 6 seconds and then goes off.

Does the SRS indicator stay on, and is DTC 32-1x indicated?
YES - Go to step 3.

NO - Intermittent failure, the system is OK at this time. Go to Troubleshooting Intermittent Failures. Initial Inspection and Diagnostic Overview If another DTC is indicated, troubleshoot the DTC.


3. Turn the ignition switch to LOCK (0), or press the engine start/stop button to select the OFF mode.

4. Disconnect the negative cable from the battery, then wait at least 3 minutes.

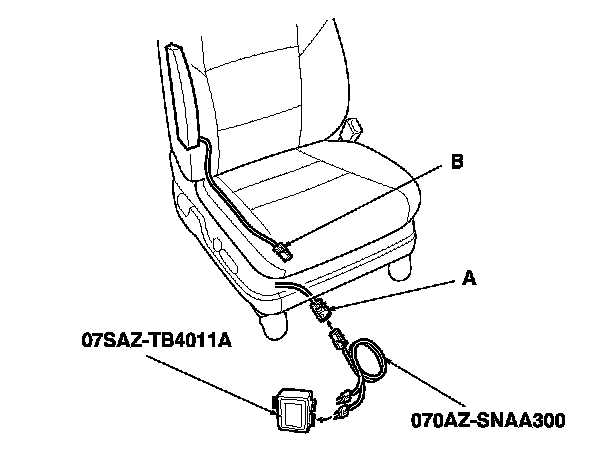

5. Disconnect the SRS floor wire harness 2P connector (A) from the front passenger's side airbag (B).

6. Connect the SRS inflator simulator (2 Ohms connectors) and simulator lead L to the SRS floor wire harness.






7. Reconnect the negative cable to the battery.

8. Clear the DTC memory.

9. Read the DTC. Initial Inspection and Diagnostic Overview

Is DTC 32-1x indicated?
YES - Go to step 10.

NO - Open in the front passenger's side airbag inflator; replace the front passenger's side airbag, Side Airbag Replacement then clear the DTC.


10. Turn the ignition switch to LOCK (0), or press the engine start/stop button to select the OFF mode.

11. Disconnect the negative cable from the battery, then wait at least 3 minutes.

12. Disconnect SRS unit connector B (39P) from the SRS unit. Service and Repair

13. Disconnect the SRS inflator simulator from the SRS simulator lead. Do not disconnect the simulator lead from the SRS floor wire harness 2P connector.

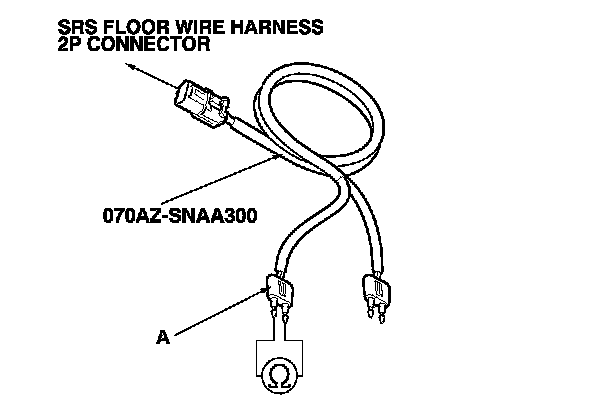

14. Measure the resistance between the terminals of the black SRS simulator lead (A). There should be less than 1.0 Ohms.

Is the resistance as specified?
YES - Faulty SRS unit or poor connection at SRS unit connector B (39P) and the SRS unit. Check the connection; if the connection is OK, replace the SRS unit. SRS Unit Replacement

NO - Open in the SRS floor wire harness; replace the SRS floor wire harness, then clear the DTC.
