Home >> Acura >> 2003 >> 3.2TL V6-3.2L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Fuel Tank Pressure Sensor >> Locations

Fuel Tank Pressure Sensor: Locations

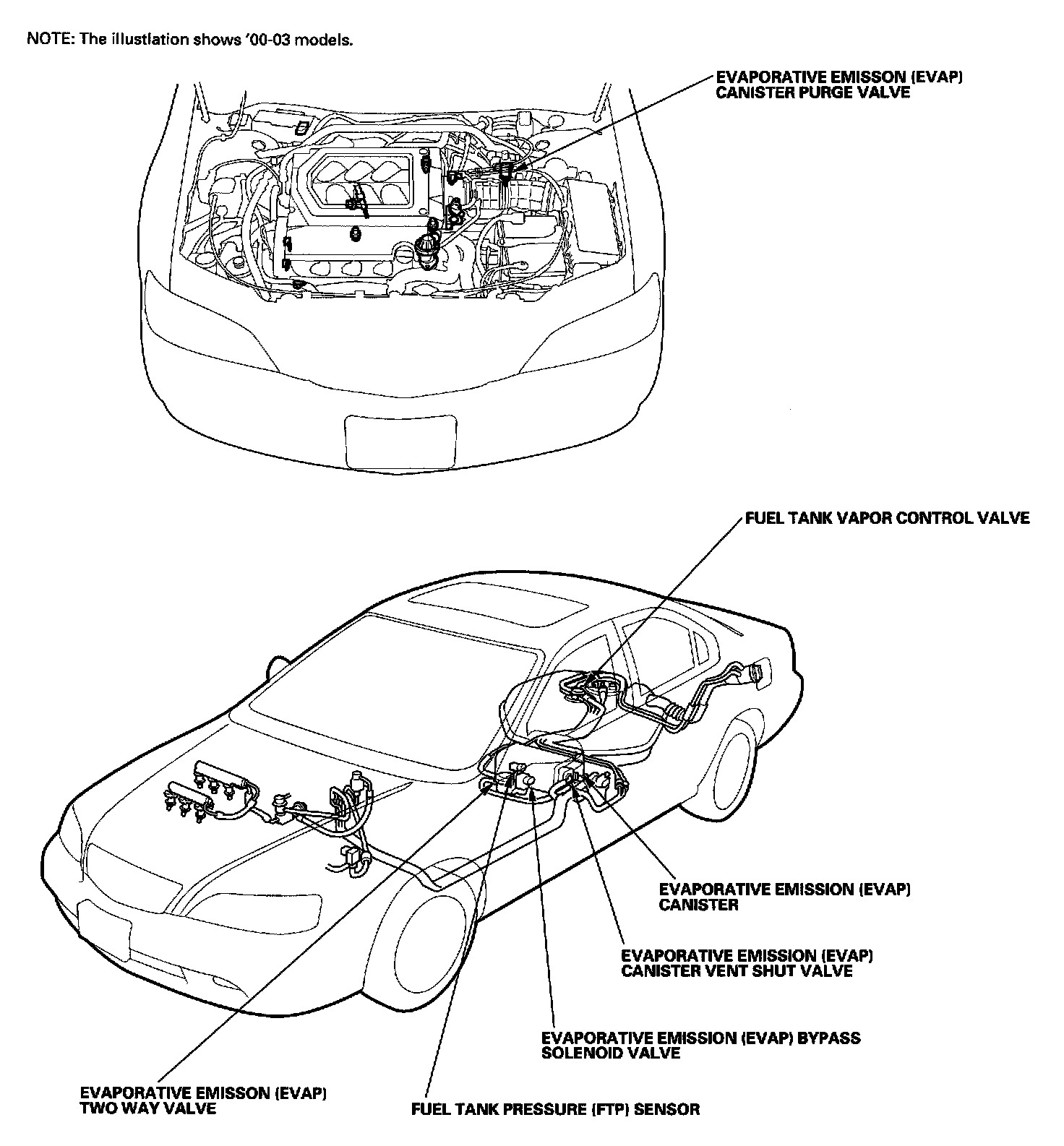

Evaporative Emission Control System - Component Location Index:

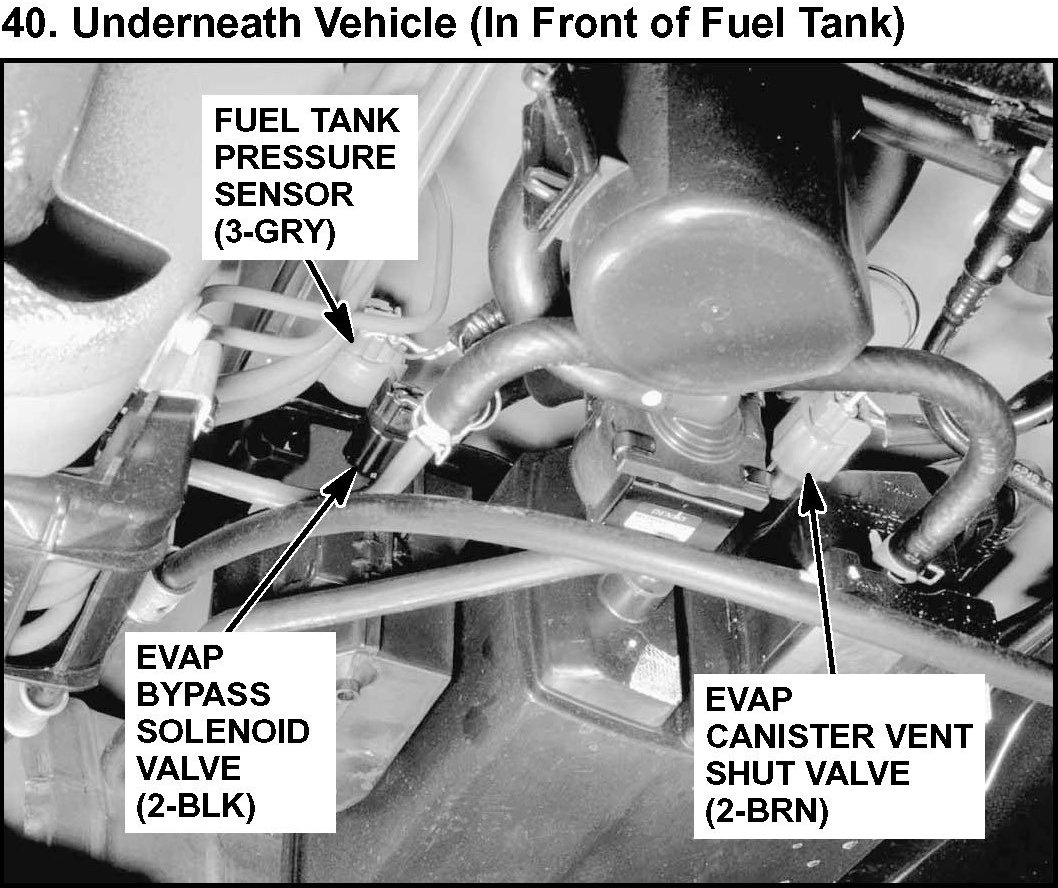

40. Underneath Vehicle (In Front Of Fuel Tank):
