Home >> Acura >> 2003 >> 3.2TL V6-3.2L SOHC >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Alarm Module >> Locations

Alarm Module: Locations

Relay And Control Unit Locations - Dashboard:

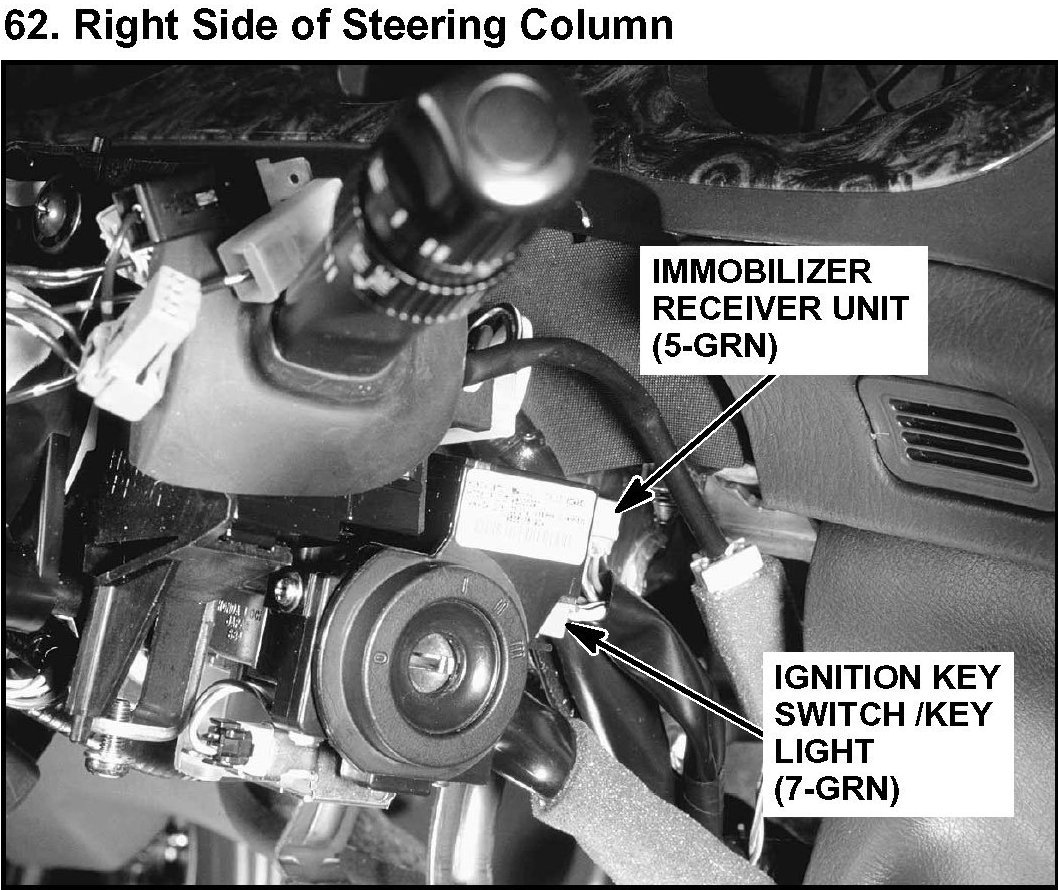

62. Right Side of Steering Column:
