Shift Interlock Relay
Shift Interlock Relay

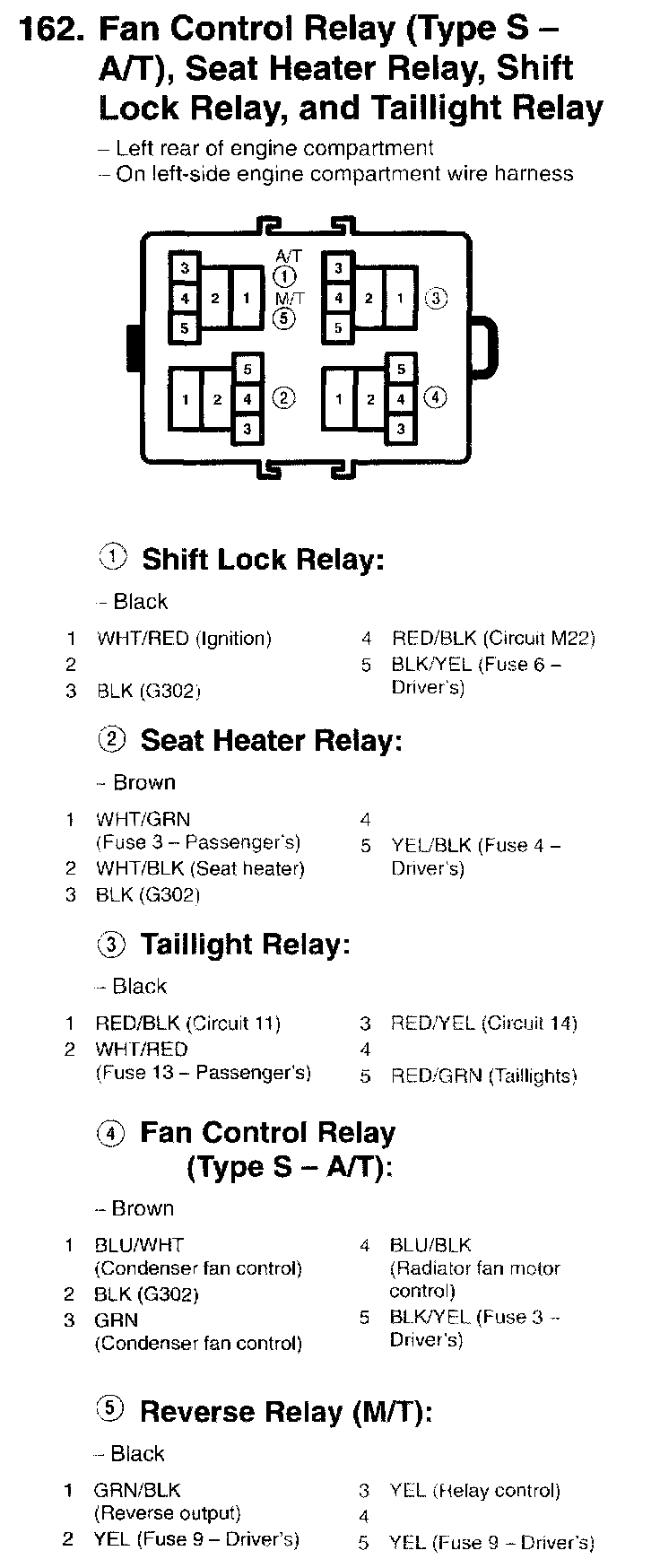

Fan Control Relay (Type S - A/T), Seat Heater Relay, Shift Lock Relay, And Taillight Relay:
