Home >> Acura >> 2003 >> 3.2CL V6-3.2L SOHC >> Repair and Diagnosis >> Body and Frame >> Mirrors >> Locations

Mirrors: Locations

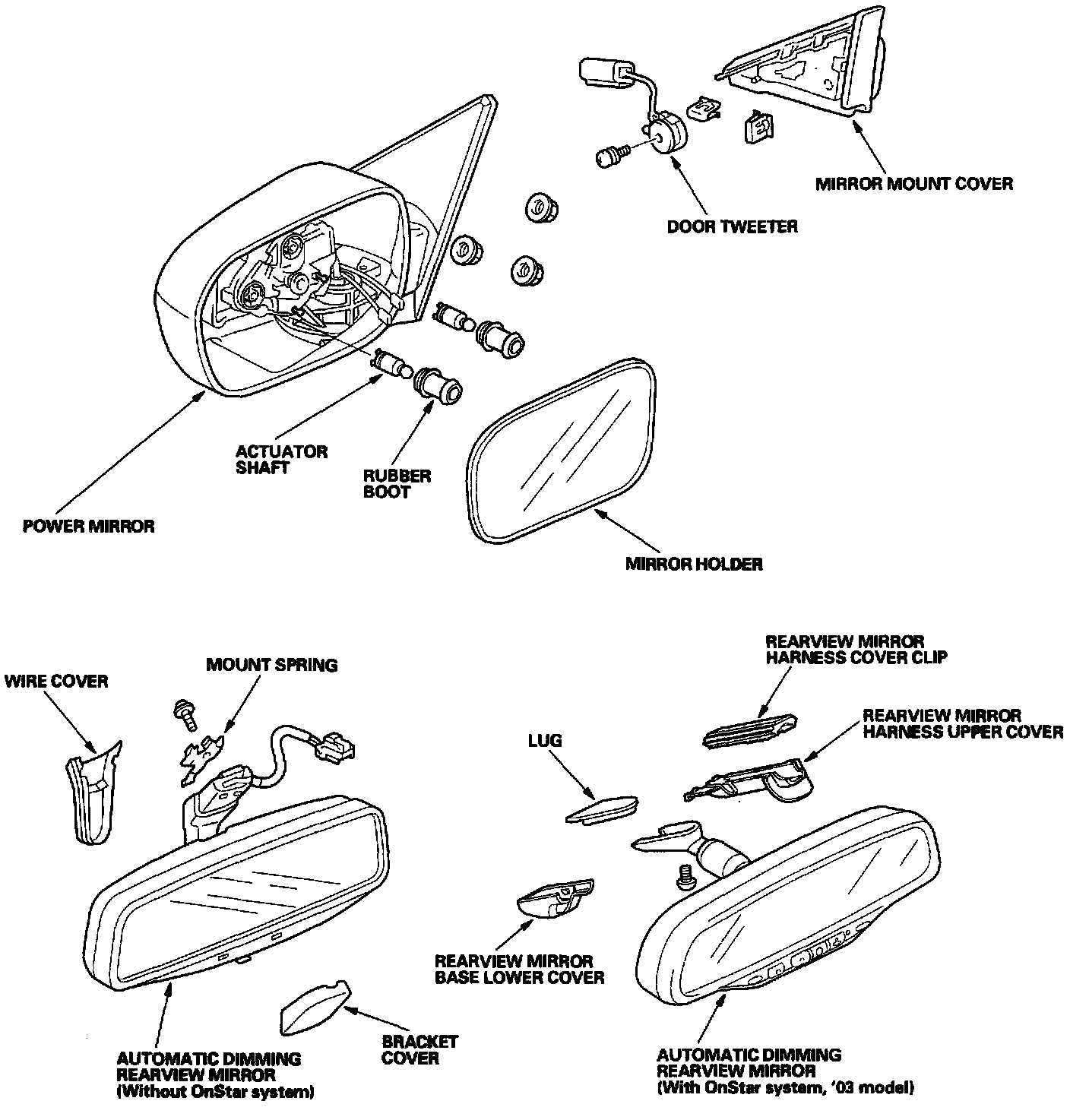

Mirror Component Location Index:

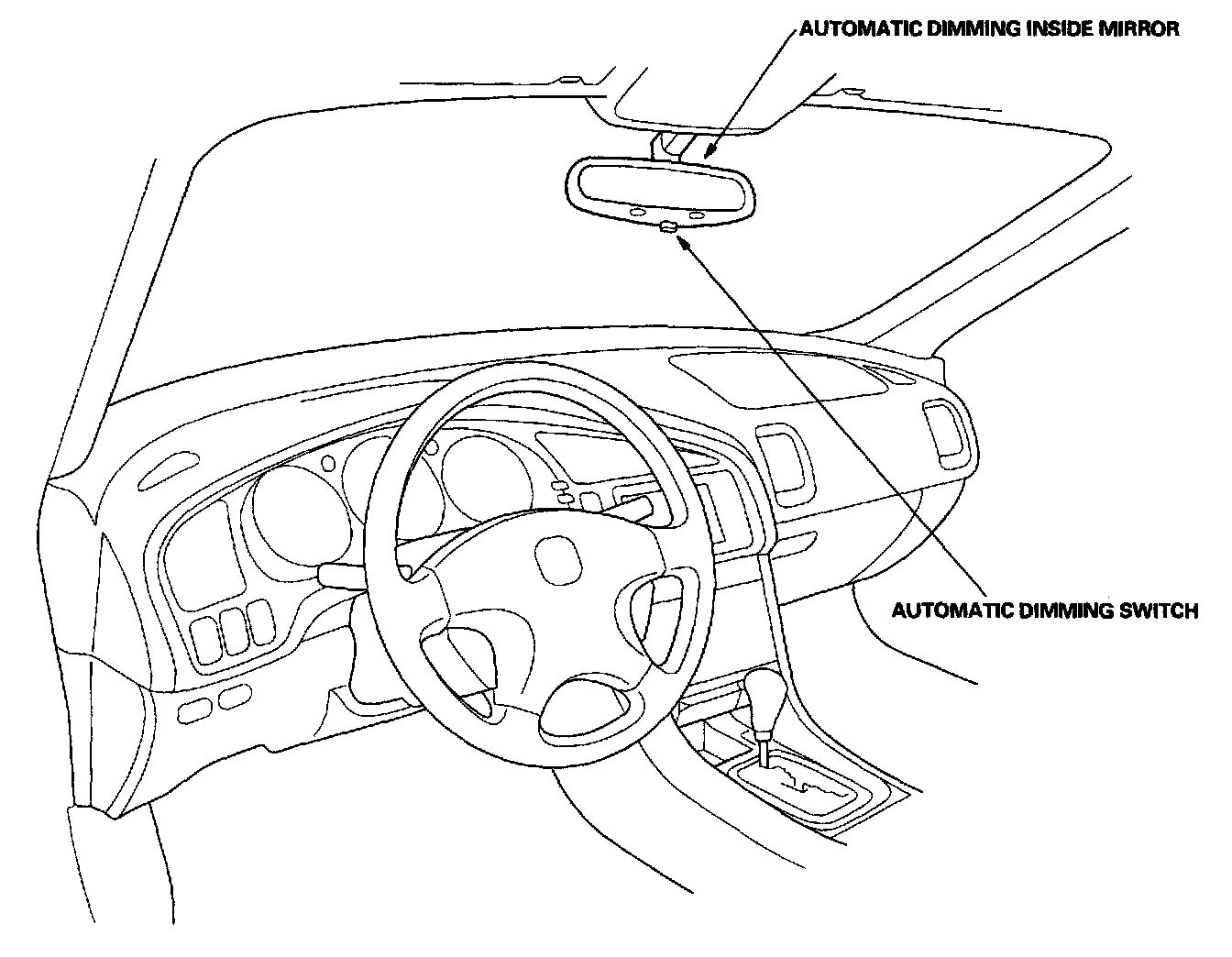

Automatic Dimming Inside Mirror Component Location Index:

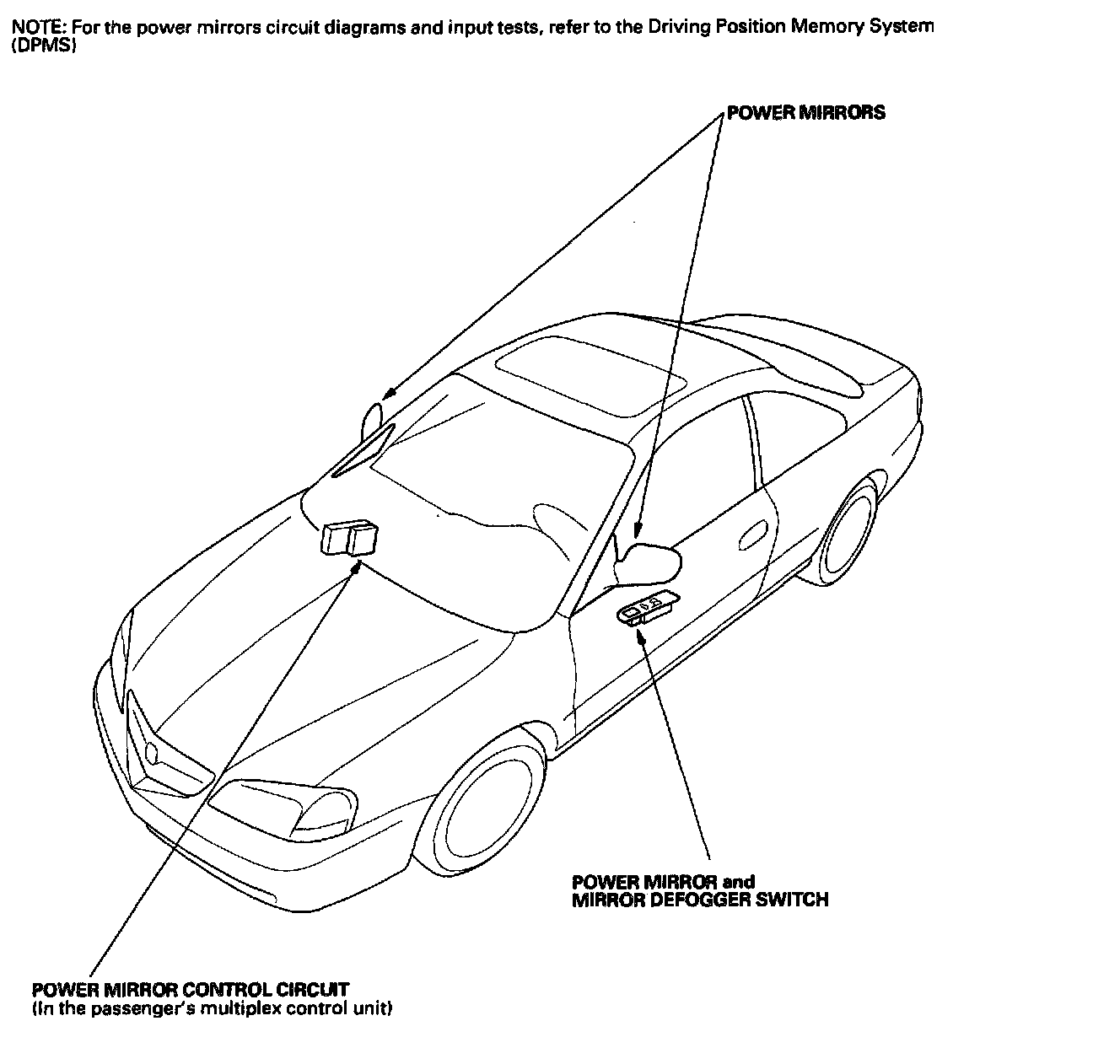

Power Mirrors Component Location Index:
