Keyless Entry: Locations

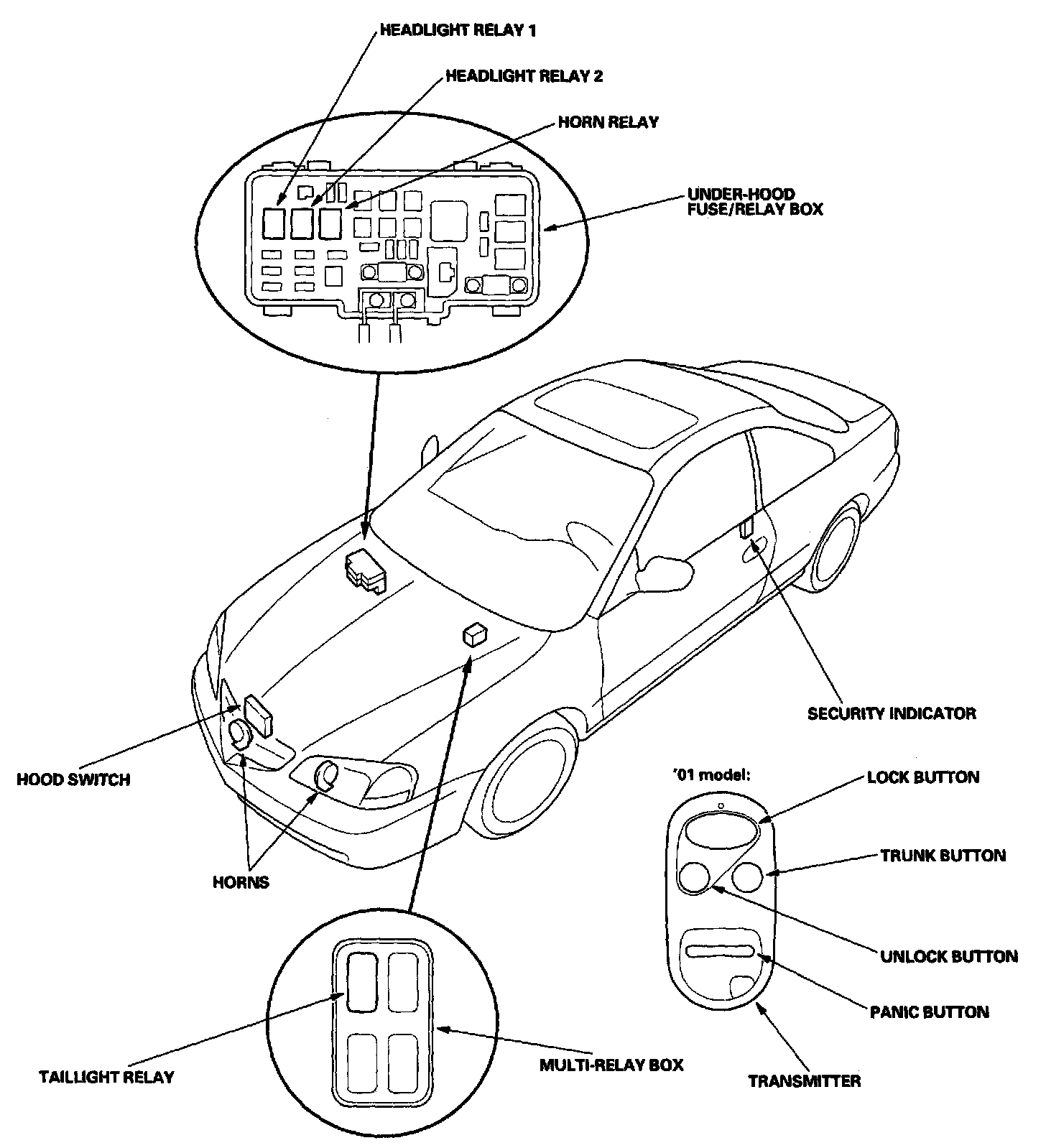

Keyless Entry/Security Alarm System Component Location Index:

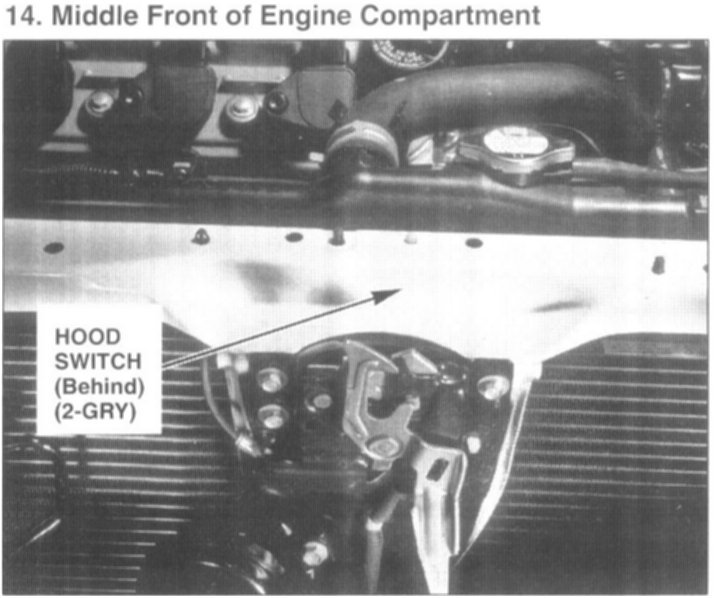

14. Middle Front of Engine Compartment:
