Home >> Acura >> 2002 >> CL V6-3.2L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Diagrams >> Connector Views

Connector Views

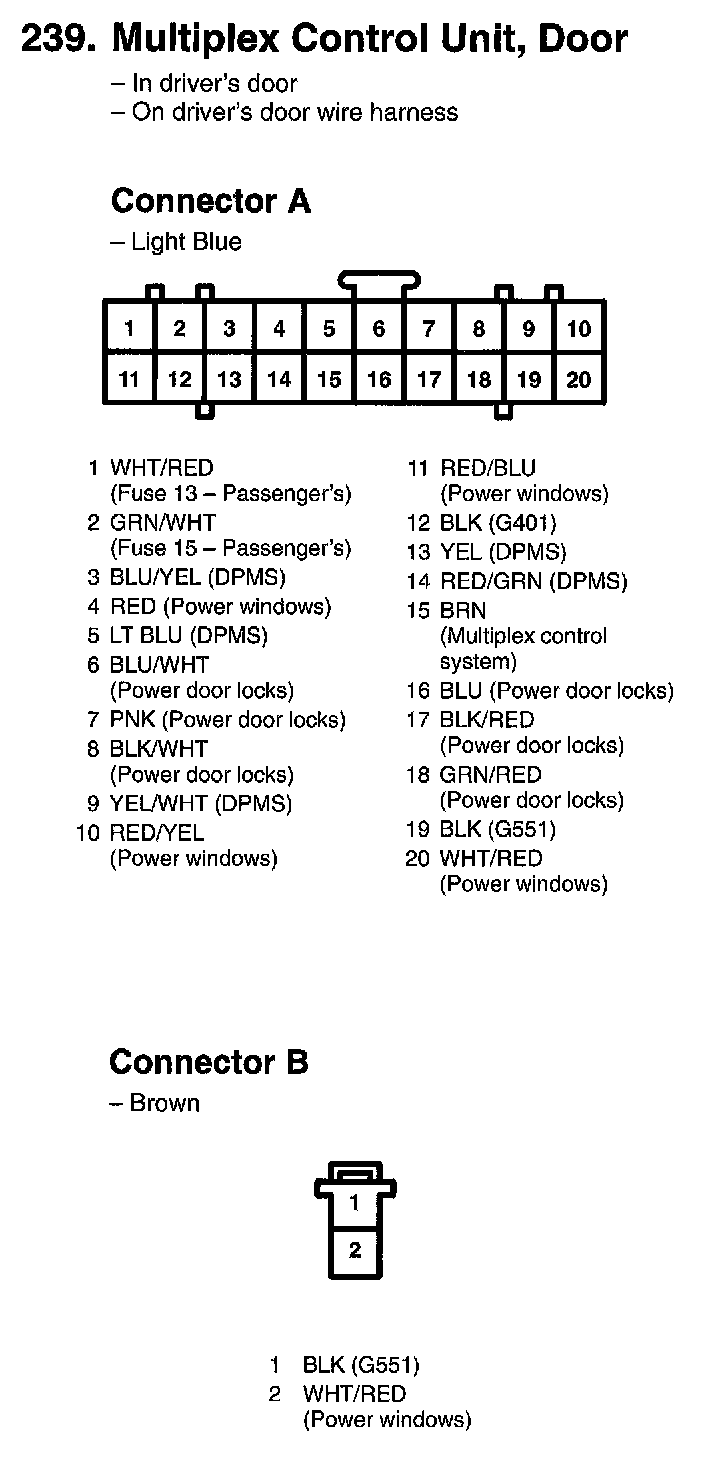

239. Multiplex Control Unit, Door:

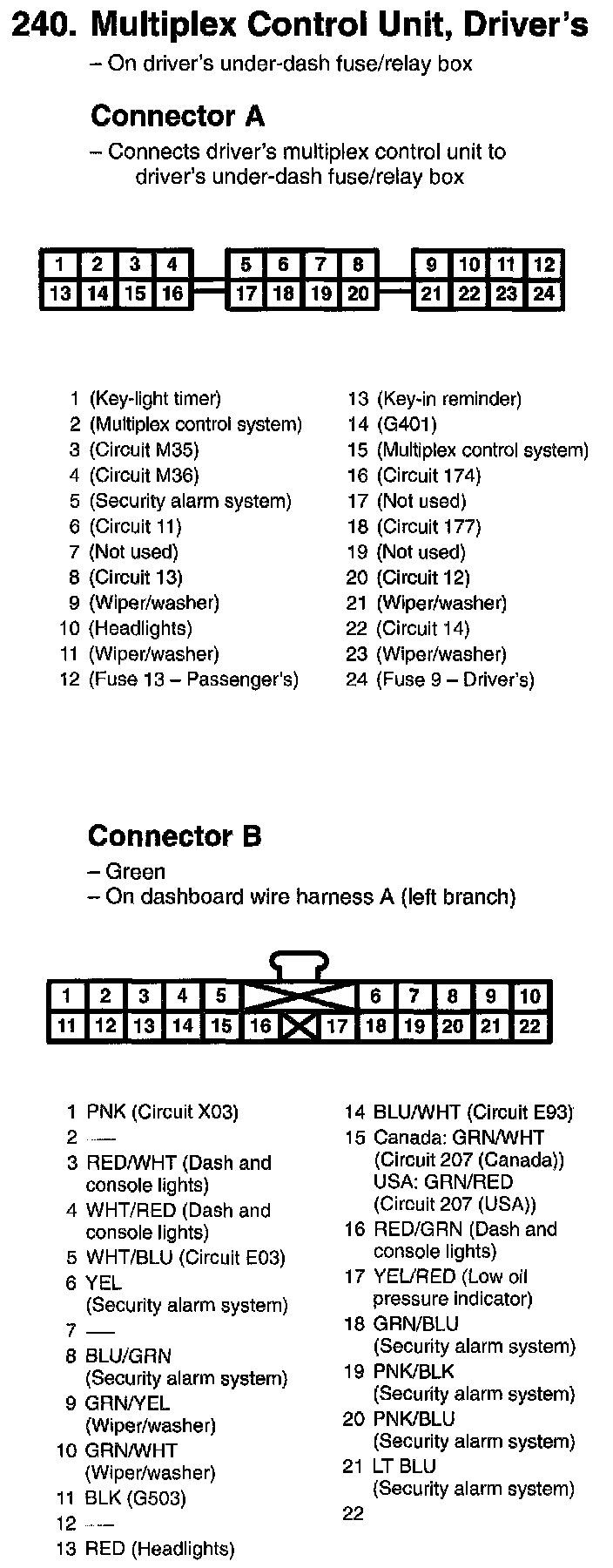

240. Multiplex Control Unit, Driver's:

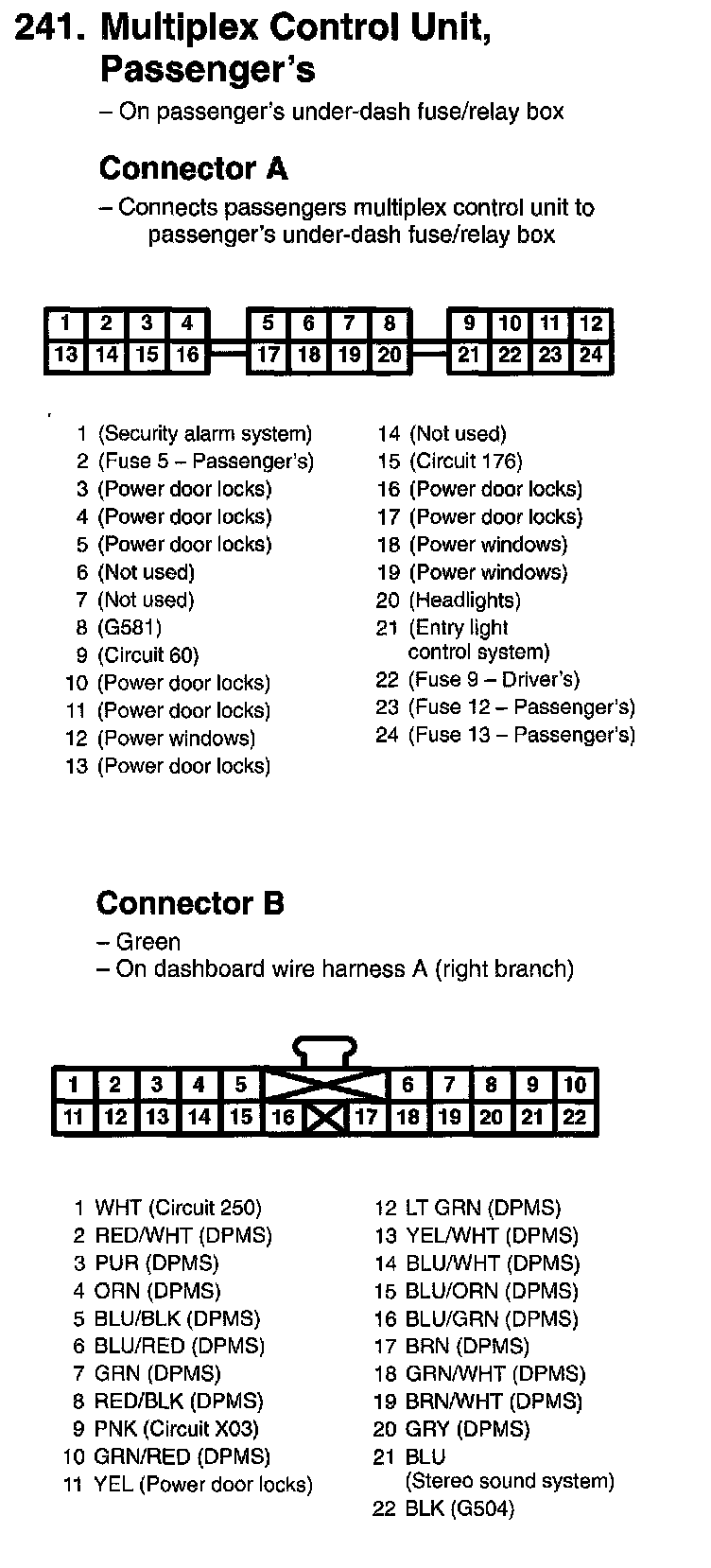

241. Multiplex Control Unit, Passenger's:
