Home >> Acura >> 2002 >> CL V6-3.2L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Fuel Tank Pressure Sensor >> Locations

Fuel Tank Pressure Sensor: Locations

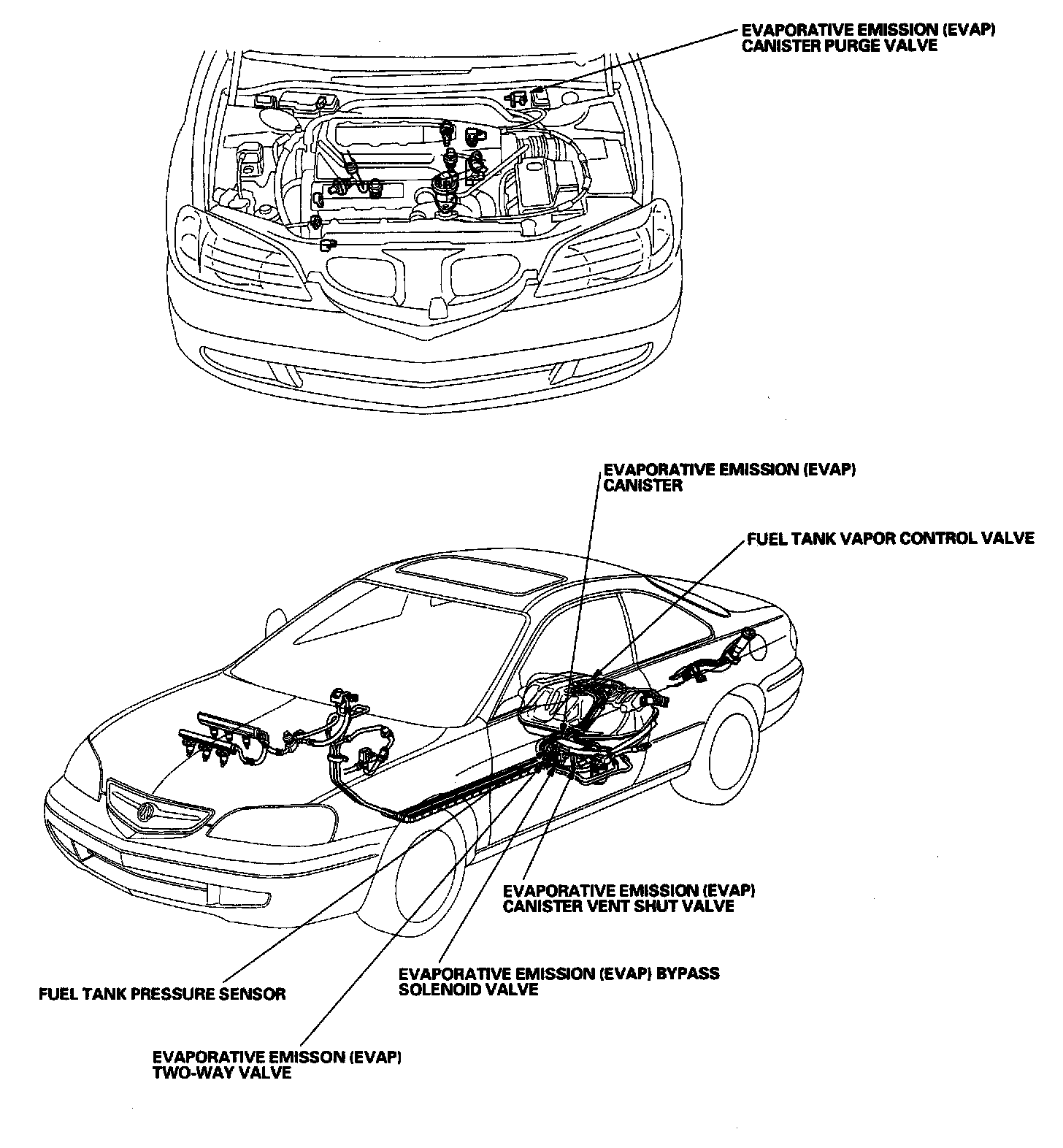

Evaporative Emission Control System - Component Location Index:

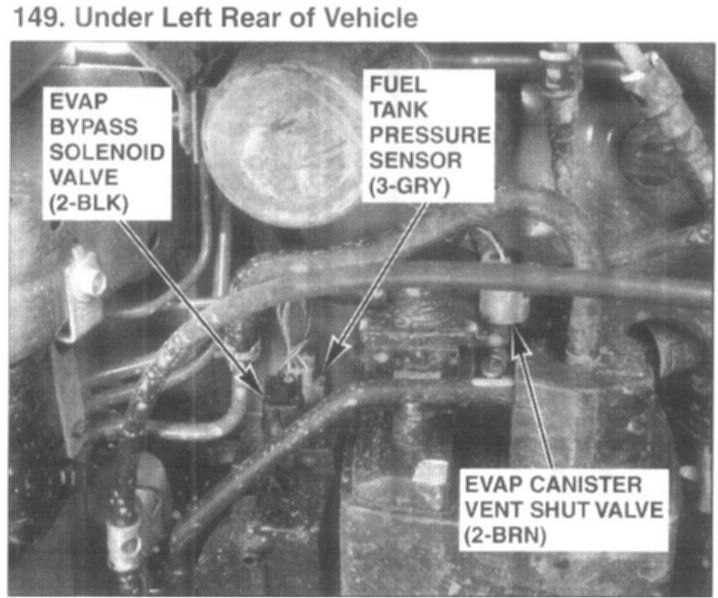

149. Under Left Rear of Vehicle:
