Home >> Acura >> 2002 >> CL V6-3.2L SOHC >> Repair and Diagnosis >> Locations >> Splice Locations >> Circuit X03

Circuit X03

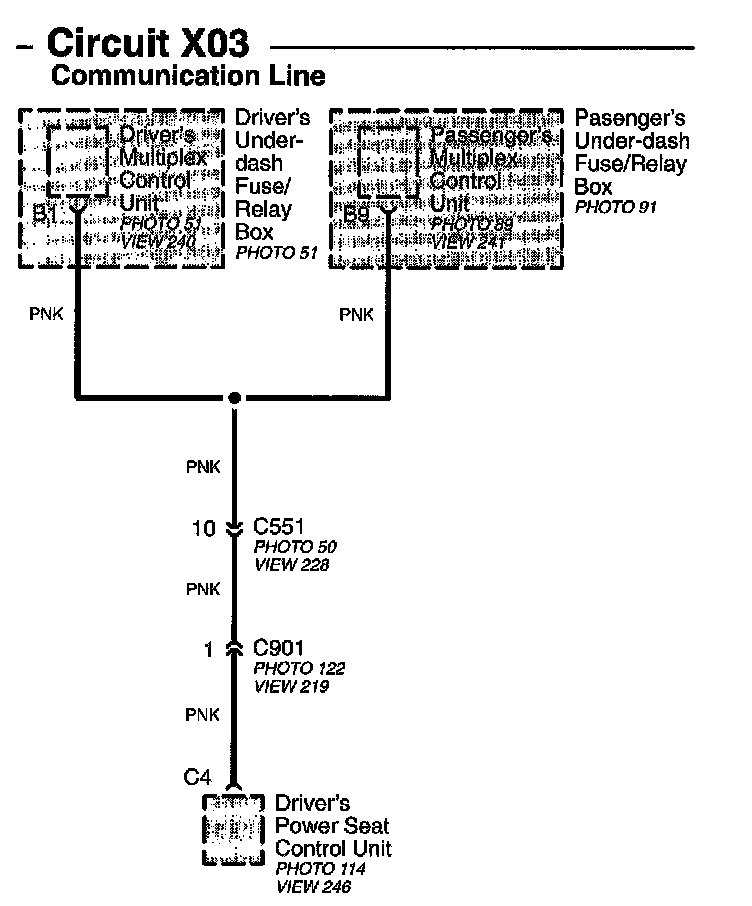

Circuit X03 - Communication Line Image 15-13d:
