Circuit F12

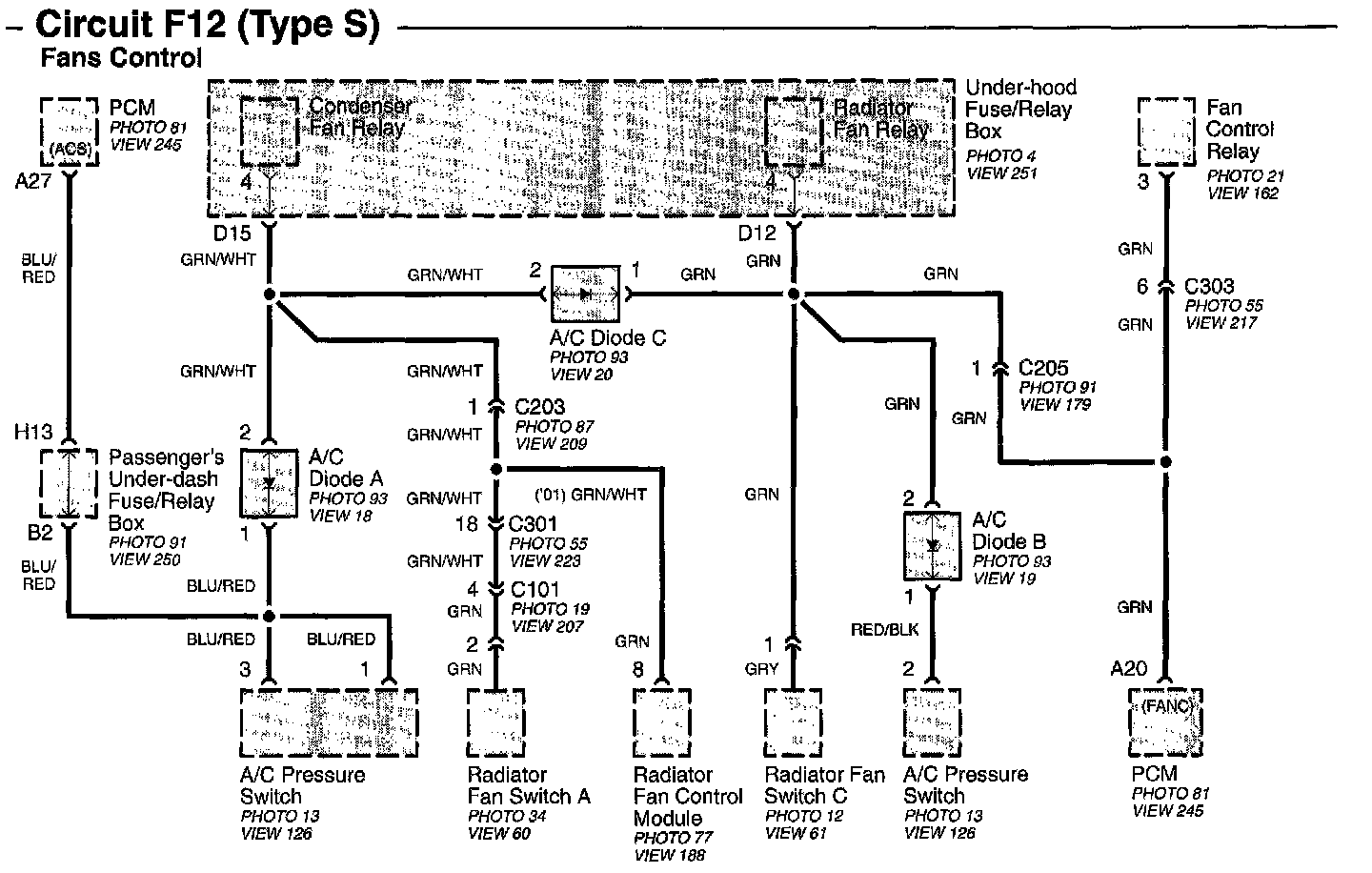

Circuit F12 (Type S) - Fans Control Image 15-10a:

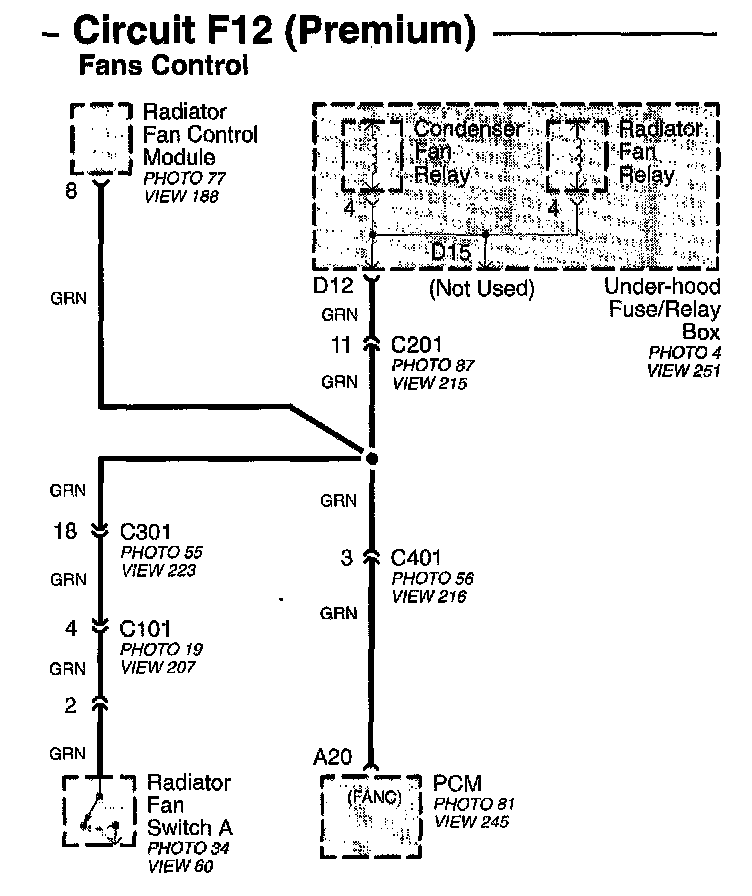

Circuit F12 (Premium)- Fans Control Image 15-10b:
