Circuit 207

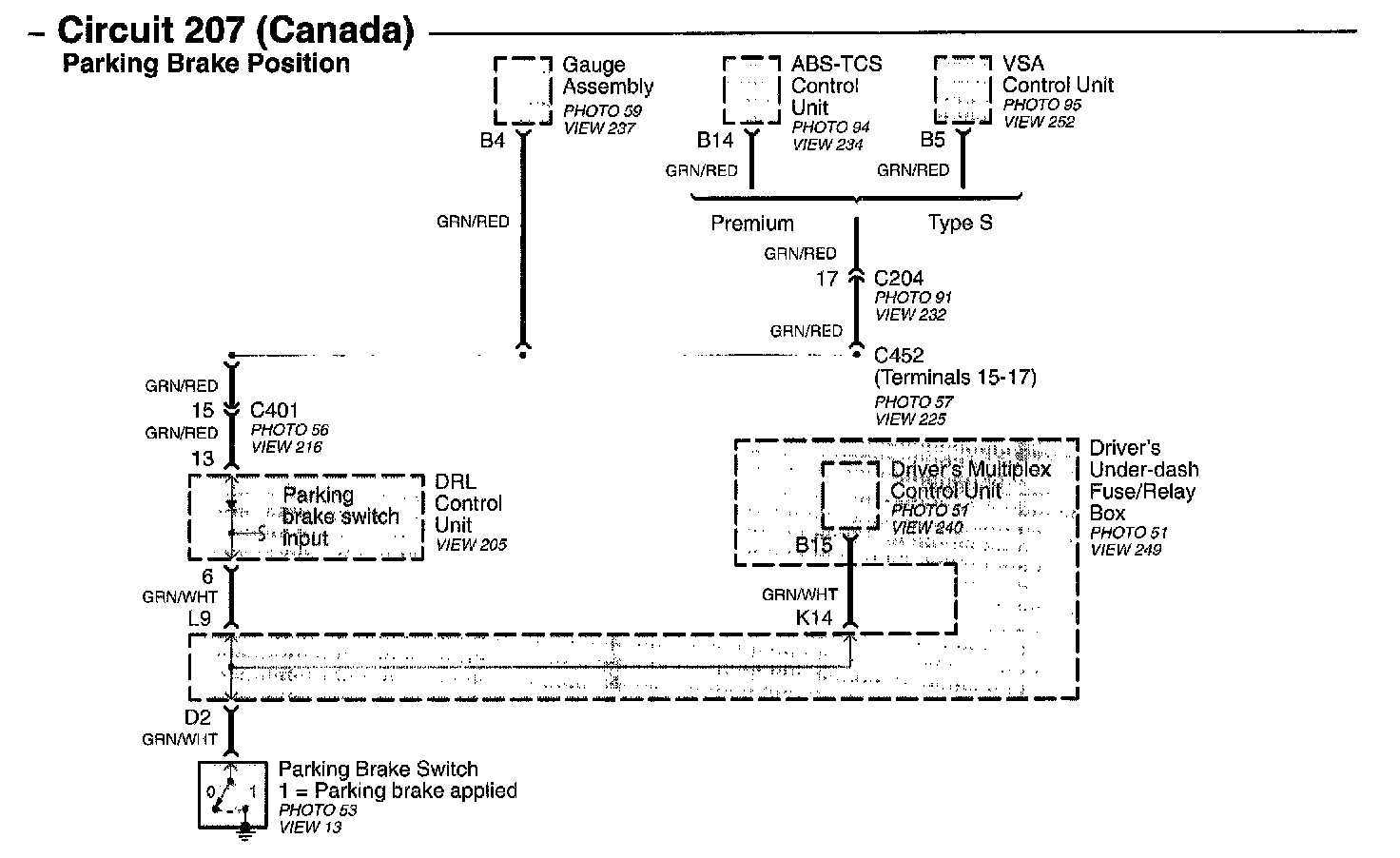

Circuit 207 (Canada) - Parking Brake Position:

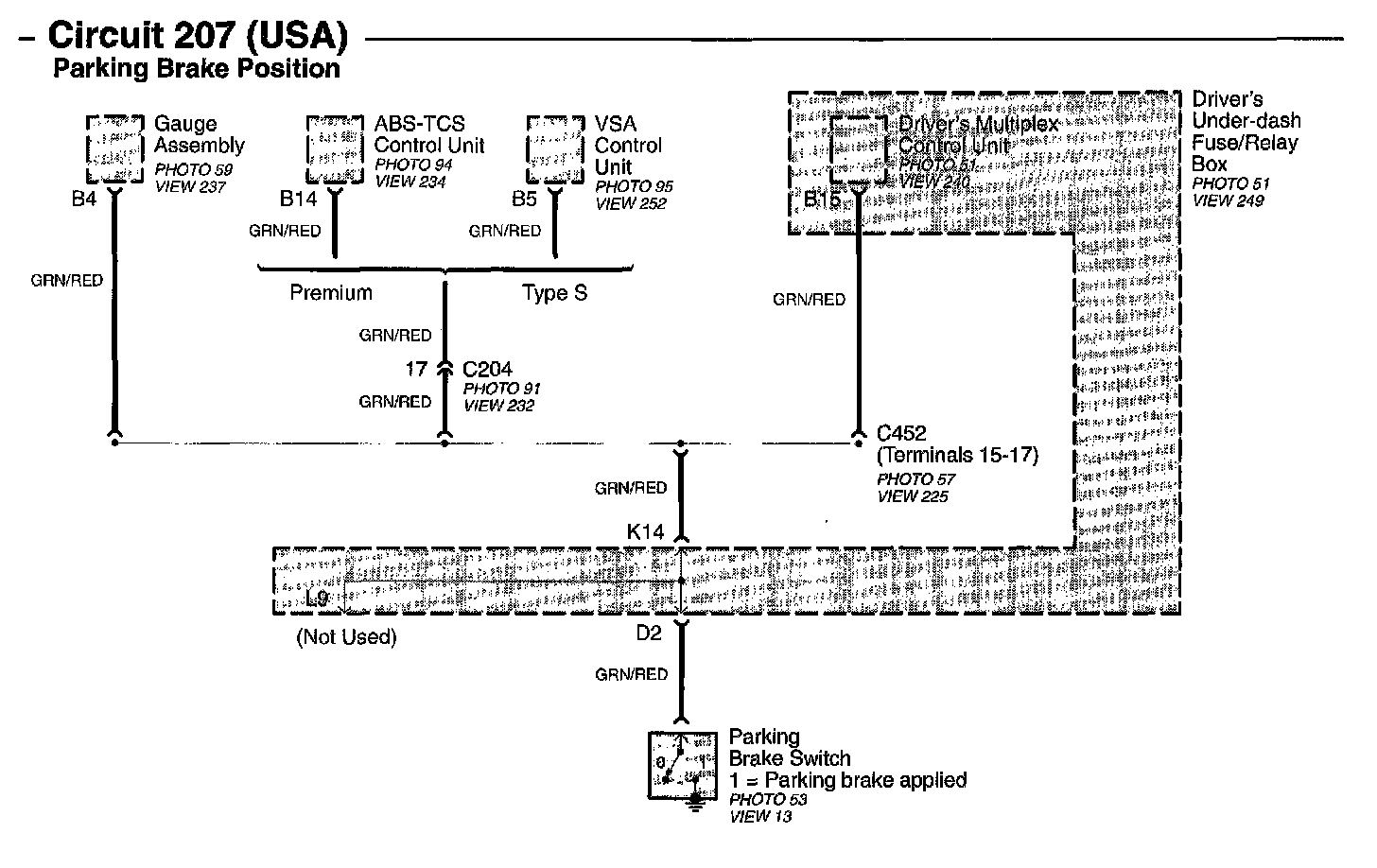

Circuit 207 (USA) - Parking Brake Position Image 15-7a:
