Home
>>
Acura
>>
2002
>>
CL V6-3.2L SOHC
>>
Repair and Diagnosis
>>
Locations
>>
Splice Locations
>>
Circuit 177
Circuit 177

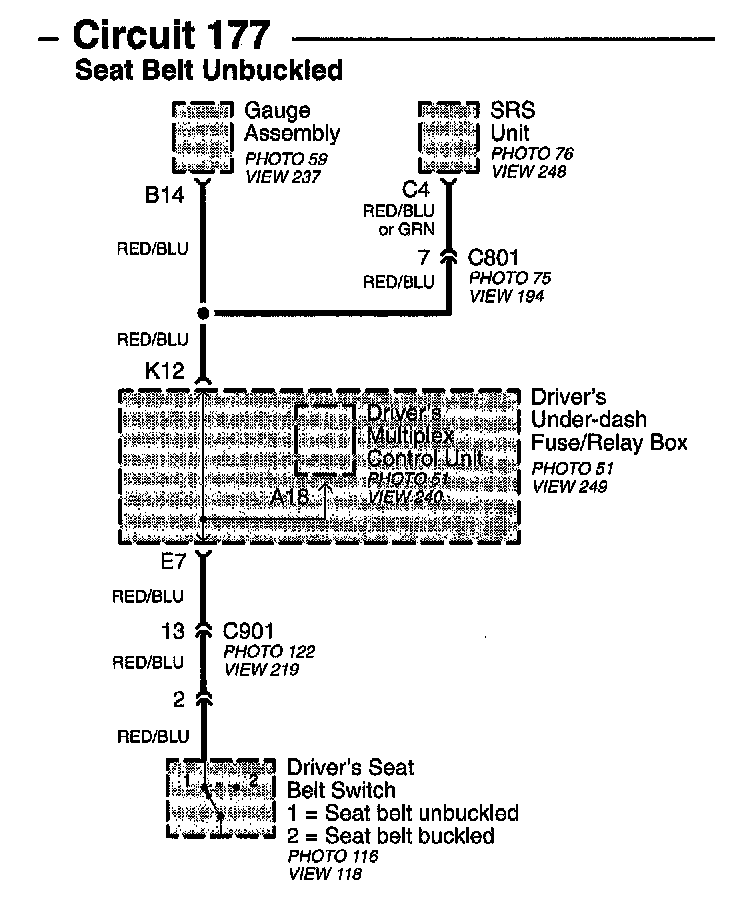

Circuit 177 - Seat Belt Unbuckled Image 15-5c:
