Home >> Acura >> 2002 >> CL V6-3.2L SOHC >> Repair and Diagnosis >> Locations >> Splice Locations >> Circuit 174

Circuit 174

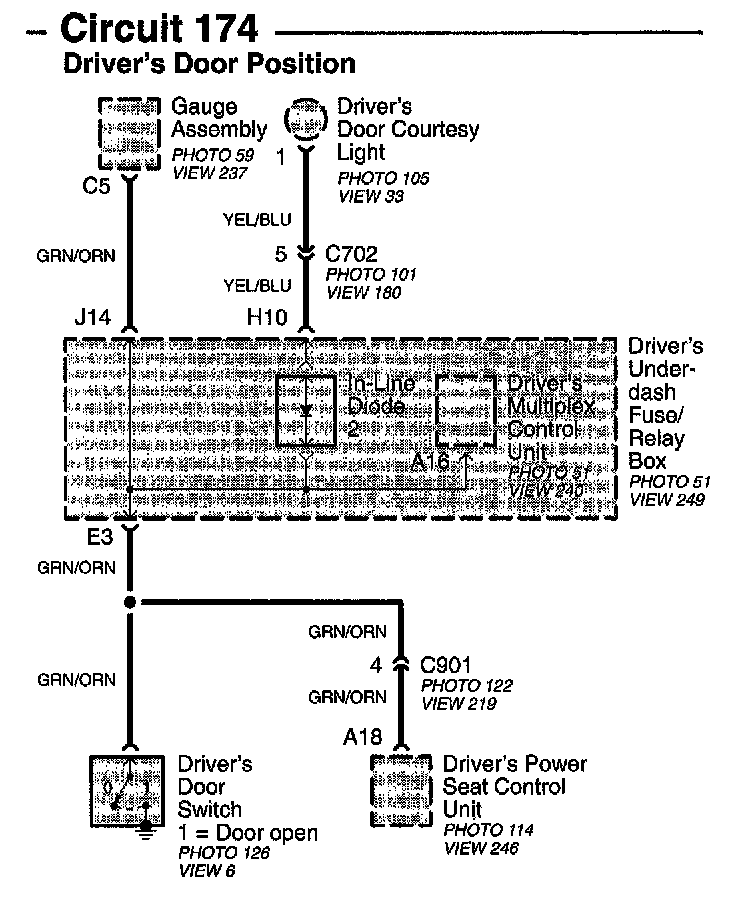

Circuit 174 - Driver's Door Position Image 15-5a:
