Home >> Acura >> 2002 >> CL V6-3.2L SOHC >> Repair and Diagnosis >> Locations >> Splice Locations >> Circuit 16

Circuit 16

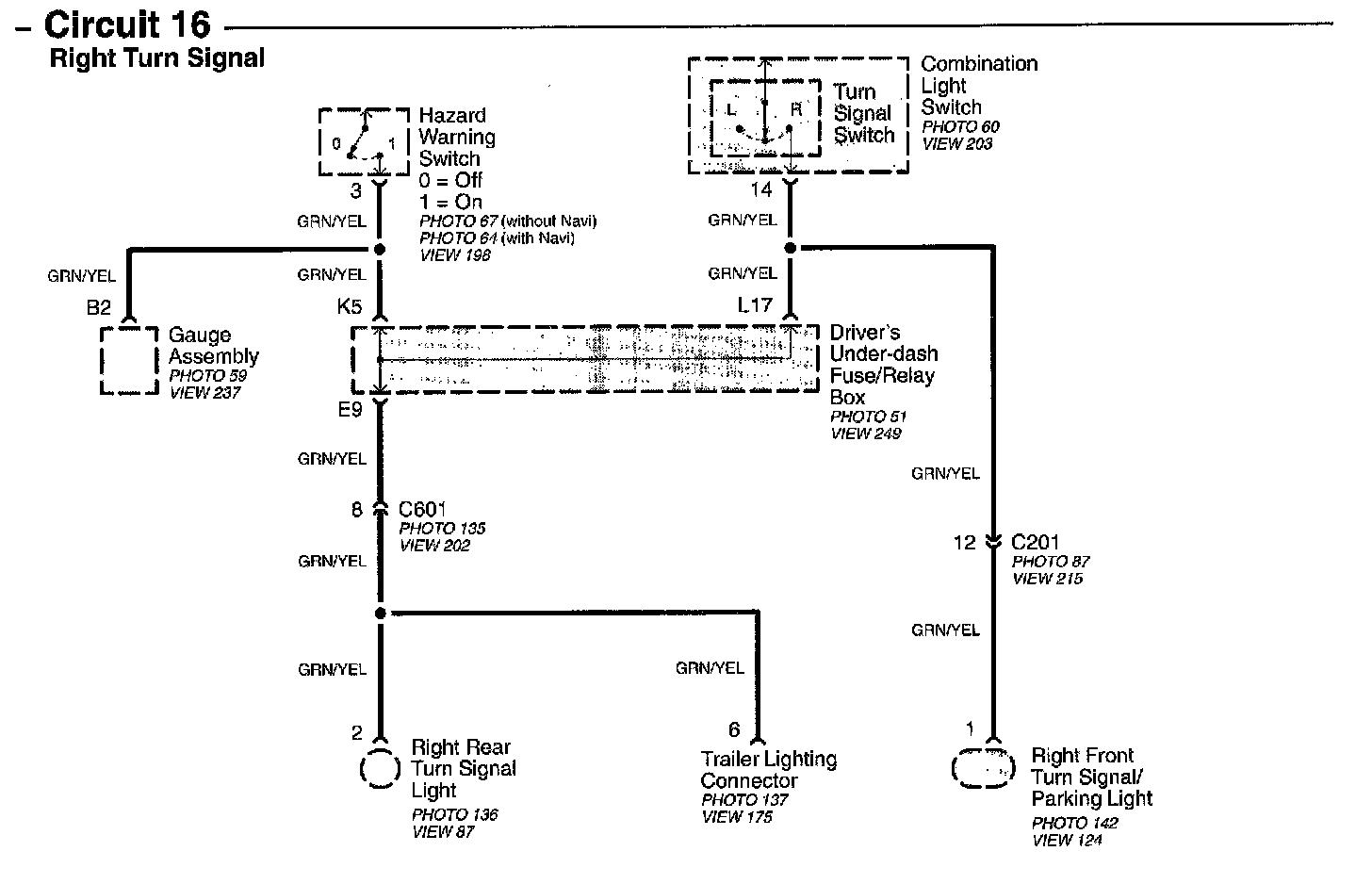

Circuit 16 - Right Turn Signal Image 15-4a:
