Home >> Acura >> 2002 >> CL V6-3.2L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Intake Manifold

Intake Manifold

Intake Manifold Removal and Installation

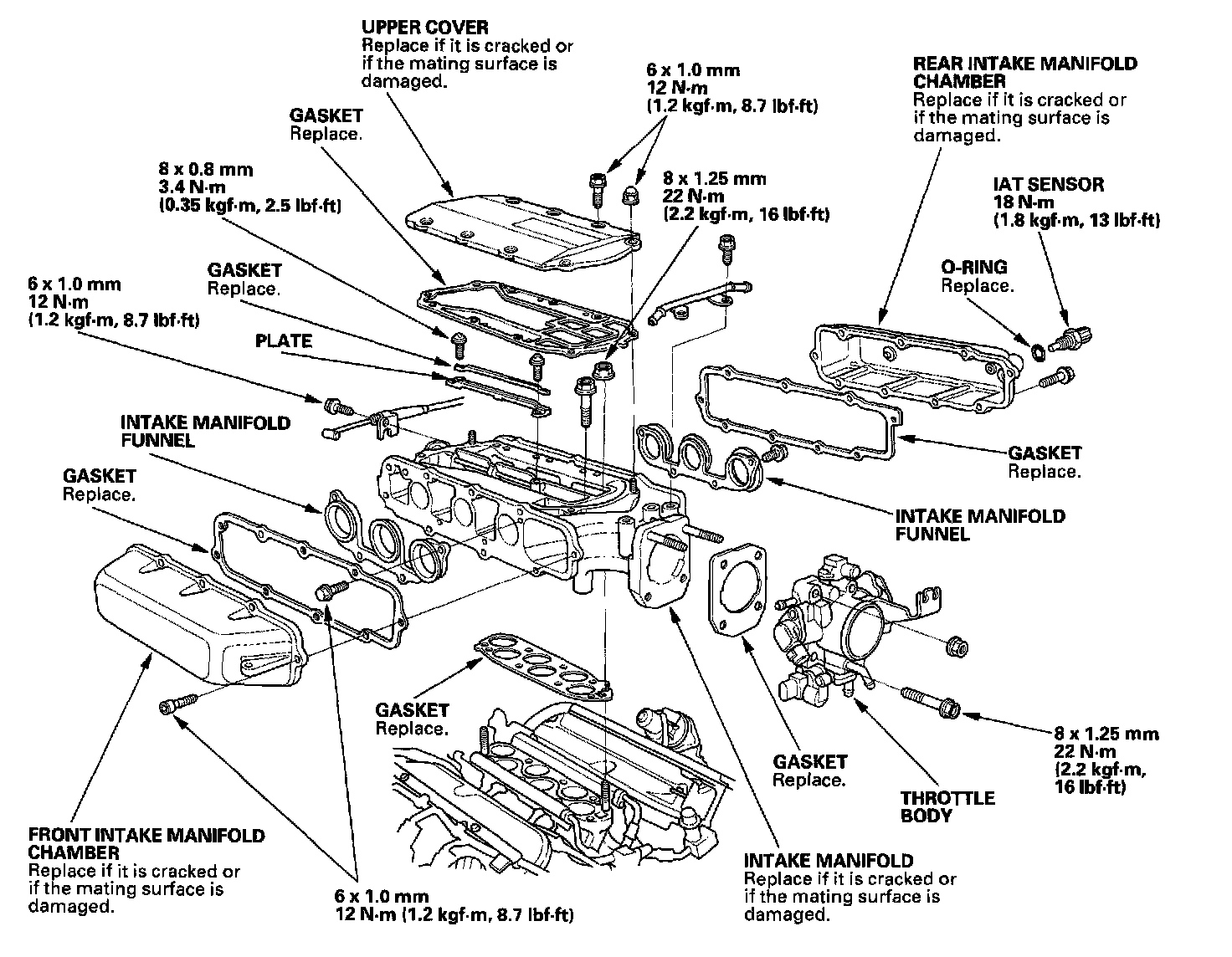

J32A1 engine

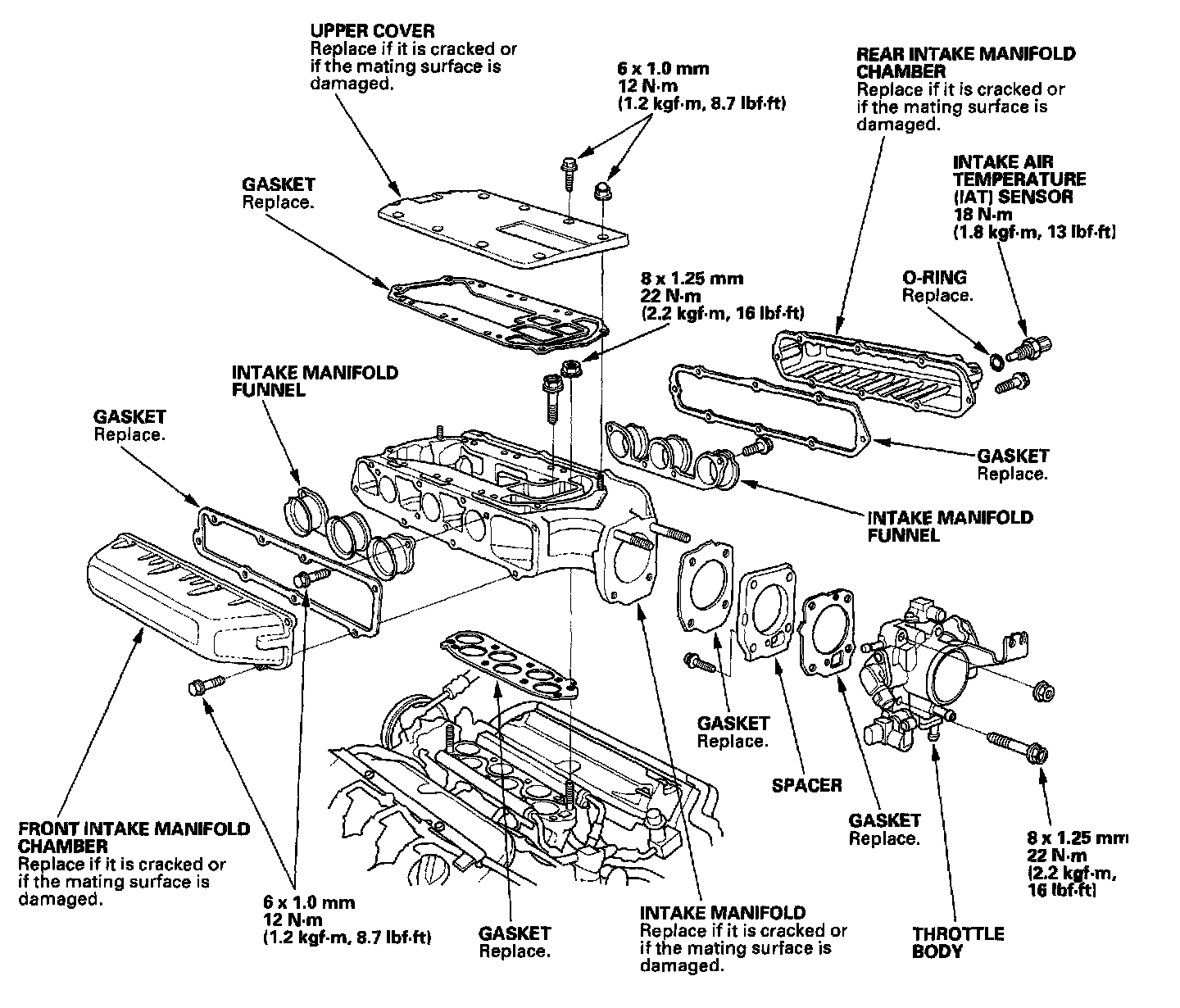

J32A2 engine
