Home >> Acura >> 2002 >> CL V6-3.2L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Front Door

Front Door

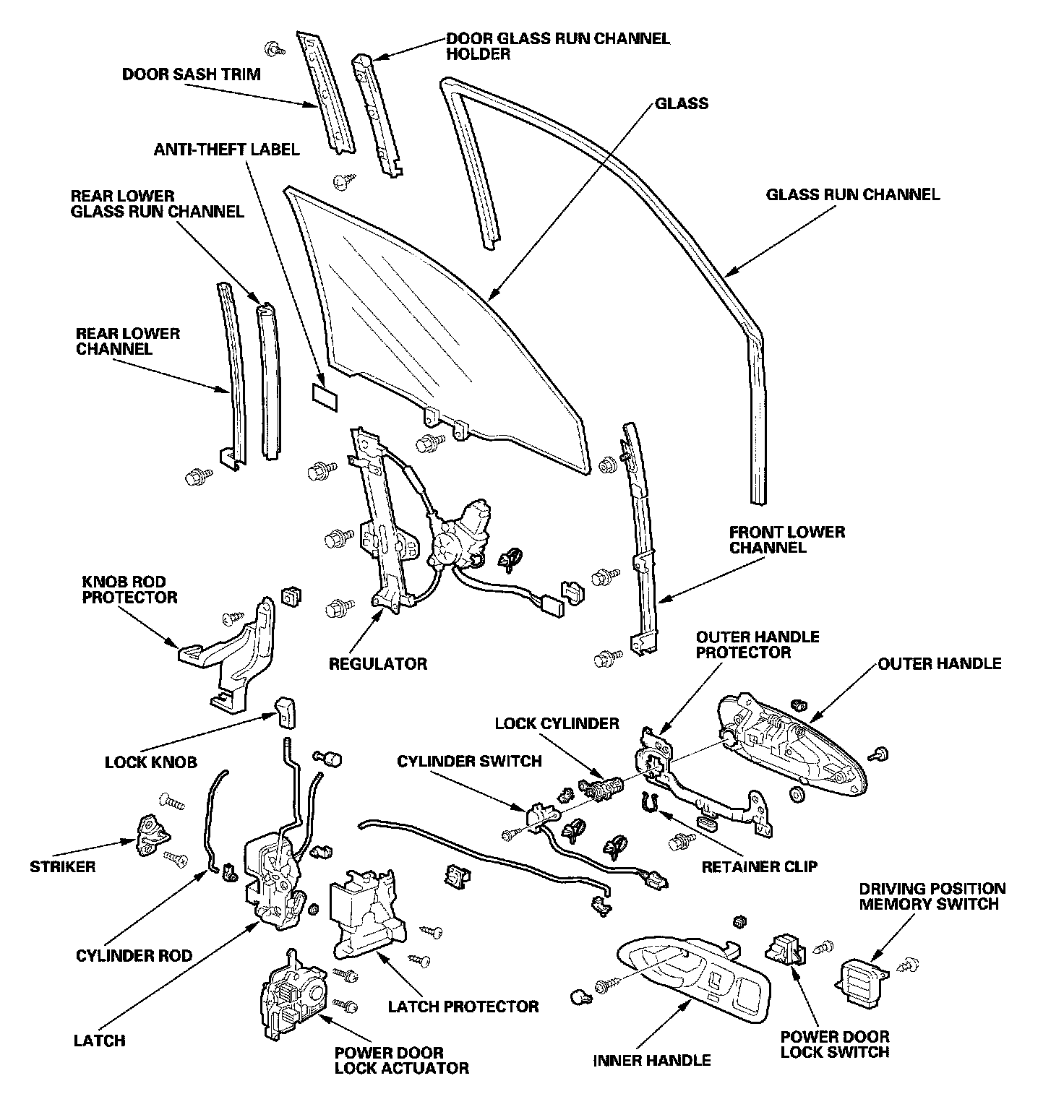

Doors Component Location Index Part 1:

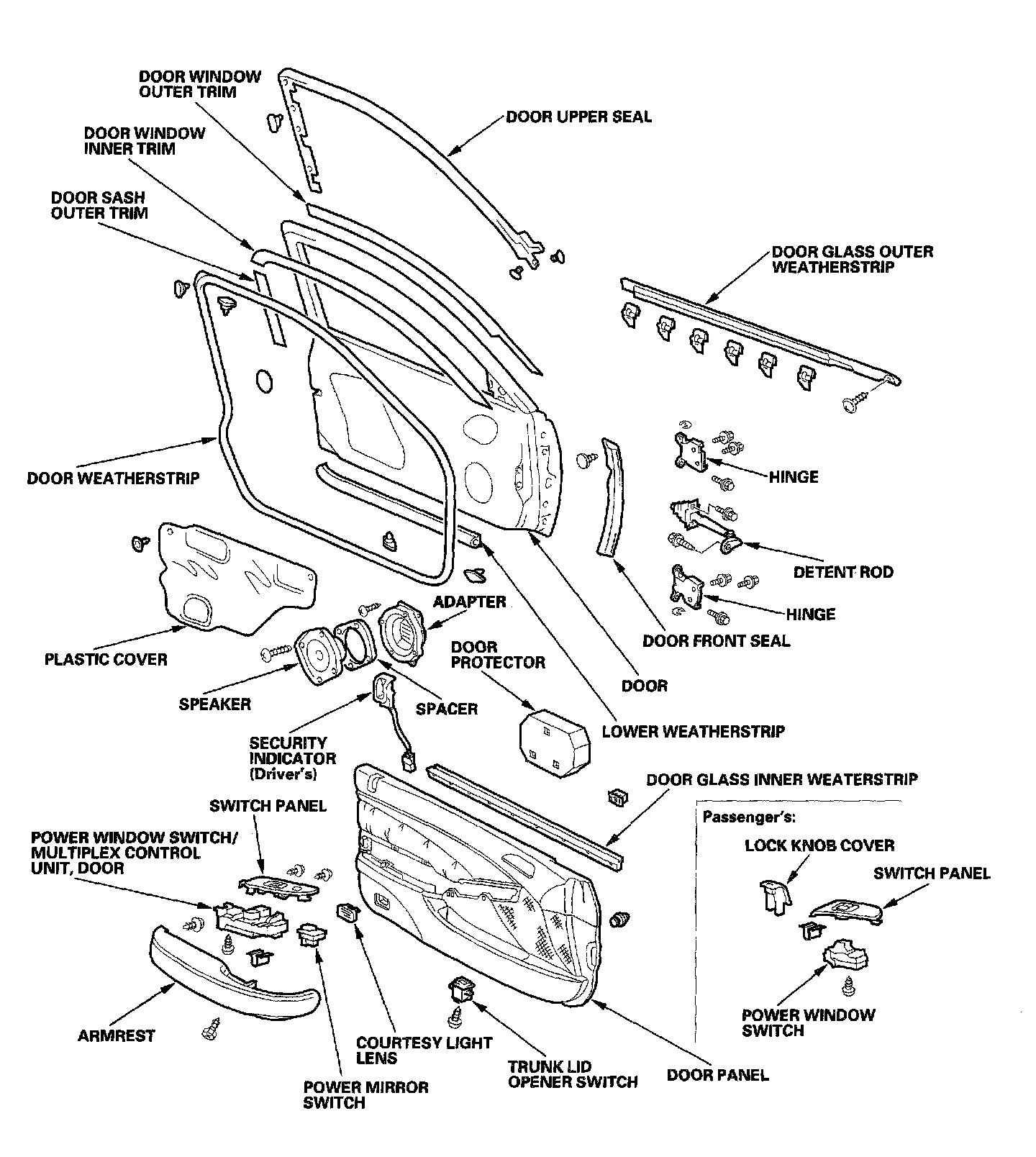

Doors Component Location Index Part 2:
