Home >> Acura >> 2001 >> CL V6-3.2L SOHC >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Specifications >> Valve Body

Valve Body

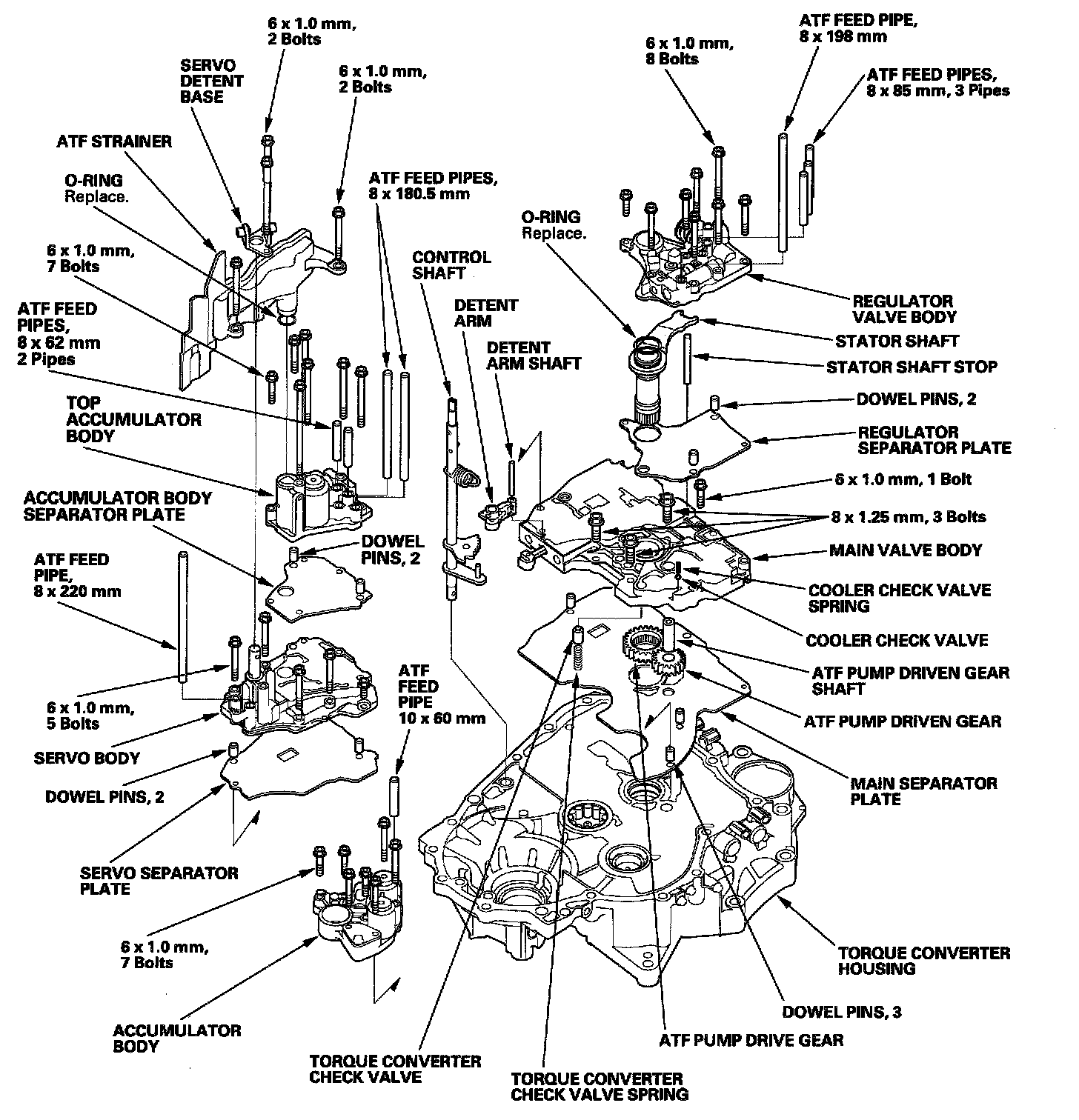

VALVE BODIES AND ATF STRAINER REMOVAL

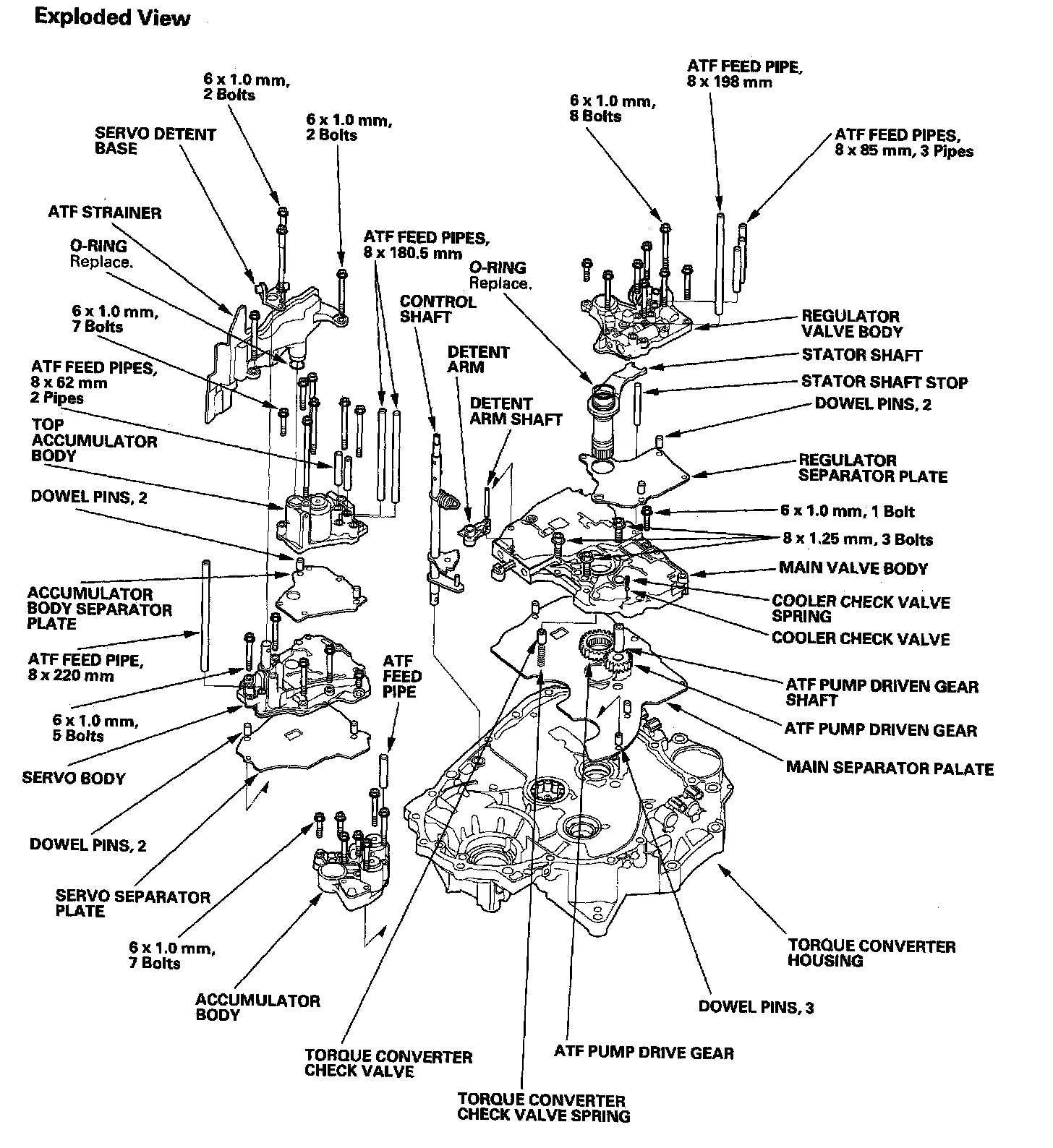

VALVE BODIES AND ATF STRAINER INSTALLATION
