Home >> Acura >> 2000 >> Integra LS Sedan L4-1834cc 1.8L DOHC MFI >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> System Specifications >> A/T Technical Data >> Spring Specifications

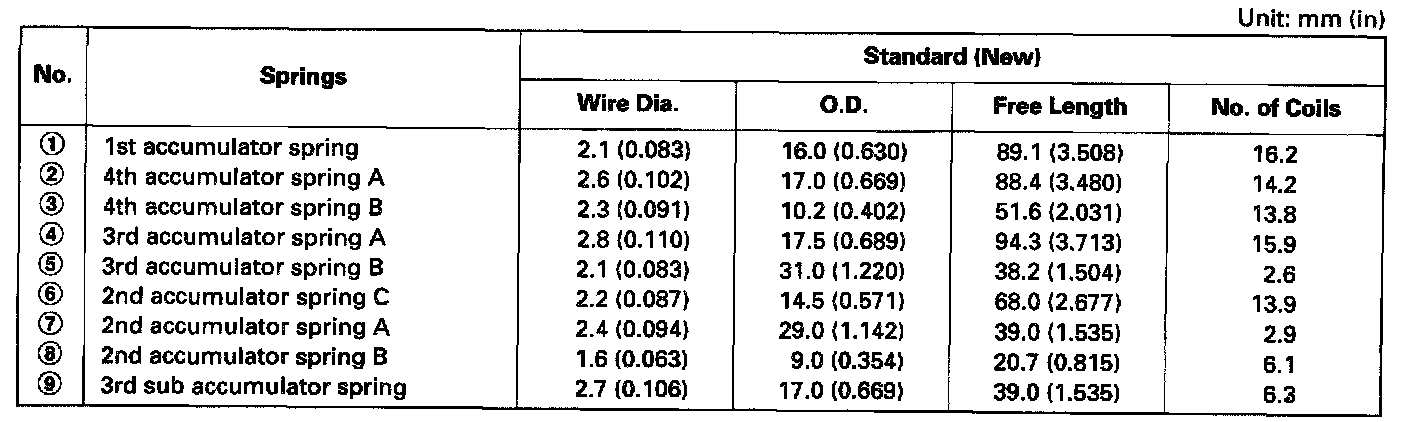

Spring Specifications





MAIN VALVE BODY





SECONDARY VALVE BODY





REGULATOR VALVE BODY





SERVO BODY





LOCK-UP VALVE BODY
