Home >> Acura >> 1997 >> TL L5-2451cc 2.5L SOHC MFI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Radiator Cooling Fan Control Module

Radiator Cooling Fan Control Module

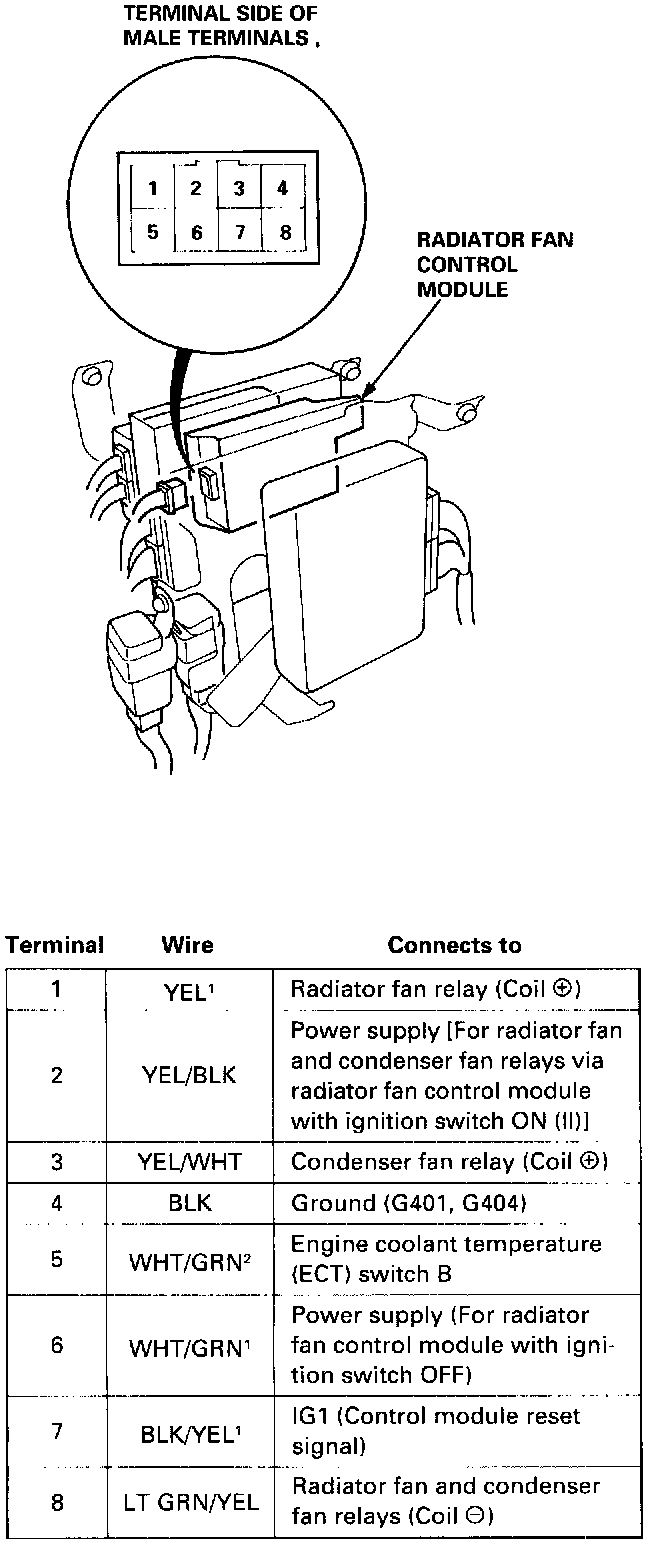

Radiator Fan Control Module Terminals:




NOTE: See Automatic Climate Control section for the input test.
