Entry Light and Key Off Timer Circuits
Entry Light and Key Off Timer Circuits

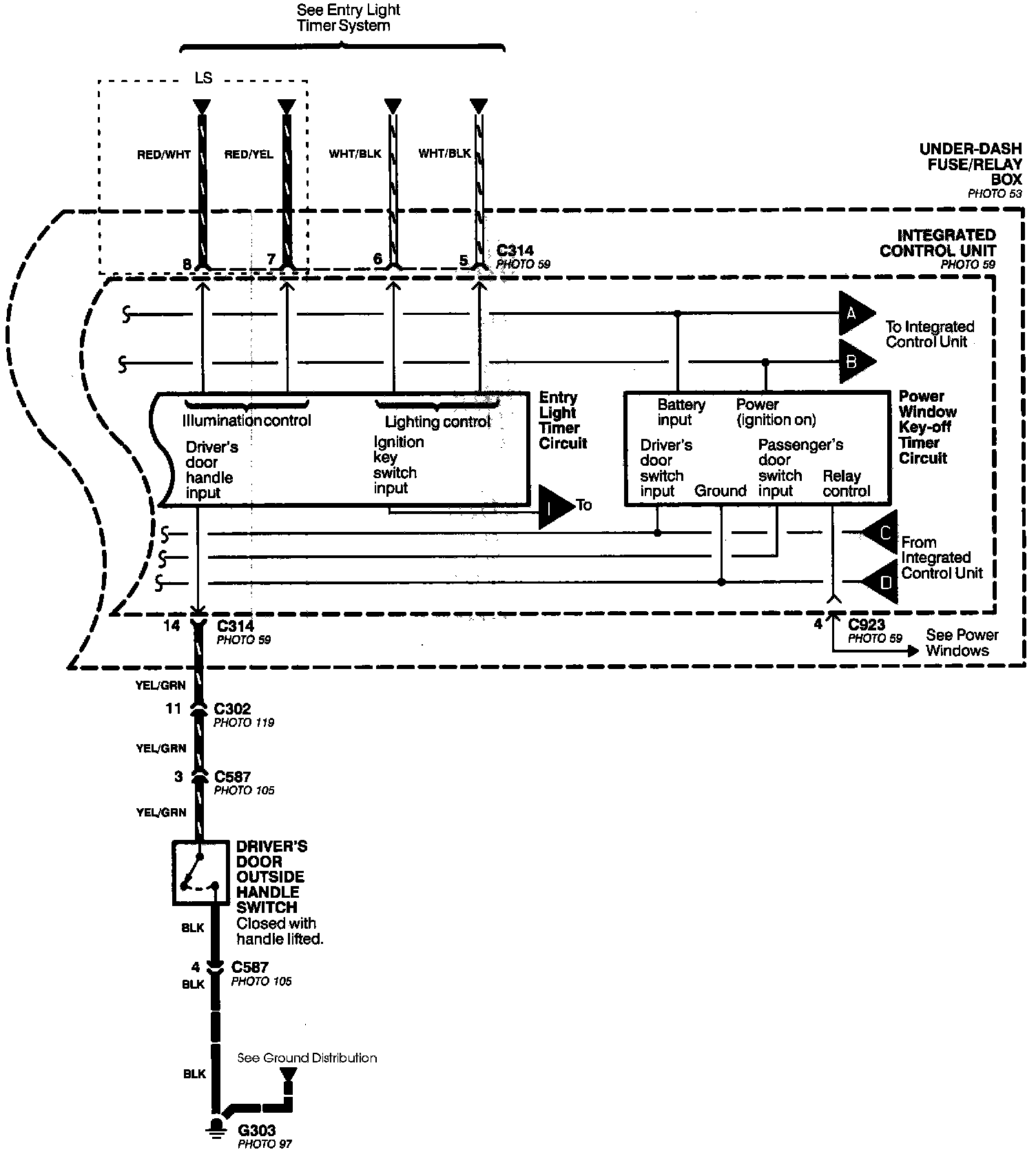

Integrated Control Unit- Entry Light And Key OFF Timer Circuits (Part 1 Of 2):

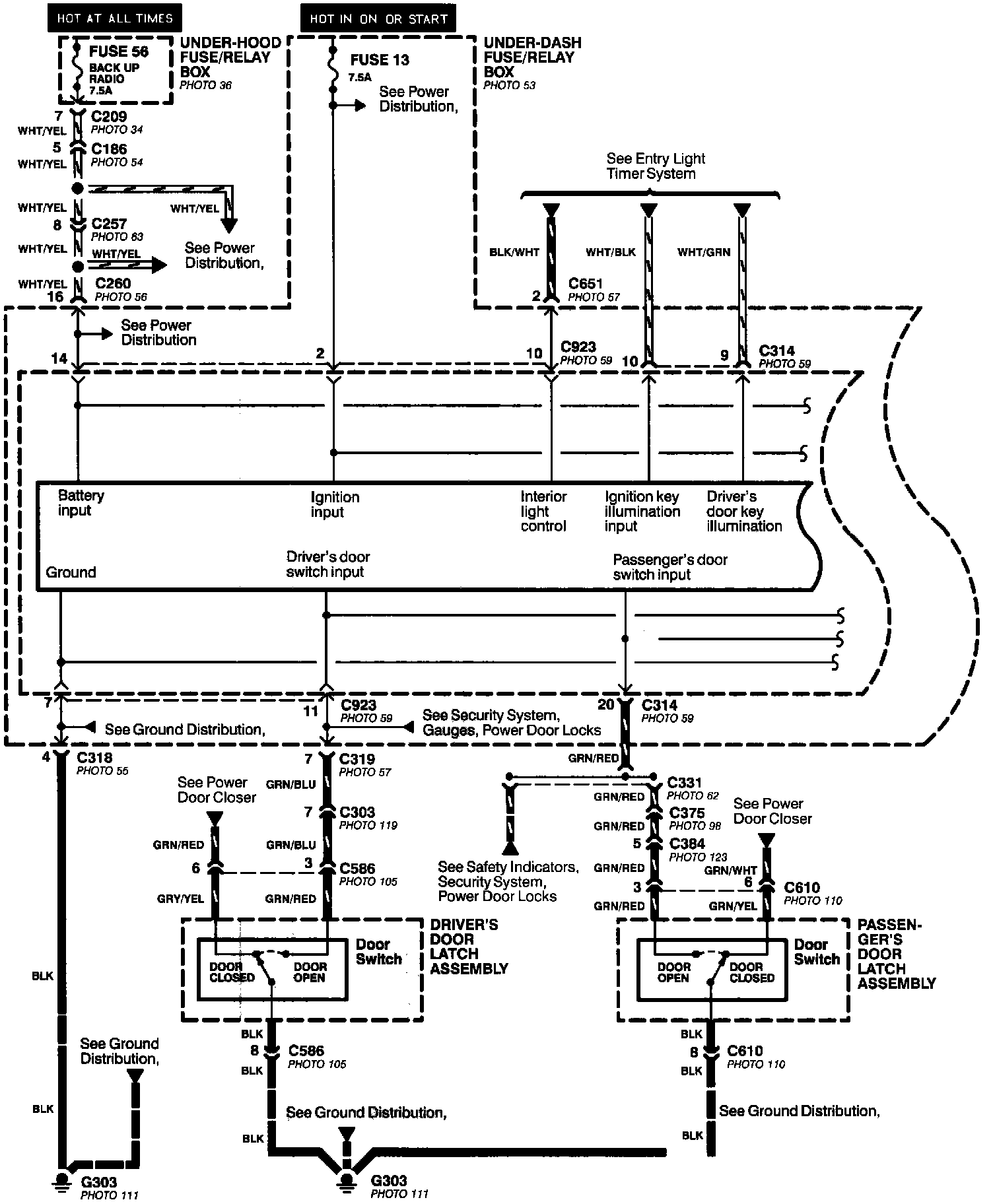

Integrated Control Unit- Entry Light And Key OFF Timer Circuits (Part 2 Of 2):
