Home >> Acura >> 1992 >> Integra L4-1678cc 1.7L DOHC (VTEC) FI >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Transmission Position Sensor/Switch >> Testing and Inspection

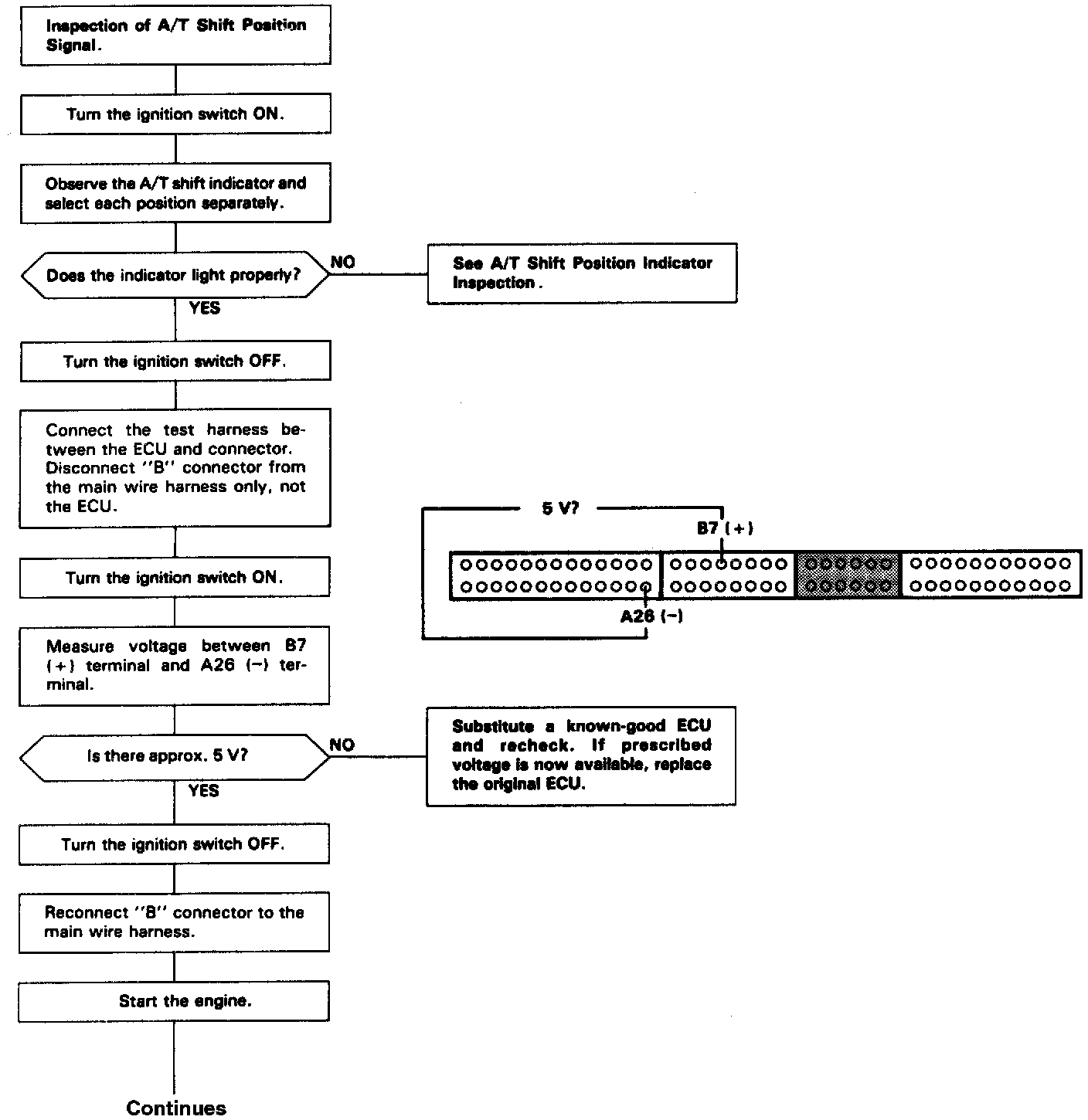

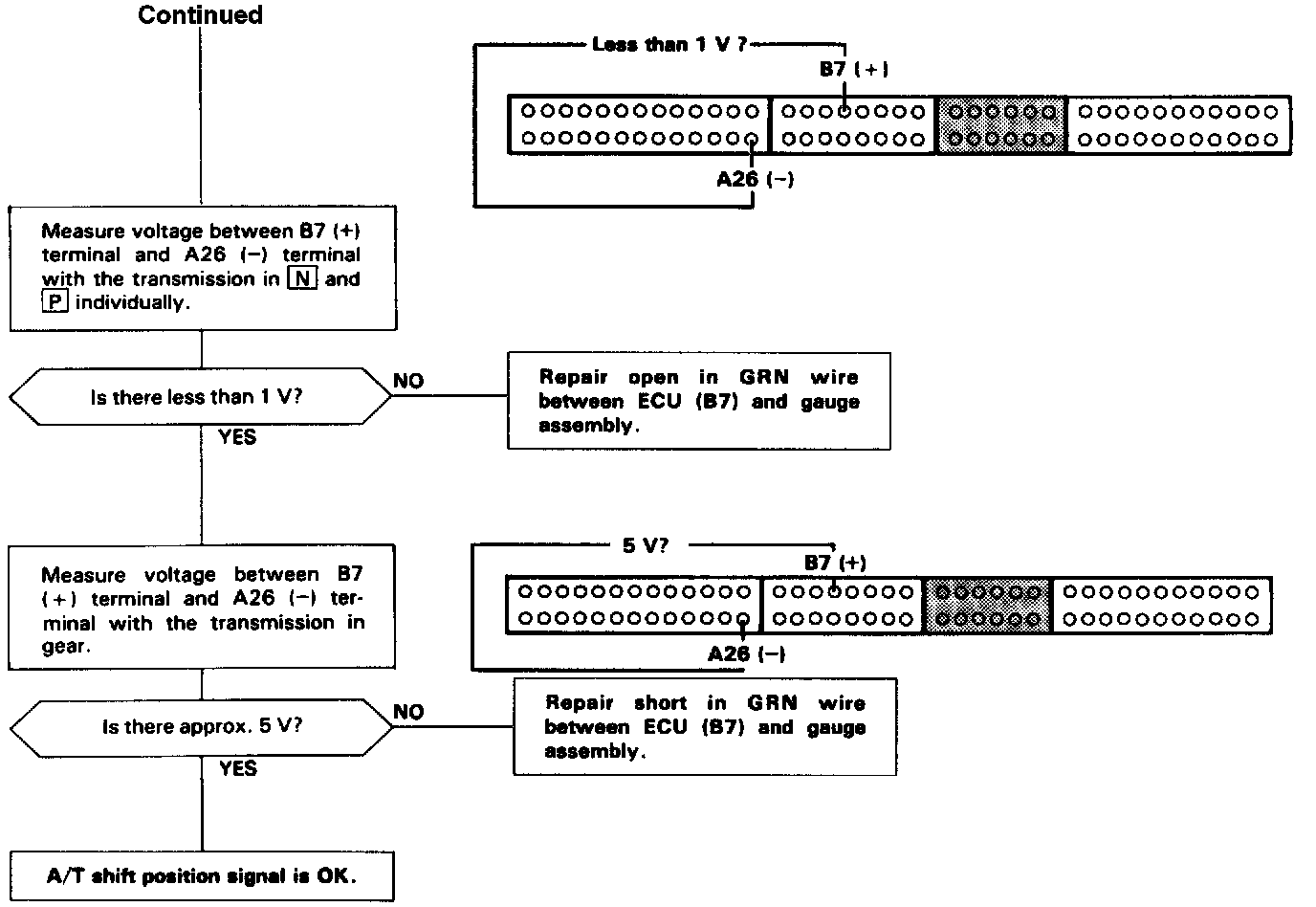

Transmission Position Sensor/Switch: Testing and Inspection








This signals the ECU when the transmission is in Neutral or Park.
