FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Acura
>>
1987
>>
Legend Coupe V6-2494cc 2.5L SOHC FI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Ignition Control Module
>>
Testing and Inspection
>>
Coupe
Coupe
COUPE ONLY

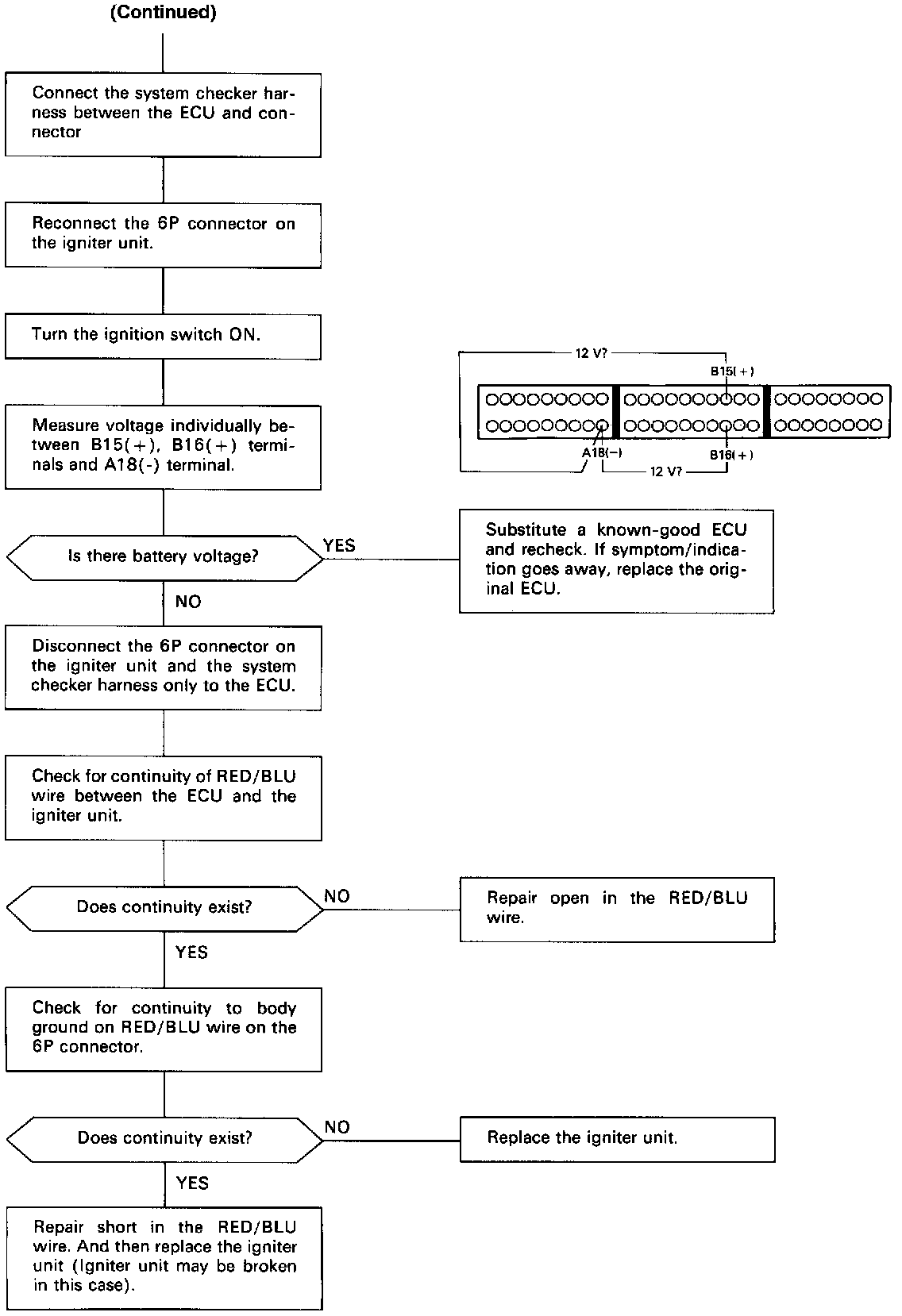

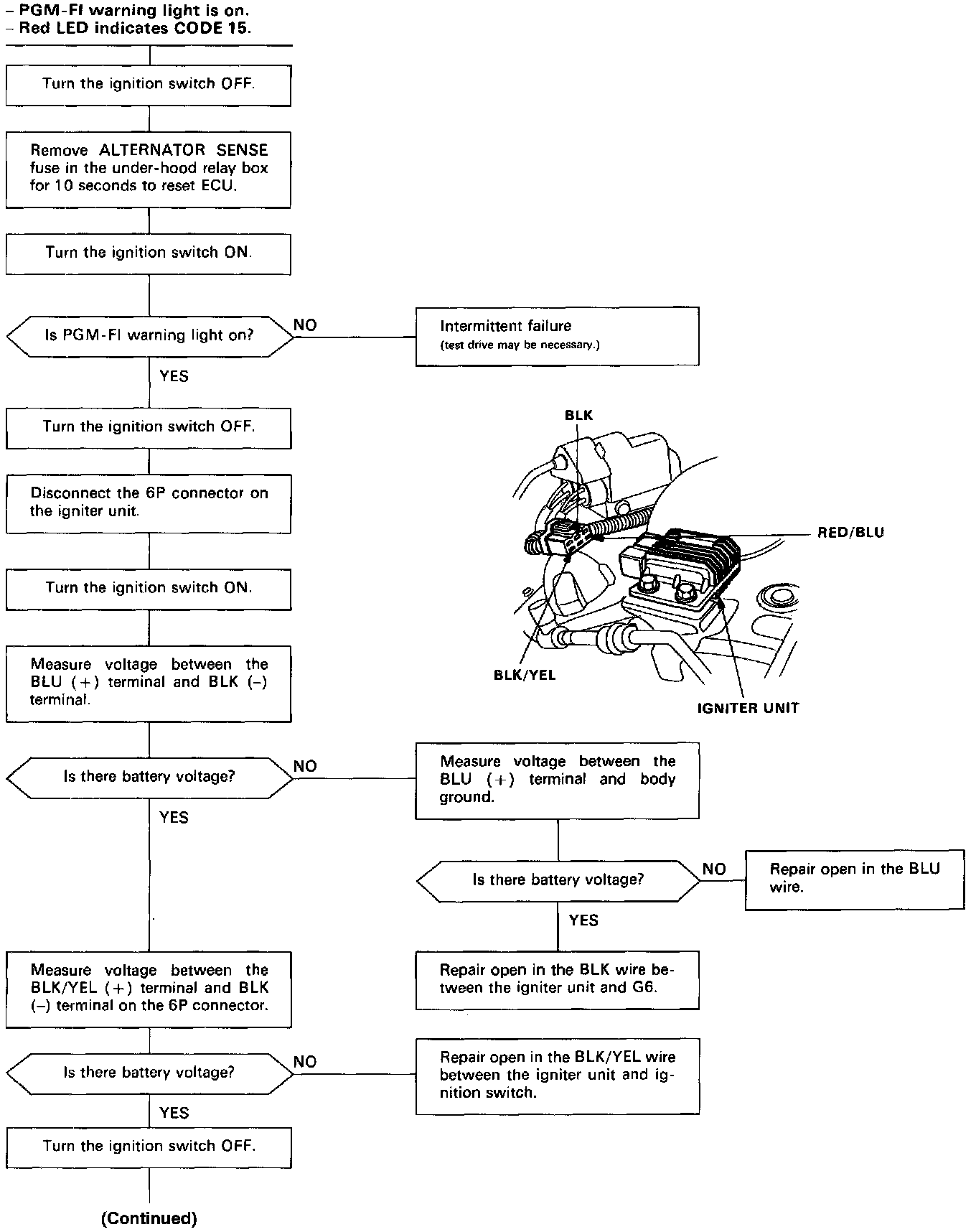

Self-diagnosis Red LED indicator blinks fifteen times: A problem in the Ignition Output Signal Circuit.
