Home >> Acura >> 1986 >> Legend V6-2494cc 2.5L SOHC FI >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Module HVAC >> Testing and Inspection >> Function Control Unit

Function Control Unit

Terminal Arrangement:

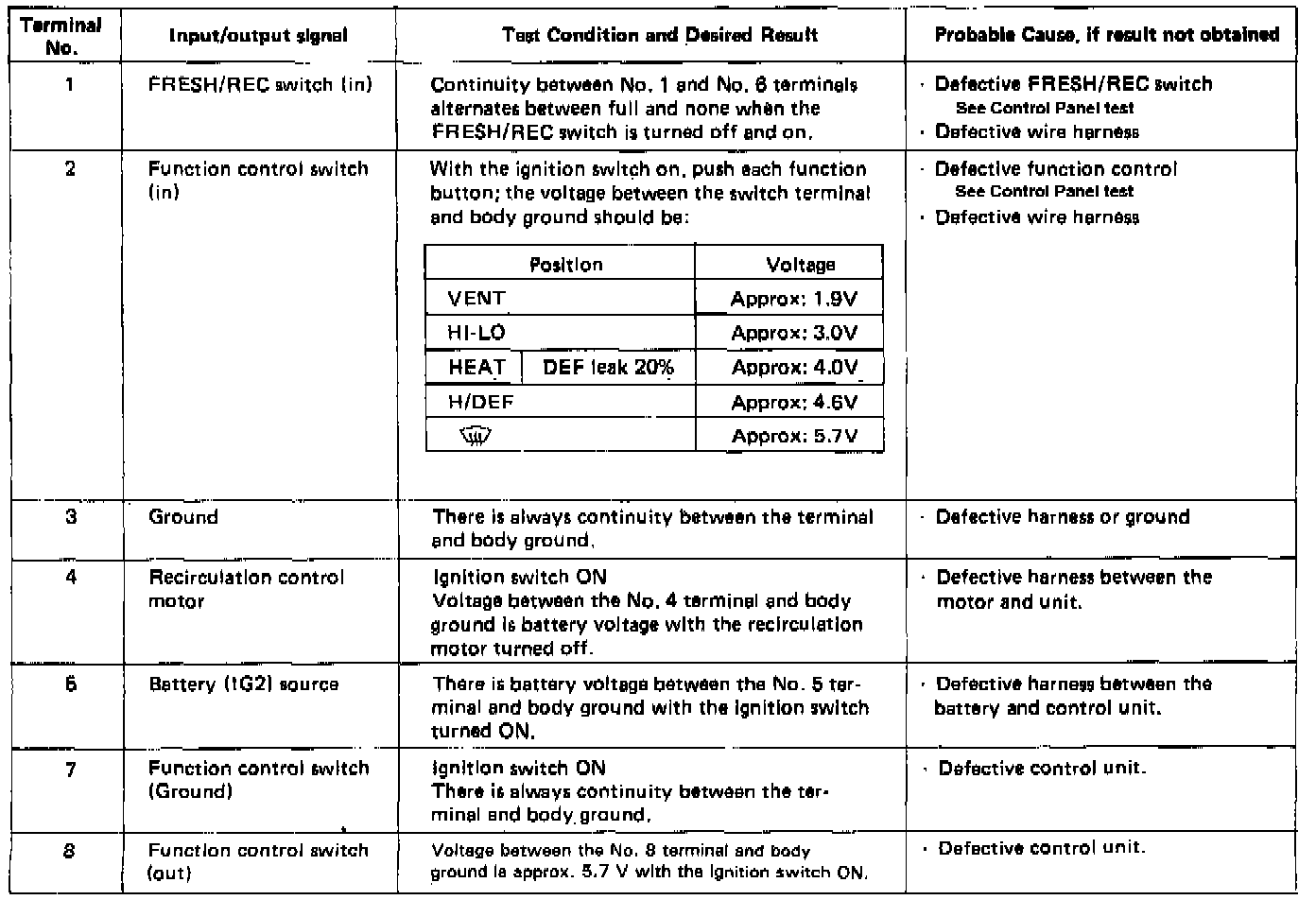

Function Control Unit Test

NOTE: Use the digital multimeter (KS-AHM-32-003) to check.
