Home >> Acura Truck >> 2008 >> RDX L4-2.3L Turbo >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Service Specifications

Service Specifications

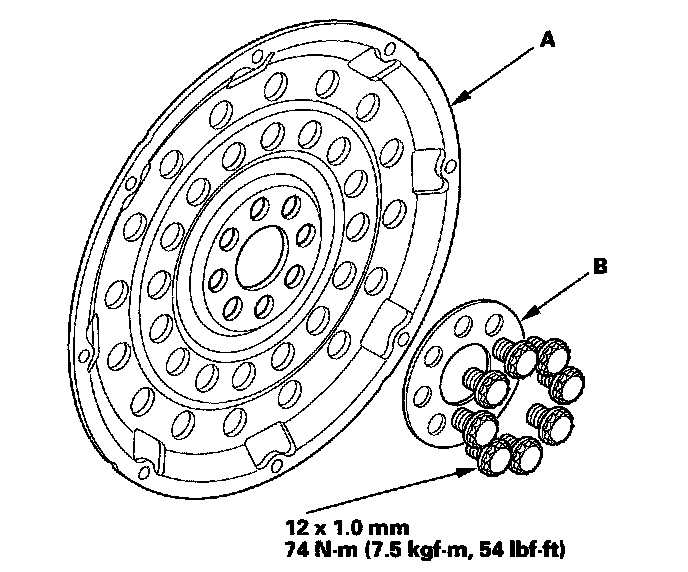

Drive Plate





Tighten the eight bolts in a crisscross pattern in at least two steps.
