Home >> Acura Truck >> 2008 >> RDX L4-2.3L Turbo >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Design Specifications

Design Specifications

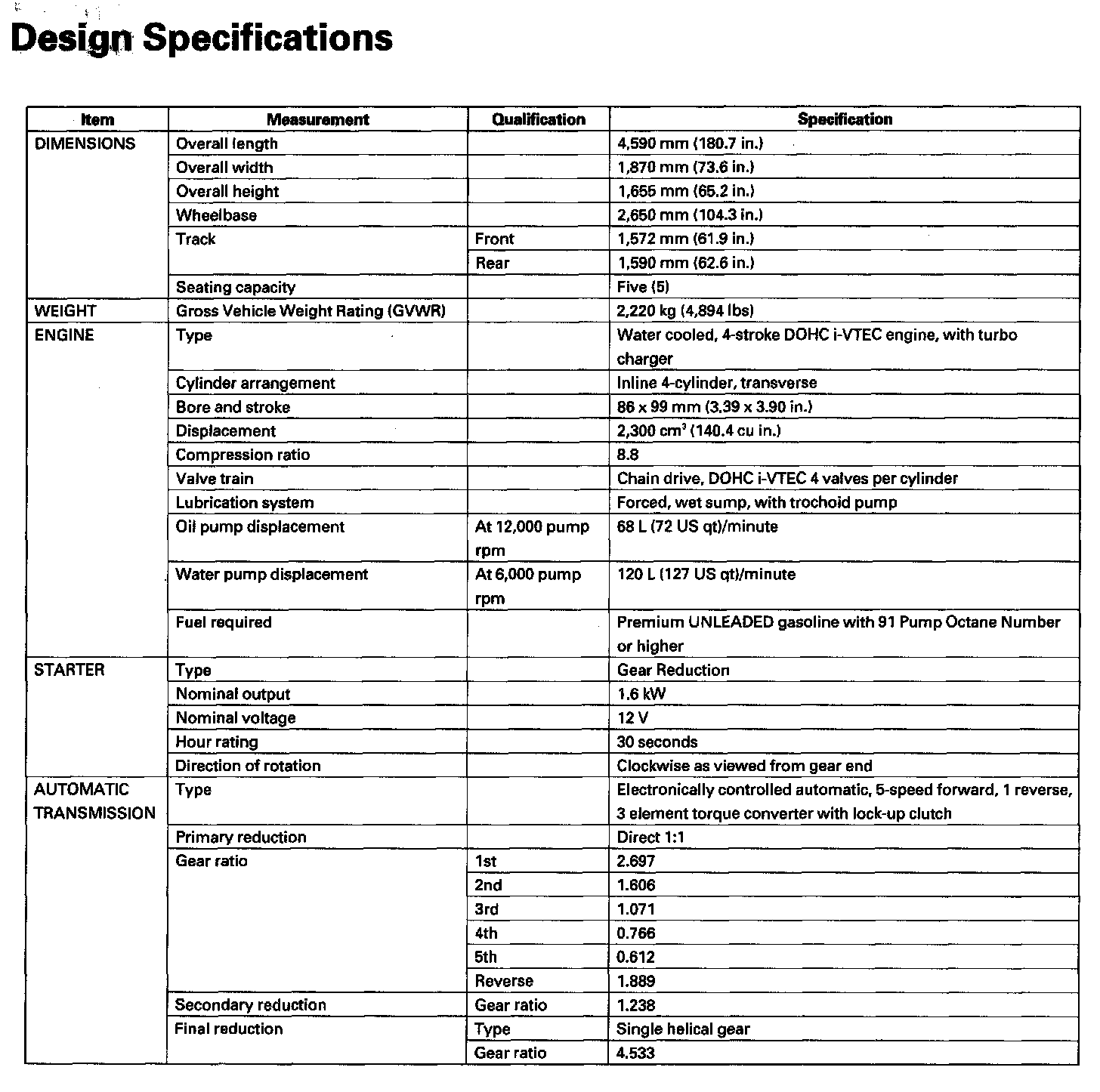

Design Specifications (Part 1):

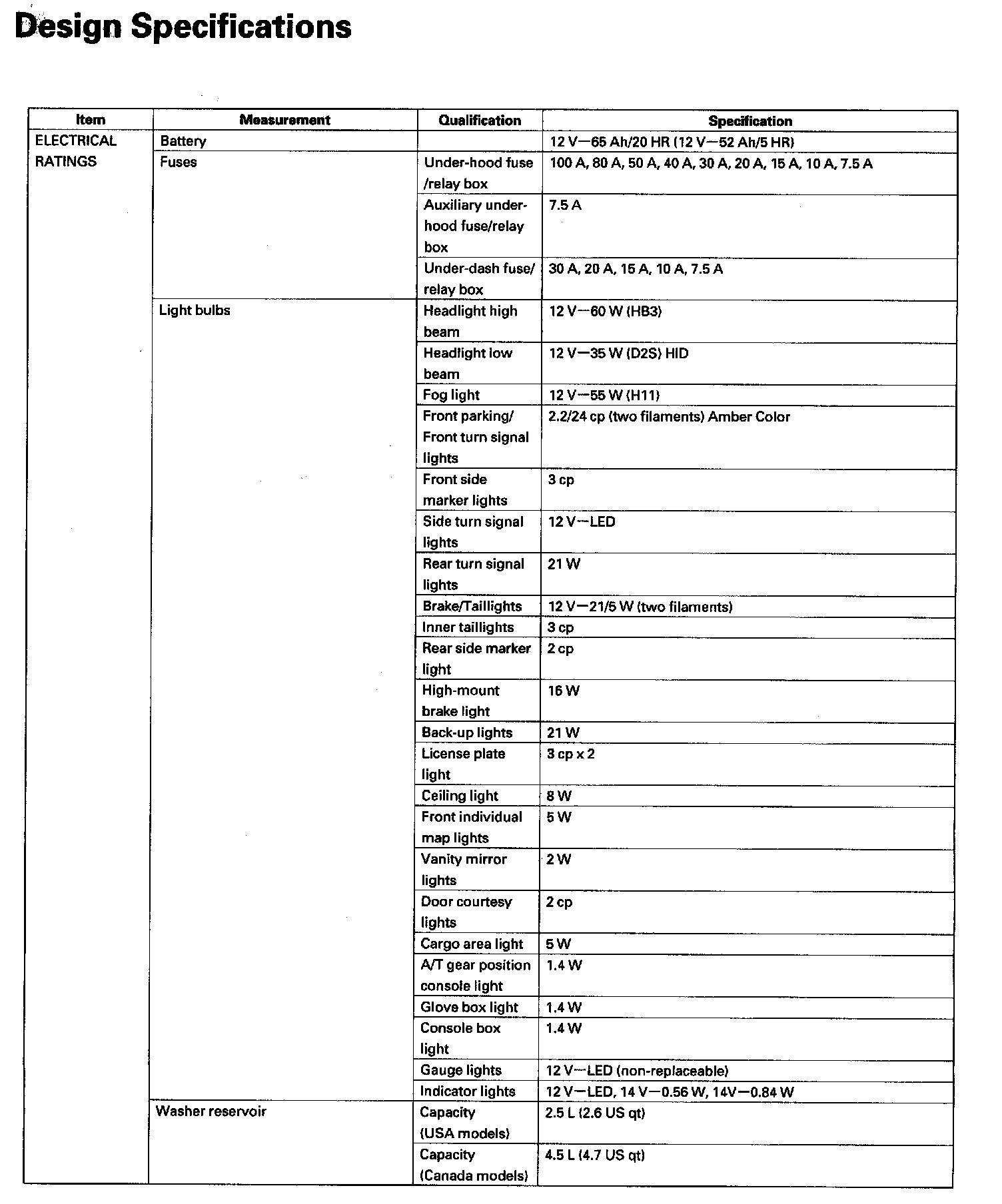

Design Specifications (Part 2):

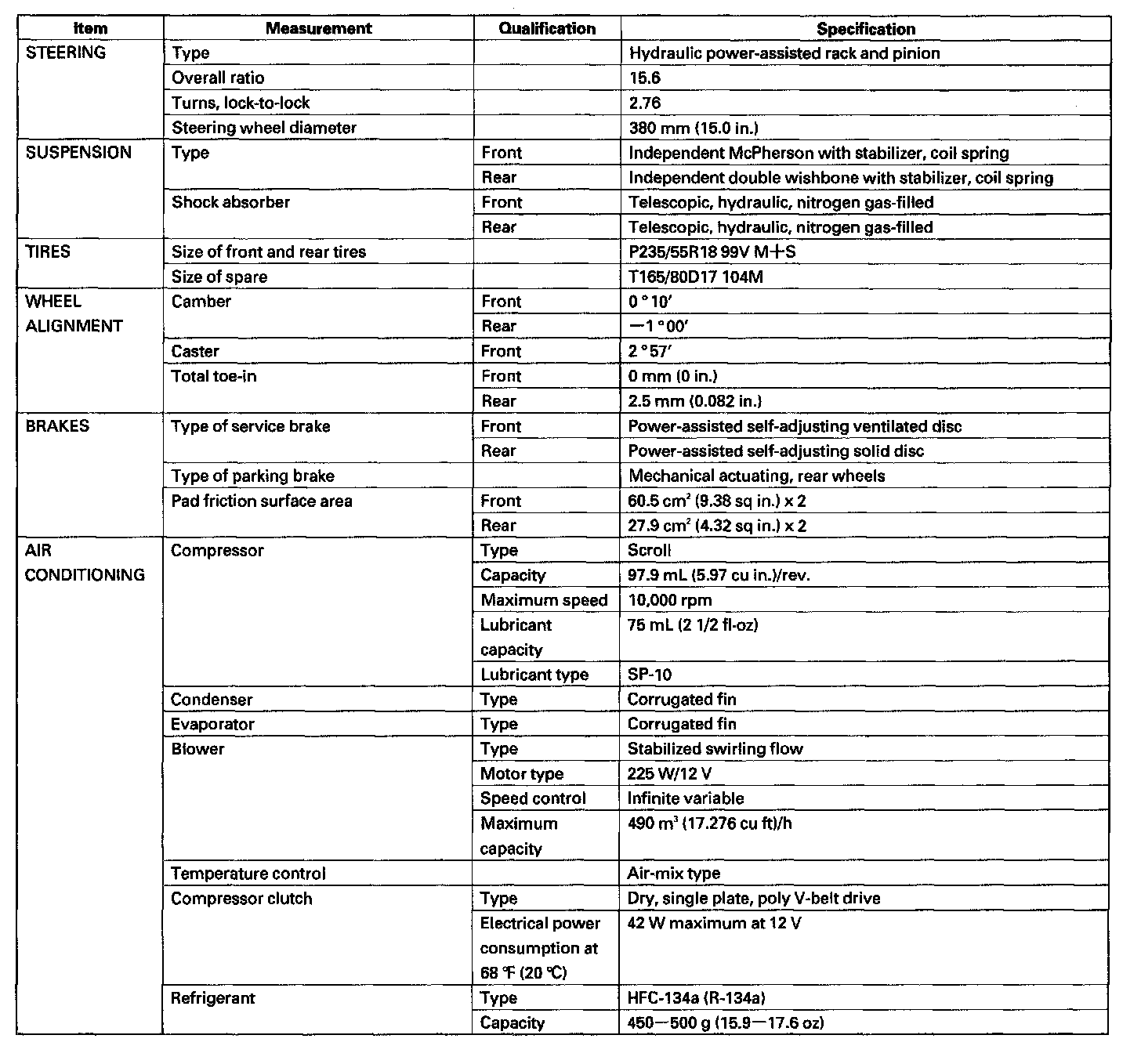

Design Specifications (Part 3):
