Home >> Acura Truck >> 2008 >> RDX L4-2.3L Turbo >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Transmission Position Sensor/Switch >> Locations

Transmission Position Sensor/Switch: Locations

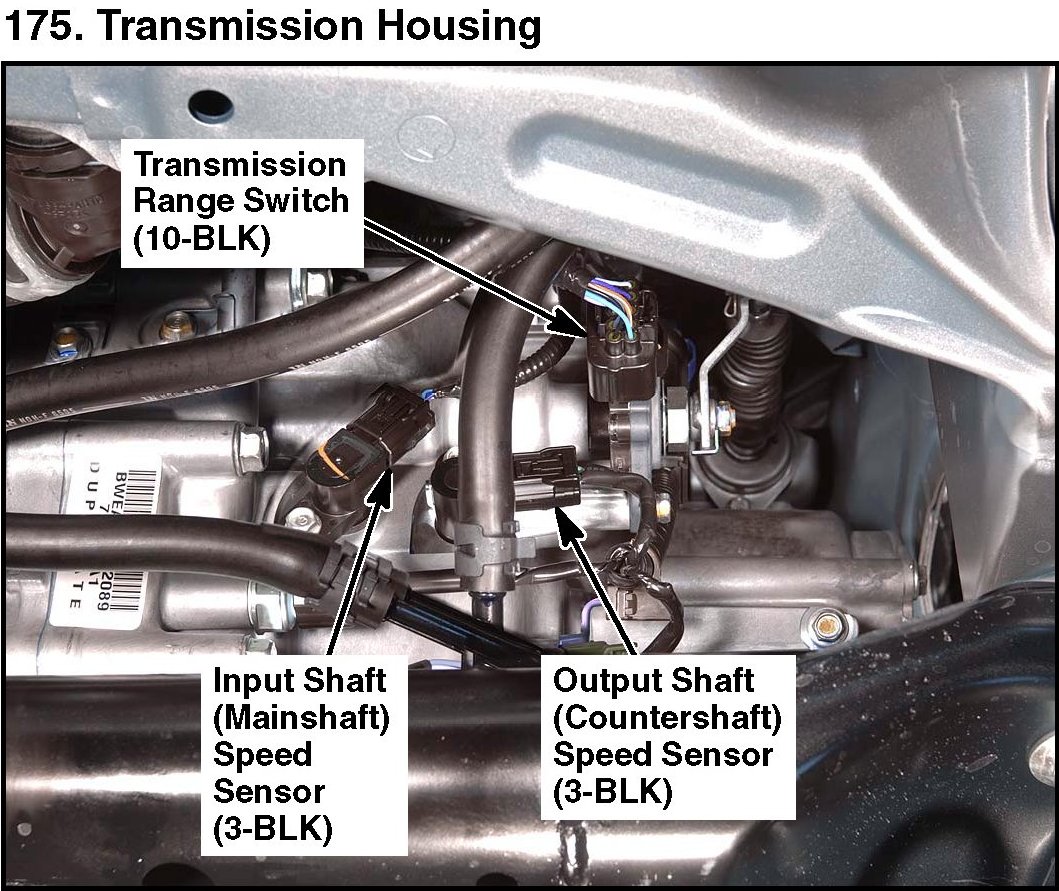

175. Transmission Housing:

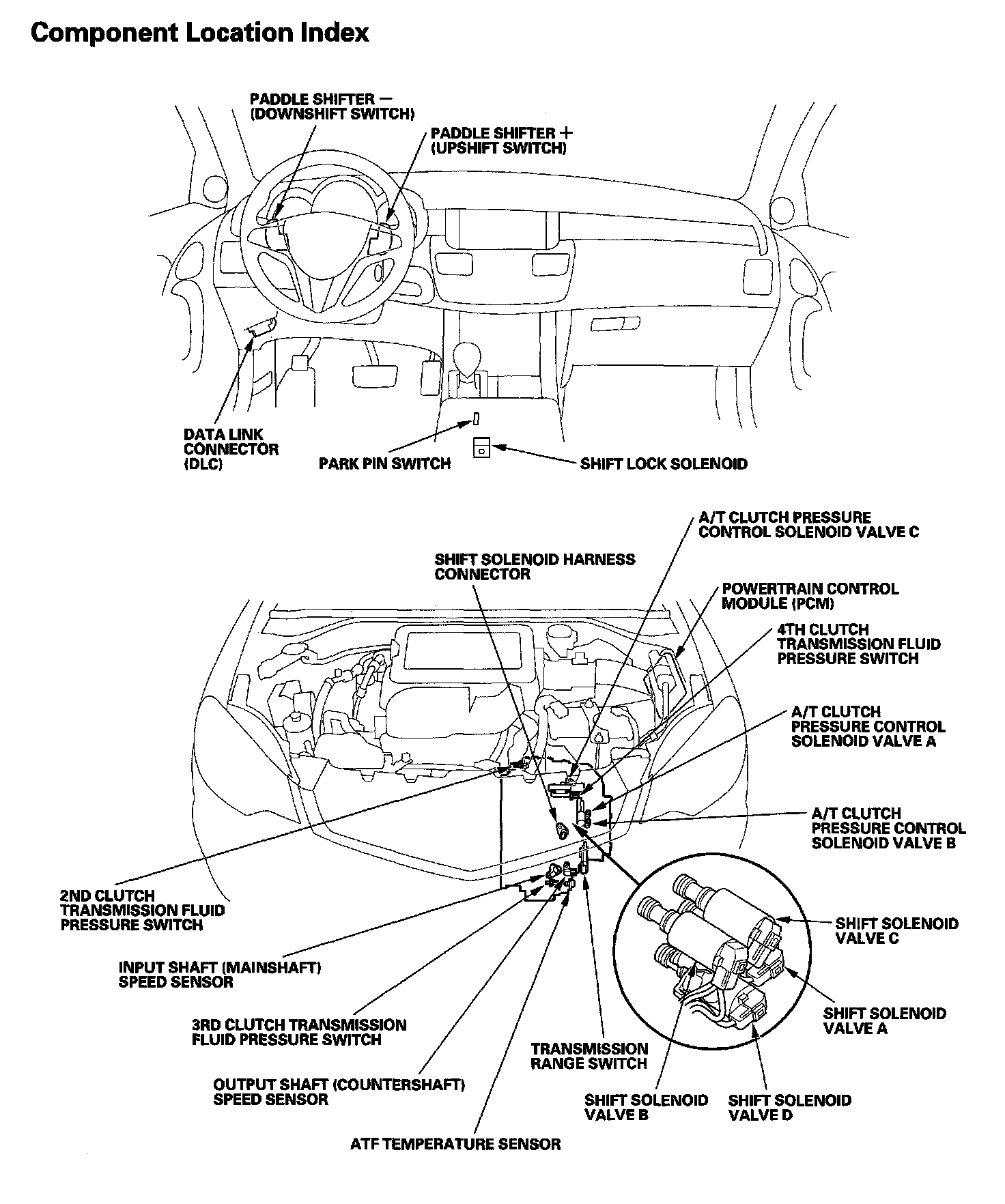

Automatic Transmission Component Location Index:
