Navigation Display
263. Navigation Display Unit (Technology Package):

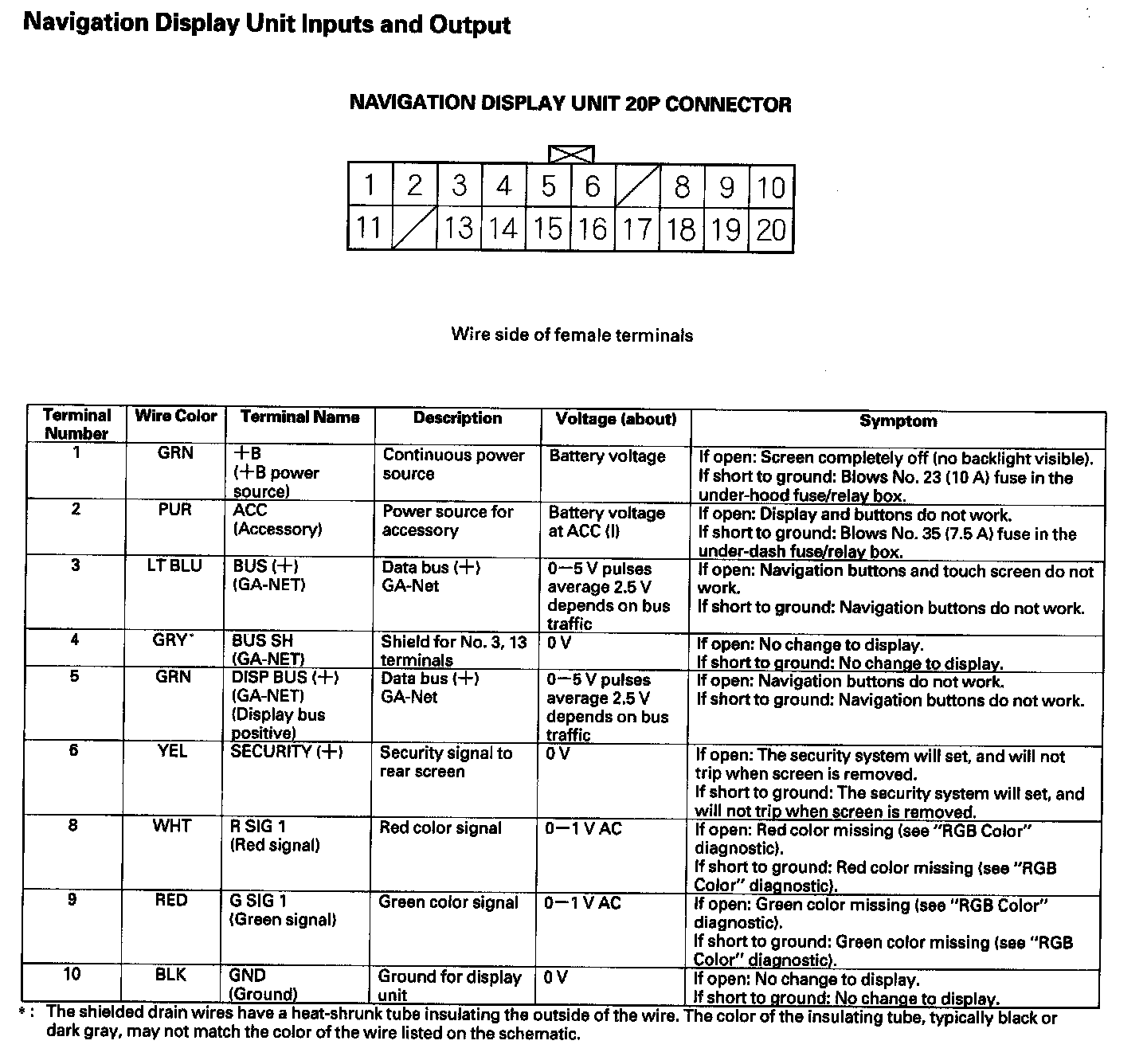

Navigation Display Unit Inputs And Output (Part 1):

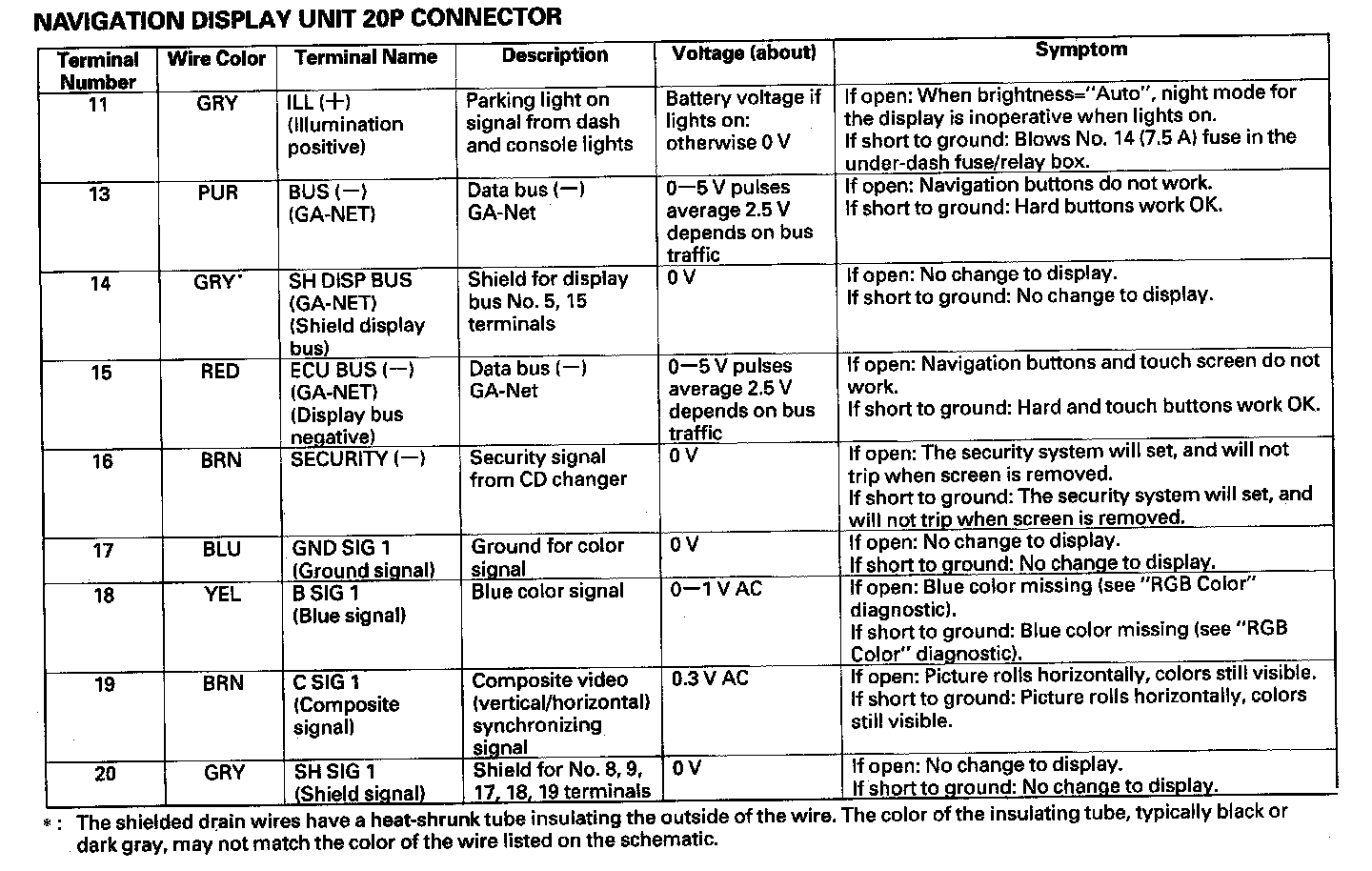

Navigation Display Unit Inputs And Output (Part 2):
