Home >> Acura Truck >> 2008 >> RDX L4-2.3L Turbo >> Repair and Diagnosis >> Body and Frame >> Mirrors >> Power Mirror Control Module >> Locations

Power Mirror Control Module: Locations

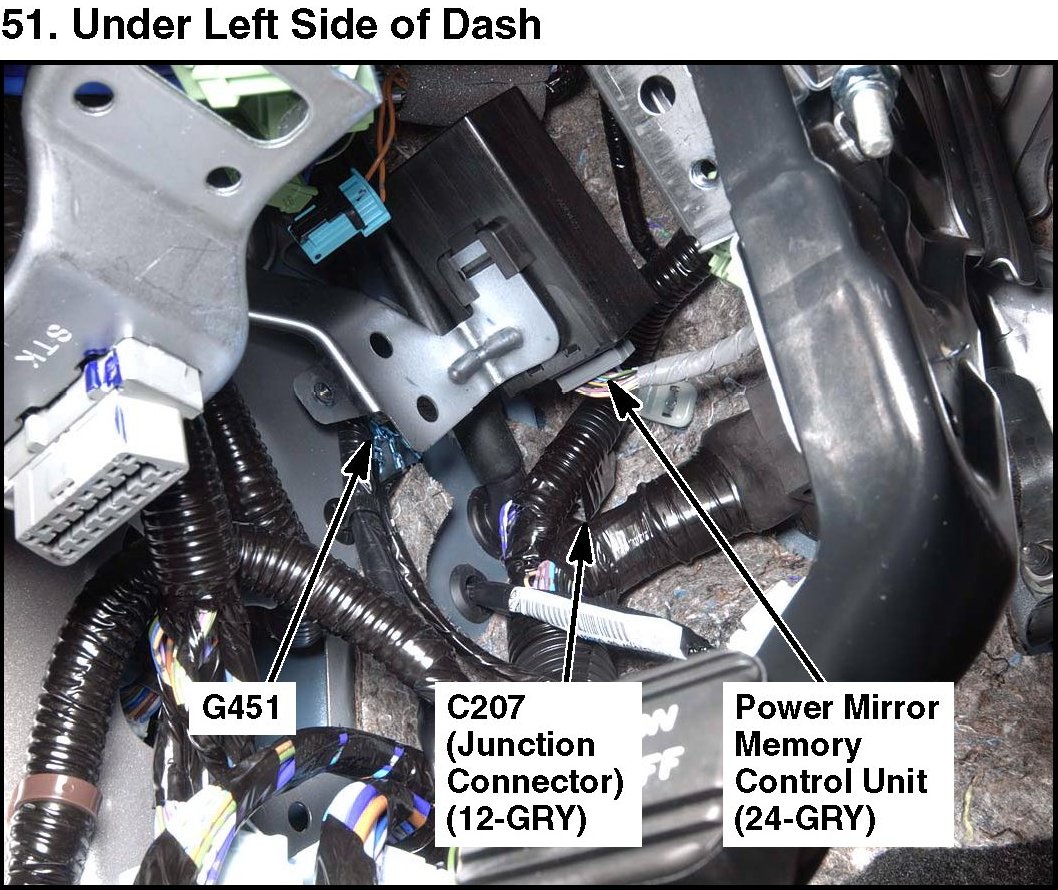

51. Under Left Side Of Dash:



Relay And Control Unit Locations Dashboard:
