Differential Assembly
Differential Assembly

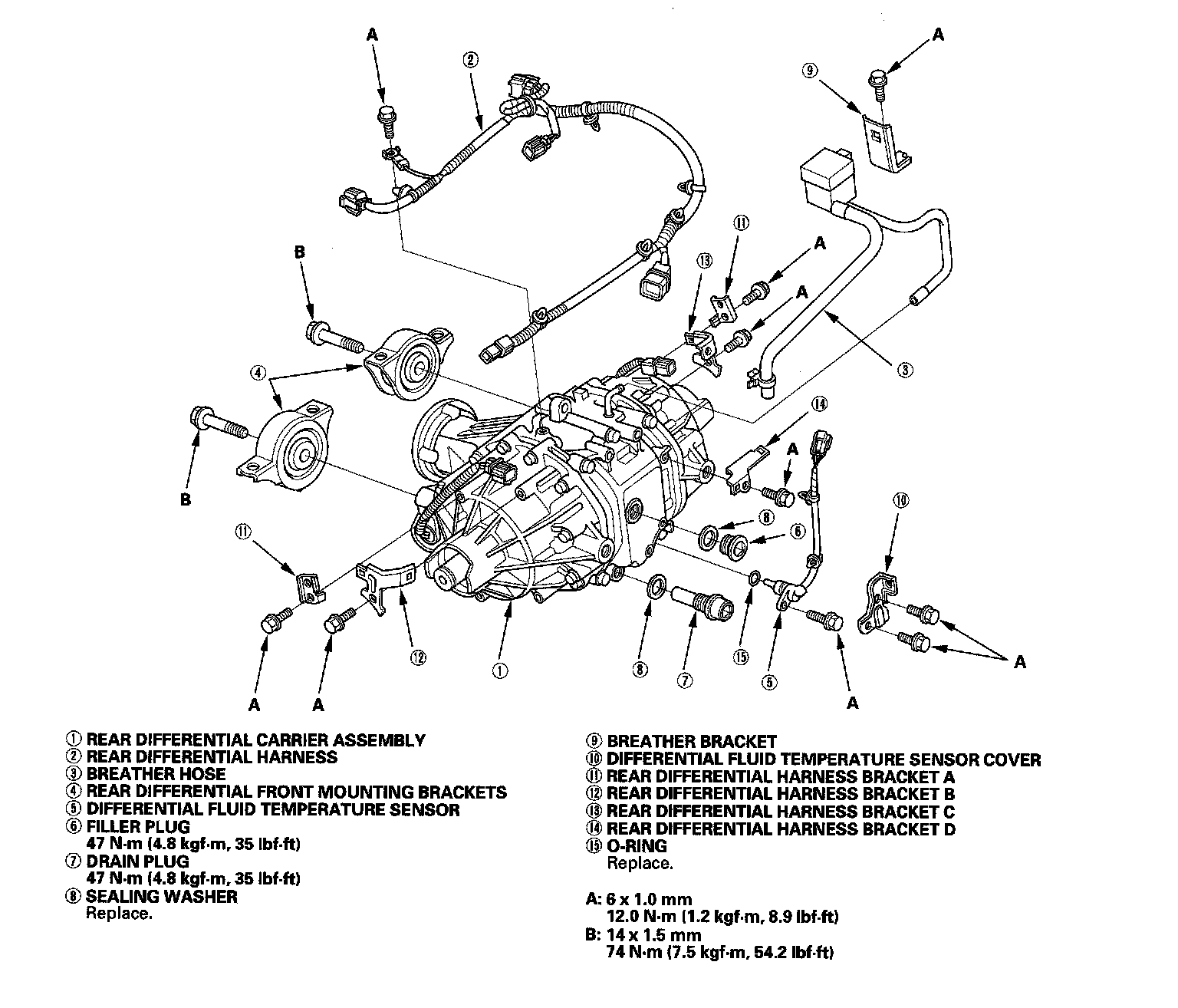

Rear Differential Disassembly/Reassembly
Rear Differential:
