Active On-Demand Coupling Module

Active On-Demand Coupling Module

Note! Some variation may occur. However, the essential information in the illustrations is always correct.

Removal

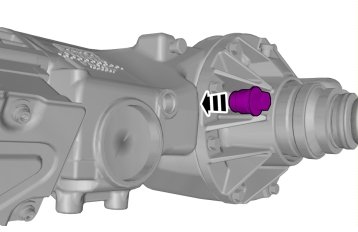

Drain accumulator.











Warning! Be prepared to collect escaping fluid.Tightening torque M5, 5 Nm






Warning! Be prepared to collect escaping fluid.





Only use the specified material to lubricate the seals. Use:. 30759648

Installation







To install, reverse the removal procedure.










Follow the instructions for transmission lubricants according to Lubricant transmission Capacity Specifications

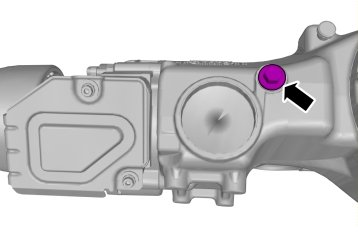

Tightening torque Torque: Oil plug, final drive, 35 Nm

Order software for the control module.
