Replacing Seal For The Torque Converter

Operation number: 43724-2

Sealing ring, torque converter

Note! Some variation in the illustrations may occur, but the essential information is always correct.






Removal

Note! Removal steps in this procedure may contain installation details.

Remove the transaxle.

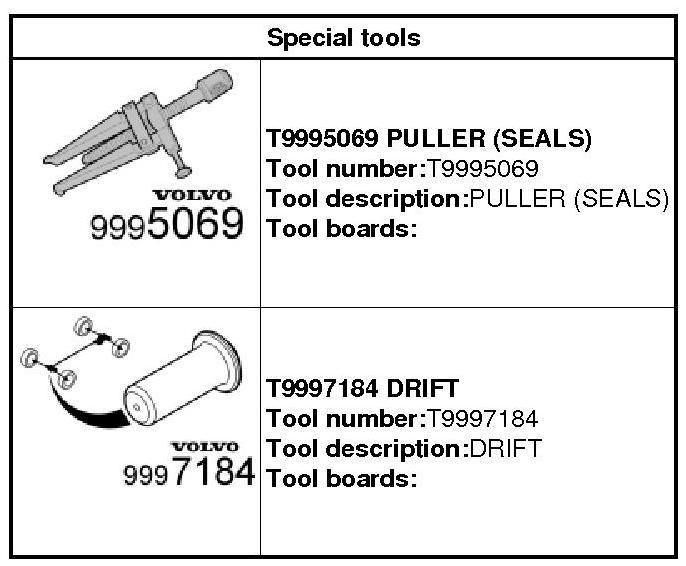

999 5069 EXTRACTOR 999 5069 EXTRACTOR.





999 7184 Drift 999 7184 Drift.

Installation

To install, reverse the removal procedure
Install the transaxle.
