Switch, Power Window, Rear Side Door, Replacing







Switch power window rear side door, replacing

Removal

Switch




- Remove the door panel. See Panel rear side door, replacing Service and Repair
- Disconnect the connector

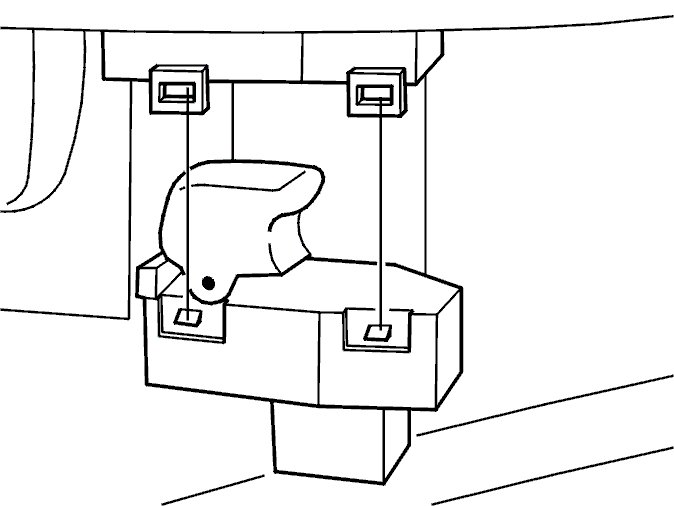

- Release the catches. Press the switch up and off.

Installation

Switch
In reverse order
