Collision Sensor Front, Replacing

Collision sensor front, replacing

The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Preparations




Remove the battery lead. See Battery, disconnecting Battery, Disconnecting.

Removing the front collision sensor





Remove:
- the headlamp.

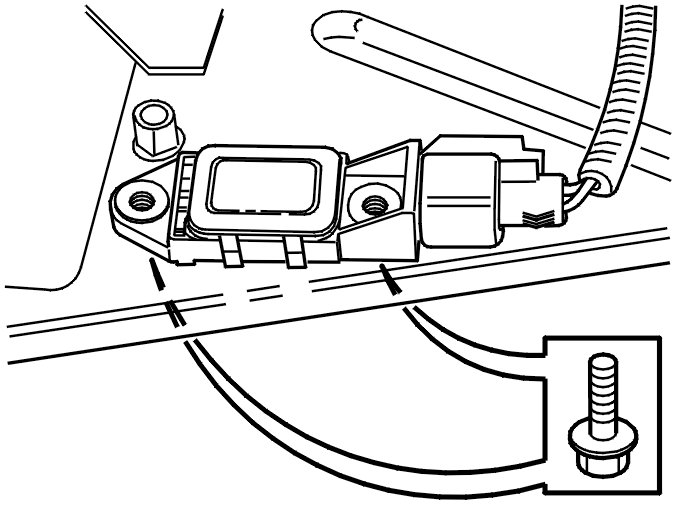

- the 2 screws
- the connector.

Note! Do not pull on the wiring.

Installing the front collision sensor

Note! For tightening torques, see Tightening torque [1][2]Body and Frame.

Install:
- the headlamp.
- the connector
- the 2 M6 screws. Tighten
