Collision Sensor B And C-Post, Replacing

Collision sensor B and C-post, replacing

As the illustrations in this service information are used for different model years and / or models, some variation may occur. However, the essential information in the illustrations is always correct.

Collision sensor B-post, replacing

Preparations




Remove the battery lead. See Battery, disconnecting Battery, Disconnecting.

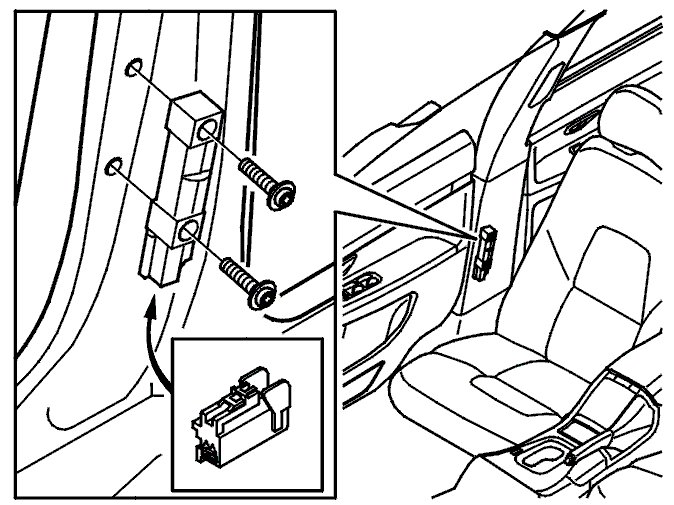

Removing the collision sensor B-post





Remove:
- the B-post panel. See Panel B-post, replacing Panel, B-Post, Replacing
- the connector by pressing the catch and carefully pull downwards.

Note! Do not pull the wiring.

- the 2 screws
- the collision sensor.

Installing the collision sensor in the B-post

Install:
- the collision sensor
- the 2 screws. Tighten. See Tightening torque [1][2]Body and Frame
- the connector
- the B-post panel. See Panel B-post, replacing Panel, B-Post, Replacing.

Collision sensor C-post, replacing

Preparations




Remove the battery lead. See Battery, disconnecting Battery, Disconnecting.

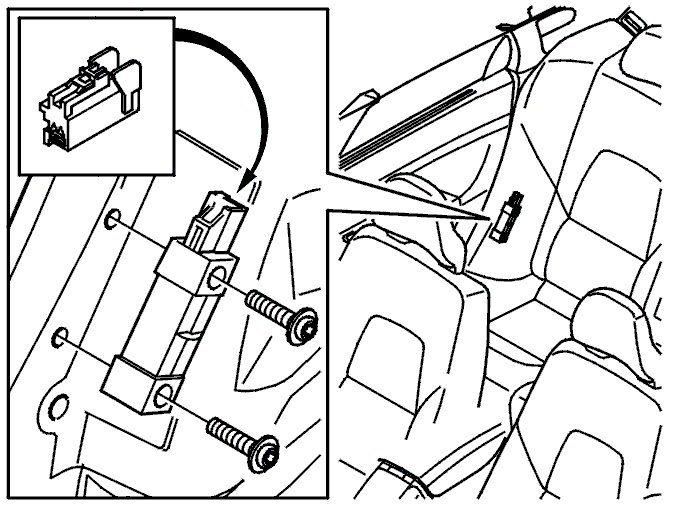

Removing the collision sensor from the C-post





Remove:
- the side panel. See Side panel cargo compartment, replacement Side Panel, Cargo Compartment, Replacing
- the connector by pressing the catch and carefully pull downwards.

Note! Do not pull the wiring.

- the 2 screws
- the collision sensor.

Installing the collision sensor in the C-post

Install:
- the collision sensor
- the 2 screws. Tighten. See Tightening torque [1][2]Body and Frame
- the connector
- the side panel. See Side panel cargo compartment, replacement Side Panel, Cargo Compartment, Replacing.
