Signal Specification, Audio Module (AUD)

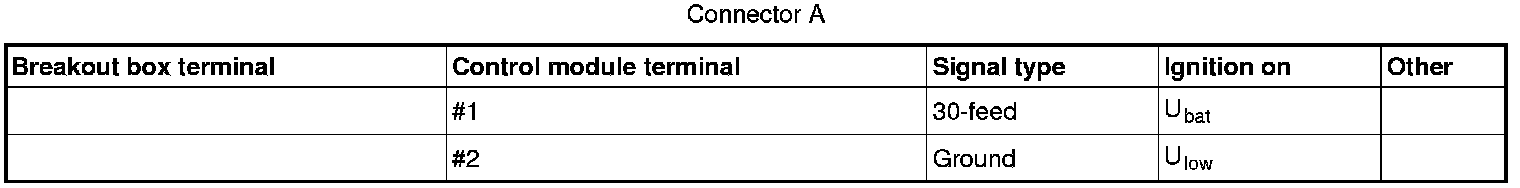

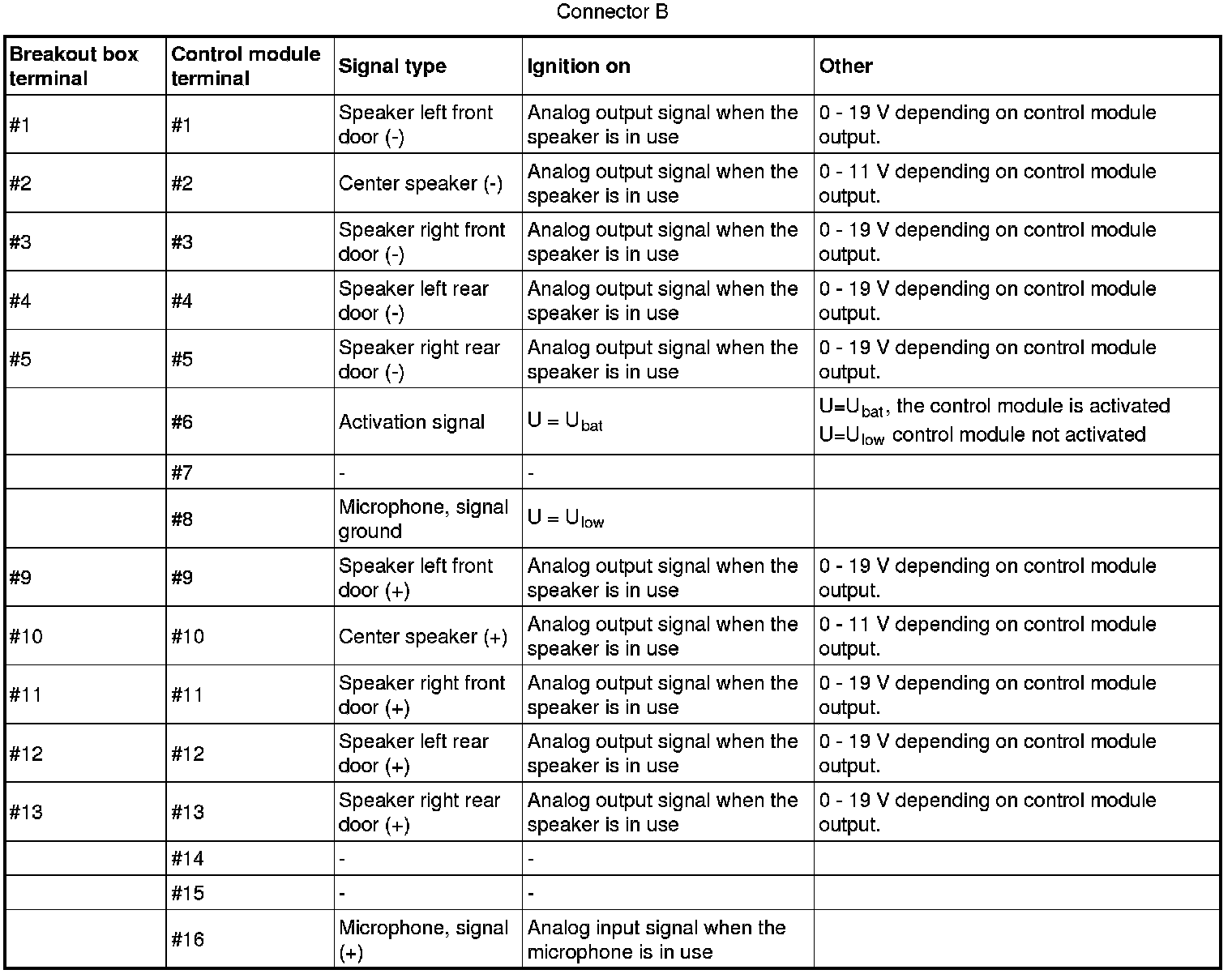

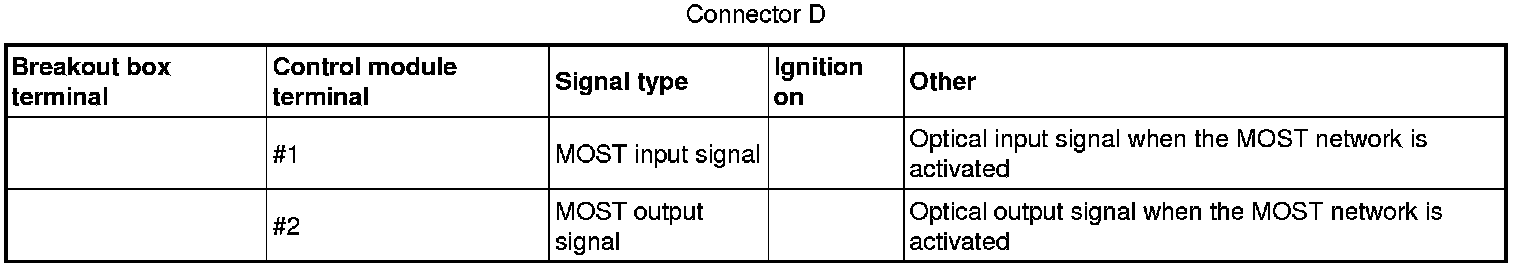

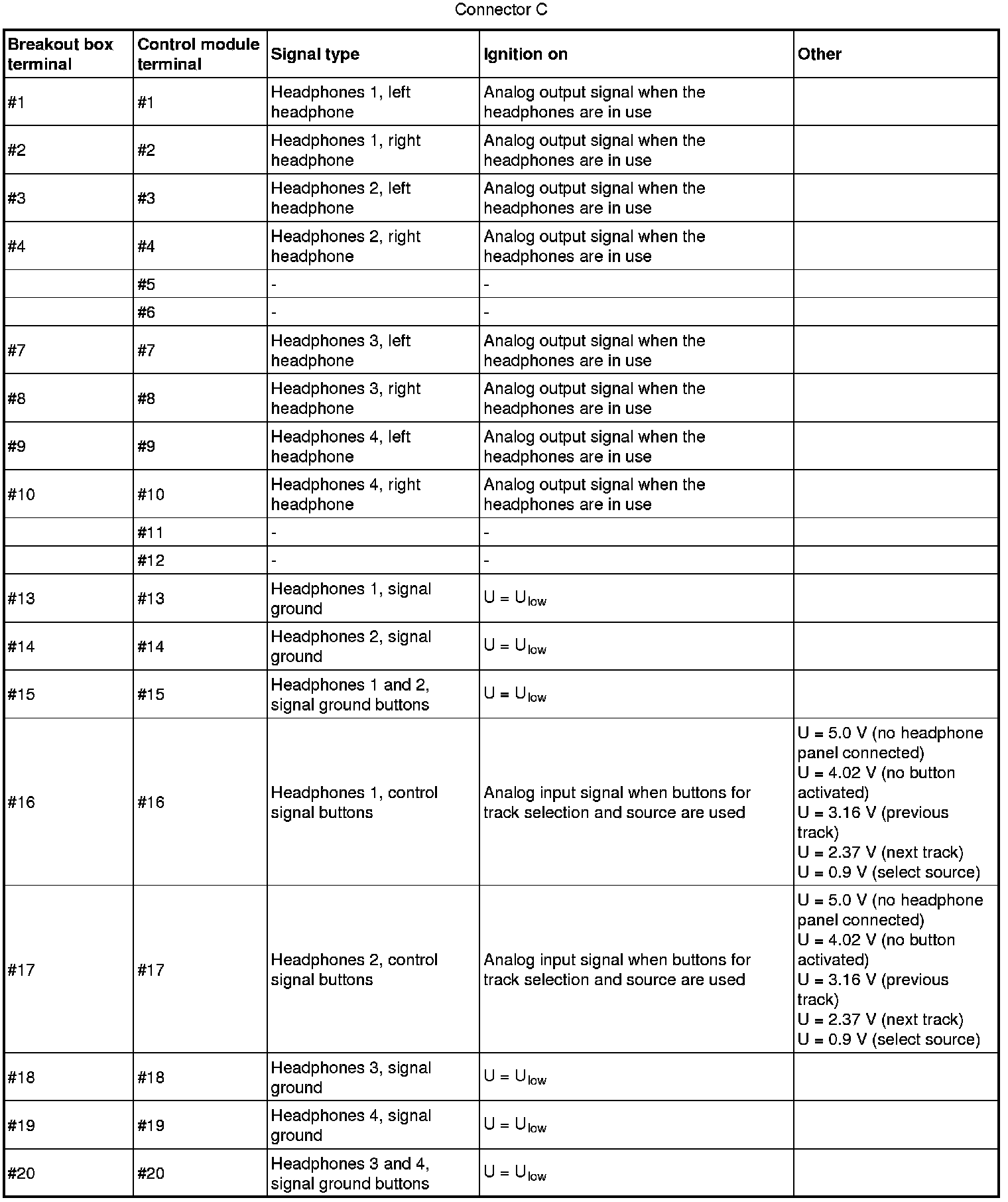

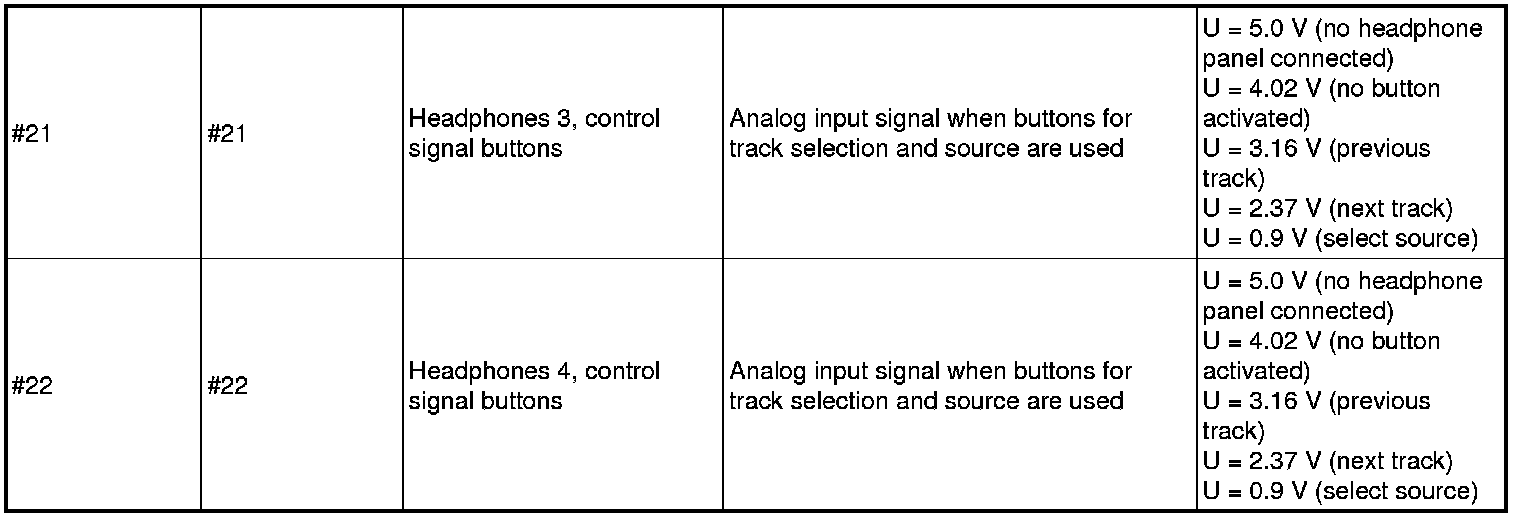

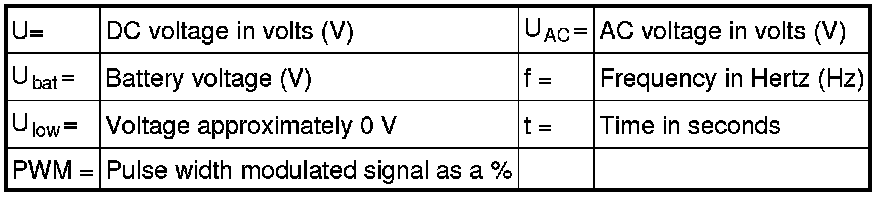

Signal specification

General































Note! The connector is only on cars with headset panels.
