Procedures

Operation number: 25121

Throttle body, cleaning

Note! Some variation in the illustrations may occur, but the essential information is always correct.






Removal and Installation

Note! Removal steps in this procedure may contain installation details.

Remove the throttle body. Refer to: Throttle body, B6324S5 Removal and Replacement





Clean throttle body with brush.
Use: Cleaning agent, 1161826

Make sure that all deposits are removed from marked surfaces.

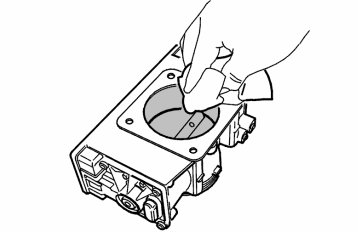

Carefully wipe clean the air duct on both sides of the throttle disc. Also wipe clean the edge of the throttle disc.

Install throttle body. Refer to: Throttle body, B6324S5 Removal and Replacement
