Engine cooling fan (FC) / engine cooling fan (FC) control module
Note! The engine cooling fan may have a post-run of up to approx. 6 minutes after the engine has been turned off. The time for the fan's post-run depends on engine temperature, temperature in the engine compartment and pressure level in the AC-system.
Warning! Be careful since the engine cooling fan may have a post-run after the engine has been turned off.
The engine cooling fan (FC) consists of two fans and two control modules. The control modules are controlled by the same signal from the engine control module (ECM).
Hint: For different reasons, there are variants where the engine cooling fan consists of two fans and one control module.
The engine cooling fan (FC) has two functions. One is to cool the engine compartment, the other is to cool the condenser when the air conditioning (A/C) compressor is working.
The engine control module (ECM) transmits a pulse width modulated (PWM) signal to the engine cooling fan (FC) control modules. The control modules then activate the fans at different speeds. The speed is determined by the engine control module (ECM), depending on the coolant temperature and the vehicle speed.
The temperature conditions for engagement of the different engine cooling fan (FC) stages may vary slightly, depending on the engine variant and the equipment level. The temperature conditions apply when:
- the A/C is off
- no faults are detected by the engine control module (ECM).
The engine cooling fan (FC) is located behind the radiator and its control module is grounded and powered with battery voltage via a fuse.
There are diagnostics for the engine cooling fan (FC). The engine cooling fan (FC) transmits a diagnostic signal to the engine control module (ECM).
Fuel pump (only US)
The function of the fuel pump is to ensure that the pressure is correct at the delivery lines for the injectors when requested by the fuel pump control module.
The fuel pump consists of:
1. An electrical pump with an integrated safety valve
2. A pressure equalization valve. This valve equalizes rapid pressure peaks which occur, for example, when the injectors close during engine braking. It also contains a non-return valve which ensures that the pressure in the system does not drop when the engine is switched off
3. Fuel level sensor
4. Fuel filter, cannot be replaced separately
5. Relief valve, releases fuel into the pump housing
6. Ejector pump, continuously fills the pump housing with fuel. The fuel always flows from the fuel pump through the ejector and back to the pump housing.
The fuel pump is supplied with battery voltage by the fuel pump control module and is grounded in the car body via the fuel pump control module.
The engine control module (ECM) has diagnostics for the fuel pump function to ensure that the pressure is correct. See also: Fuel pressure regulation, diagnostics Fuel Pressure Regulation, Diagnostics
The fuel pump can be activated and its status can be read off.
The pressure in the fuel rail can be measured by connecting a manometer to a nipple. This nipple is on the right-hand end of the fuel rail.
Fuel pump control module
The fuel pump control module is called PEM (Pump Electronic Module). It powers the fuel pump and regulates the output of the pump. The fuel pressure changes with the output of the pump.
The fuel pump control module is supplied with battery voltage by the fuel pump (FP) relay and is grounded in the car body. The fuel pump (FP) relay is controlled by the central electronic module (CEM) when requested by the engine control module (ECM).
The engine cannot be started if the power supply to the fuel pump control module is faulty because the fuel pump will not then be powered.
The fuel pump control module is controlled by the engine control module (ECM) via serial communication. The fuel pump control module then controls the fuel pump by transmitting pulse width modulated (PWM) voltage on the ground lead for the fuel pump. This means that the voltage drop across the pump changes, and with it the output of the fuel pump. See also: Function, B6324S5 Function
There are no diagnostics for the fuel pump control module. The engine control module (ECM) has diagnostics for fuel pressure regulation and the associated components. See also: Fuel pressure regulation, diagnostics Fuel Pressure Regulation, Diagnostics
The pulse width modulated (PWM) signal from the engine control module (ECM) to the fuel pump control module can be read off using the diagnostic tool.
The fuel pump control module is on the outside on the right-hand side of the fuel tank.

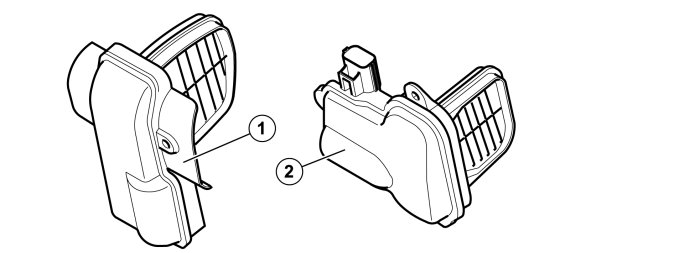

Actuator variable intake manifold
1. Primary actuator with throttle (upper)
2. Secondary actuator with throttle (lower)
The function of the actuators is to vary the length of the intake manifold, via throttles installed in the intake manifold.
The actuators are supplied with voltage from the system relay via fuse and ground (control) internally in the engine control module (ECM).
See also Function, B6324S5 Function
The actuators for variable intake can be diagnosed by the engine control module (ECM).
The actuators are bolted directly to the intake manifold.

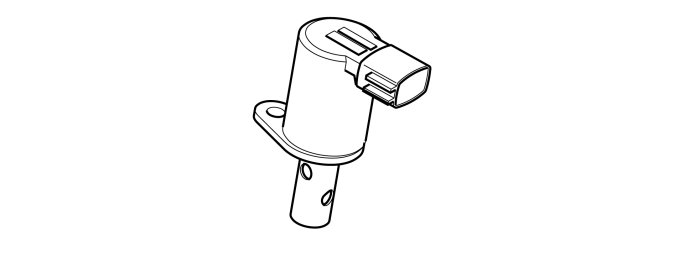

Cam profile solenoid (CPS)
The function of the solenoid is to control (trigger) oil pressure to the hydraulic valve depressors.
The solenoid is supplied with voltage from the system relay via fuse and ground (control) internally in the engine control module (ECM).
The system has two solenoids that each supplies a number of cylinders.
The solenoids are located on each side of the engine between the camshafts.
The solenoids can be diagnosed by the Engine control module (ECM).
See also Function, B6324S5 Function
Emissions warning lamp
The emissions warning lamp in the Driver Information Module (DIM) has a warning symbol. This warning symbol varies depending on the market. The warning symbols are:
- "Engine symbol" (not USA)
- "CHECK ENGINE" (MIL - Malfunction Indicator Lamp, USA only).
The warning lamp lights when the ignition key is turned to position II. The warning lamp will go out after approximately 15 seconds or if the engine is started when no fault is found in the engine management system.
If Readiness is not complete (certain diagnostic functions not completed), the warning lamp will flash instead of going out when the ignition key is in position II.
The warning lamp will light if there is a fault in one of the parameters in the engine management system. The warning lamp will also light in response to a request transmitted via the control area network (CAN) if there is a fault in the transmission control module (TCM) which affects emissions.
Electronic throttle unit
The electronic throttle unit, using the PWM control signal from the engine control module (ECM), regulates the amount of air for engine combustion. This is done using an electronically controlled shutter.
The aluminium electronic throttle unit consists of a round throttle disc on a spindle. The spindle is driven by a DC motor (damper motor), gear wheel and two springs; one for opening and one for return.
By changing the polarity of the power supply, the DC motor can be run in both directions. At one of the limit positions the throttle disc is closed so that minimal air can pass the throttle unit. In the other limit position, the throttle disc is parallel to the air flow. This provides maximum airflow through the electronic throttle unit.
Two permanent magnets in the gear sector on the throttle spindle are used to check the position of the throttle disc. The permanent magnets affect two throttle position (TP) Hall sensors in the cover. The analog signals from the two sensors are transmitted to the engine control module (ECM). The signals are offset. The engine control module (ECM) compares these signals with the stored desired values to check if they are plausible.
The electronic throttle unit is located on the engine intake manifold. In the event of a fault, the throttle unit must be replaced as a single unit.
The engine control module (ECM) can diagnose the electronic throttle unit.
Throttle position (TP) sensor
See Design, Electronic throttle unit.
