Oil Filter: Service and Repair

Operation number: 22217-2

Oil filter

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Removal

Warning! Hot fluids.

Note! Removal steps in this procedure may contain installation details.

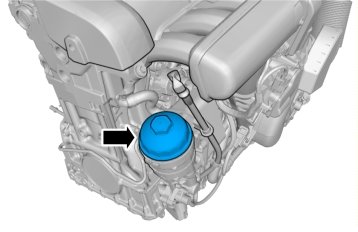

The oil filter cover must be loosened before all the oil can be drained.





Oil filter casing. See Tightening torque, B6324S5 Tightening Torque







Raise the vehicle. Refer to: Jacking points, body Jacking Points, Body.











Warning! Be prepared to collect escaping fluid.

the oil plug. Refer to: Tightening torque, B6324S5 Tightening Torque

Installation

To install, reverse the removal procedure.

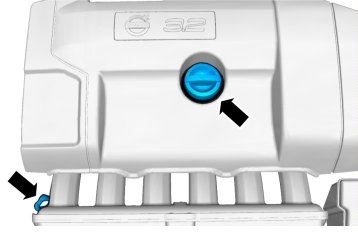

Fill with oil.

Start the engine and check the oil level and check for any leaks. Top up as necessary, but do not overfill.
