Engine, Installing

Operation number: 21004-0

Engine, installing

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Installation

Caution! Make sure that no components catch when lifting the engine.

Use: Lift table.
Make sure that the mating surfaces on the ball joints and control arms are clean.
Raise the engine/transmission unit. Stop the lift approx. 15 cm before the subframe reaches the frame members.
Install (on both sides) the drive shaft to the hub.
Continue raising the engine until it is only approx. 50 mm before it makes contact.
Guide the lower steering shaft into the hole in the firewall.

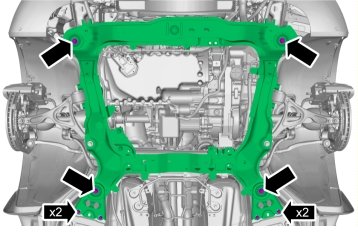

the subframe. Refer to: Tightening torque, B6324S5 Tightening Torque

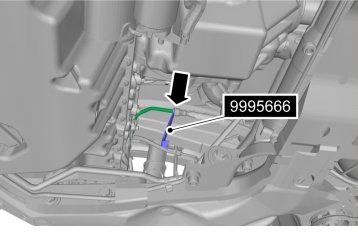

999 5666 Wrench 999 5666 Wrench

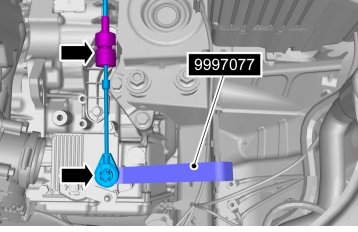

999 7076 Lever 999 7076 Lever

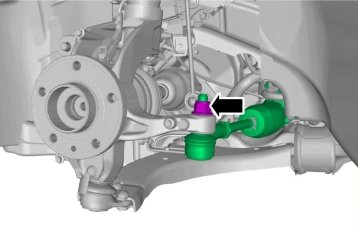

Nut, ball joint. Refer to: Tightening torque, B6324S5 Tightening Torque

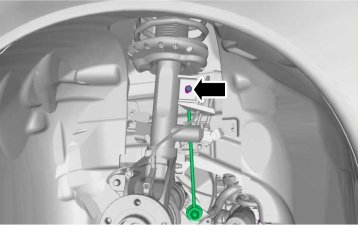

Anti-roll bar link. Refer to: Tightening torque, B6324S5 Tightening Torque

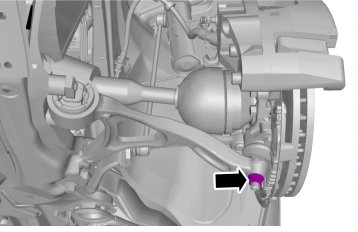

Ball joint. Refer to: Tightening torque, B6324S5 Tightening Torque

Drive shaft screw. Refer to: Tightening torque, B6324S5 Tightening Torque

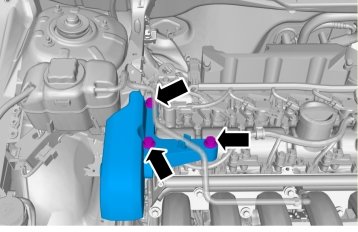

M10. Refer to: Tightening torque, B6324S5 Tightening Torque

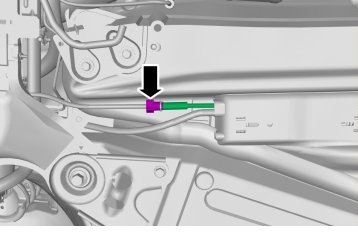

Steering shaft joint. Refer to: Tightening torque, B6324S5 Tightening Torque

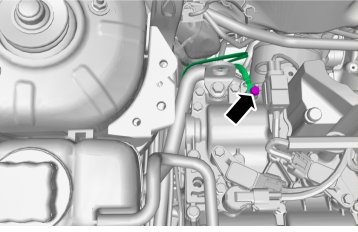

M8. Refer to: Tightening torque, B6324S5 Tightening Torque

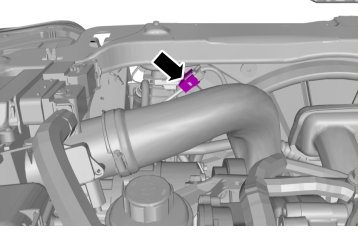

M6. Refer to: Tightening torque, B6324S5 Tightening Torque

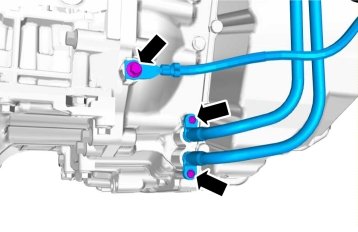

Install the following items:

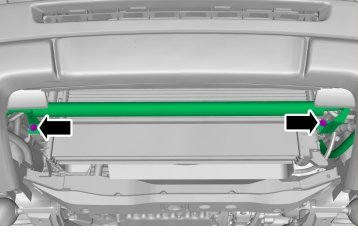

- M10. Refer to: Tightening torque, B6324S5 Tightening Torque
- M12. Refer to: Tightening torque, B6324S5 Tightening Torque

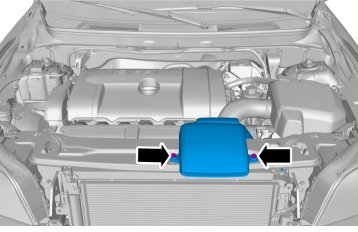

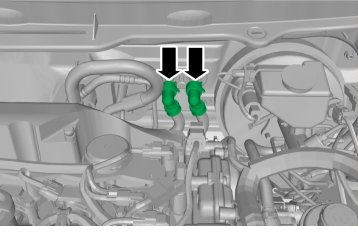

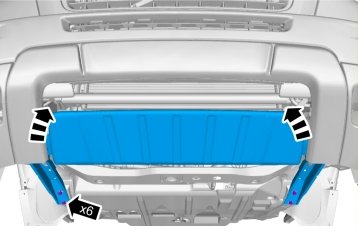

Install the following items:
- the auxiliaries belt.
- the catalytic converter. Refer to: Catalytic converter, B6324S5 Service and Repair
- the propeller shaft. Refer to: Propeller Shaft, B6324S5, TF-80SC AWD Propeller Shaft
- front tires. Refer to: Installing wheels Installing Wheels.

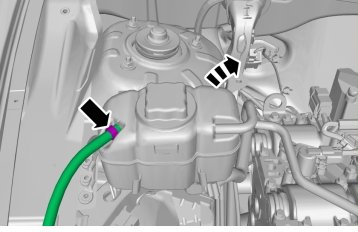

Charge the cooling system. Refer to: Cooling system - draining, charging and bleeding Service and Repair.
Connect the battery. Refer to: Battery, replacing Removal and Replacement.
