Engine Block, Installing Components

Engine block, installing components






Install the following items:
1. ignition coils
Torque: M6, 10 Nm

2. fuel rails/fuel injectors
Torque: M6, 10 Nm

3. the sensor
Torque: M6, 10 Nm

4. cover crankcase ventilation
Torque: M6, 10 Nm

5. lifting eyes
Torque: M10, 50 Nm





1. Oil trap
Torque: M6, 10 Nm

2. water pipe
Torque: M7, 17 Nm

3. the thermostat housing
Torque: M6, 10 Nm





Install the cable harness.
Torque: M6, 10 Nm





Install the generator.

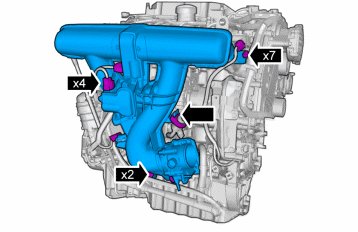

Install intake manifold. Refer to: Induction pipe, B6324S5 Service and Repair

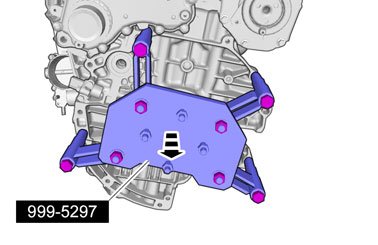

999 5297 ENGINE FIXTURE 999 5297 ENGINE FIXTURE 999 2520 FLOOR STAND 999 2520 FLOOR STAND 998 9721 SCREW SET 998 9721 SCREW SET

Install carrier plate. Refer to: Carrier plate, B6324S5, TF-80SC, B6324S5, TF-80SC AWD Service and Repair





Install transmission.





Install the following items:
1. radiator hose
2. front auxiliary unit console
3. console transmission
4. AC-console
5. water pipe
Torque: M6, 10 Nm

Install the engine. Refer to: Engine, installing, B6324S5 Engine, Installing
