Signals

Signals

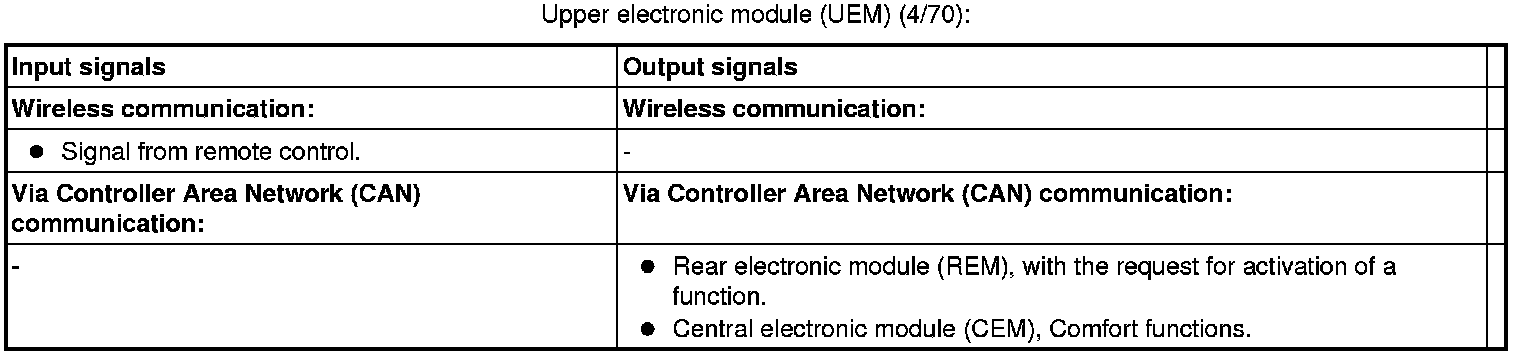

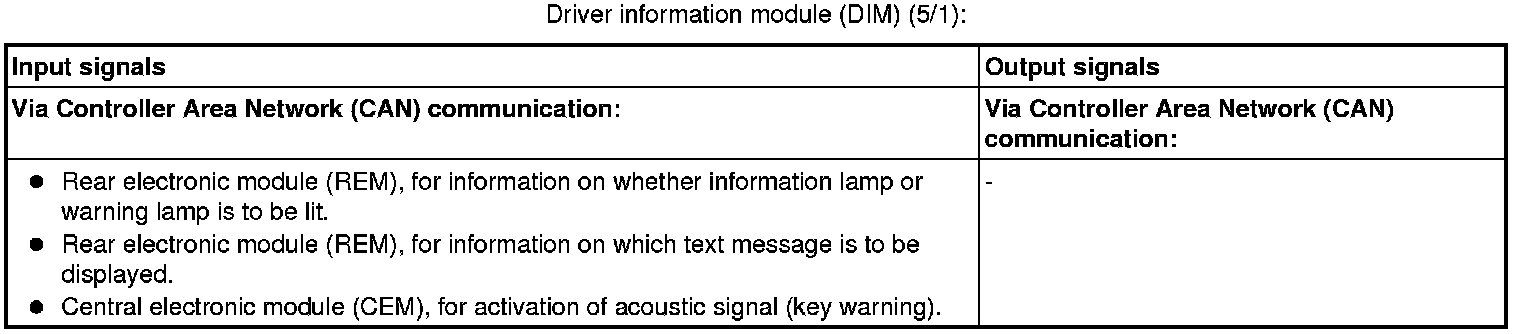

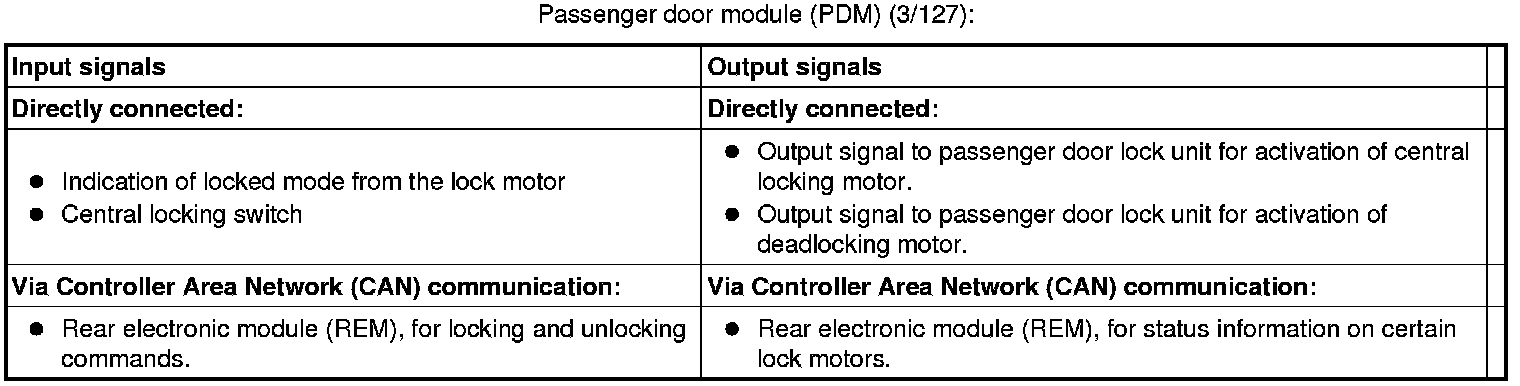

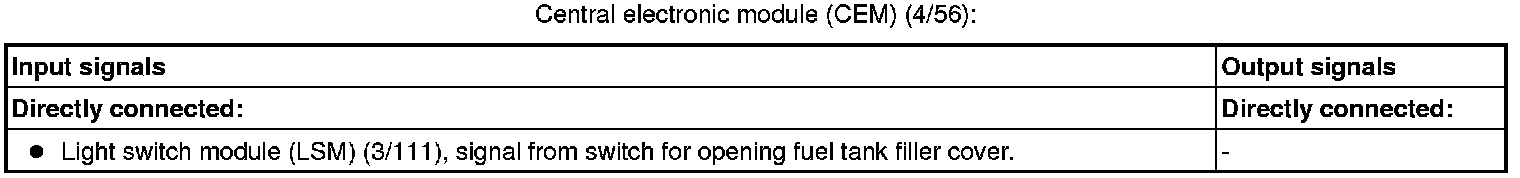

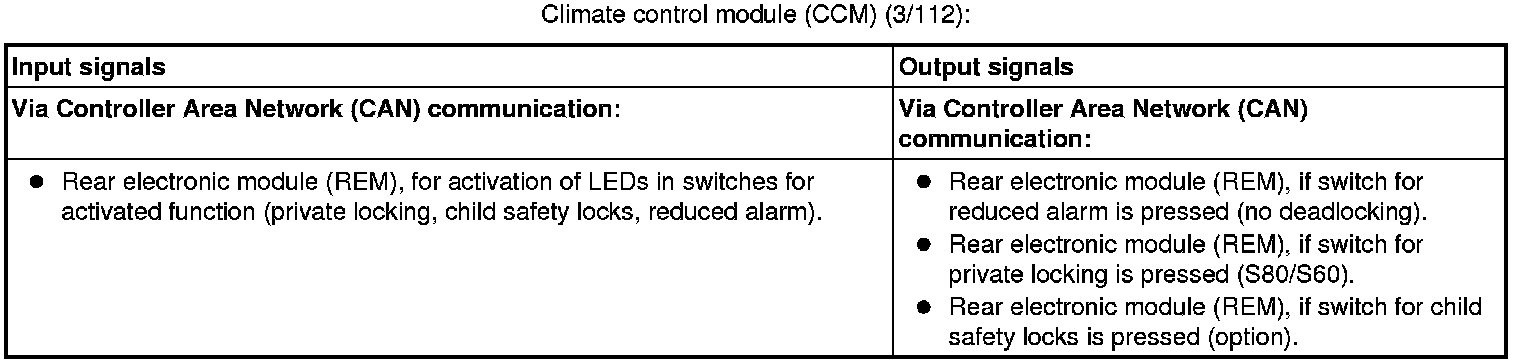

The tables below summarize the input and output signals to the units in the central locking function. The signal types are divided into directly connected signals and Controller Area Network (CAN) communication.
