Signal Description, Central Electronic Module (CEM)

Signal description Central Electronic Module (CEM)

General

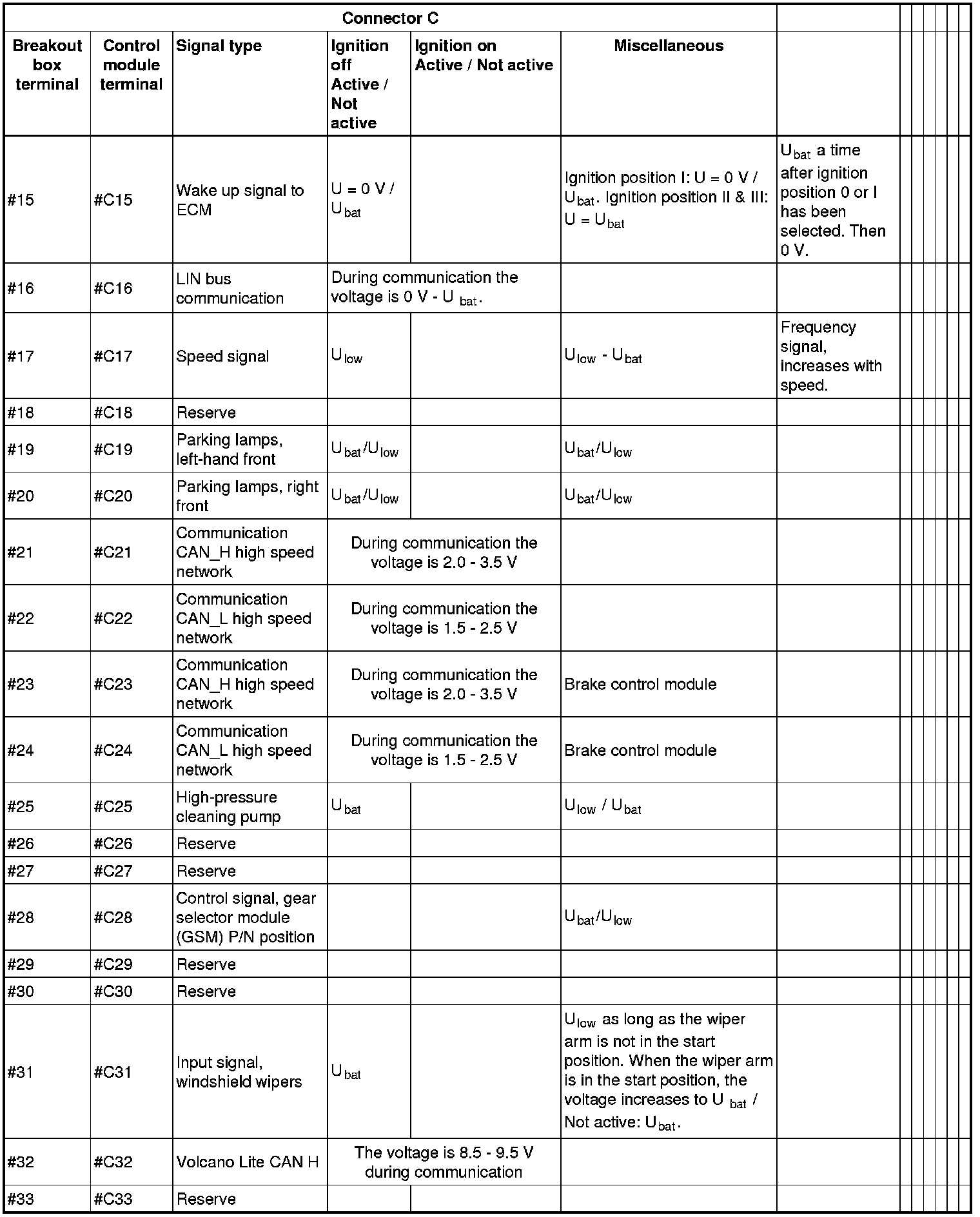

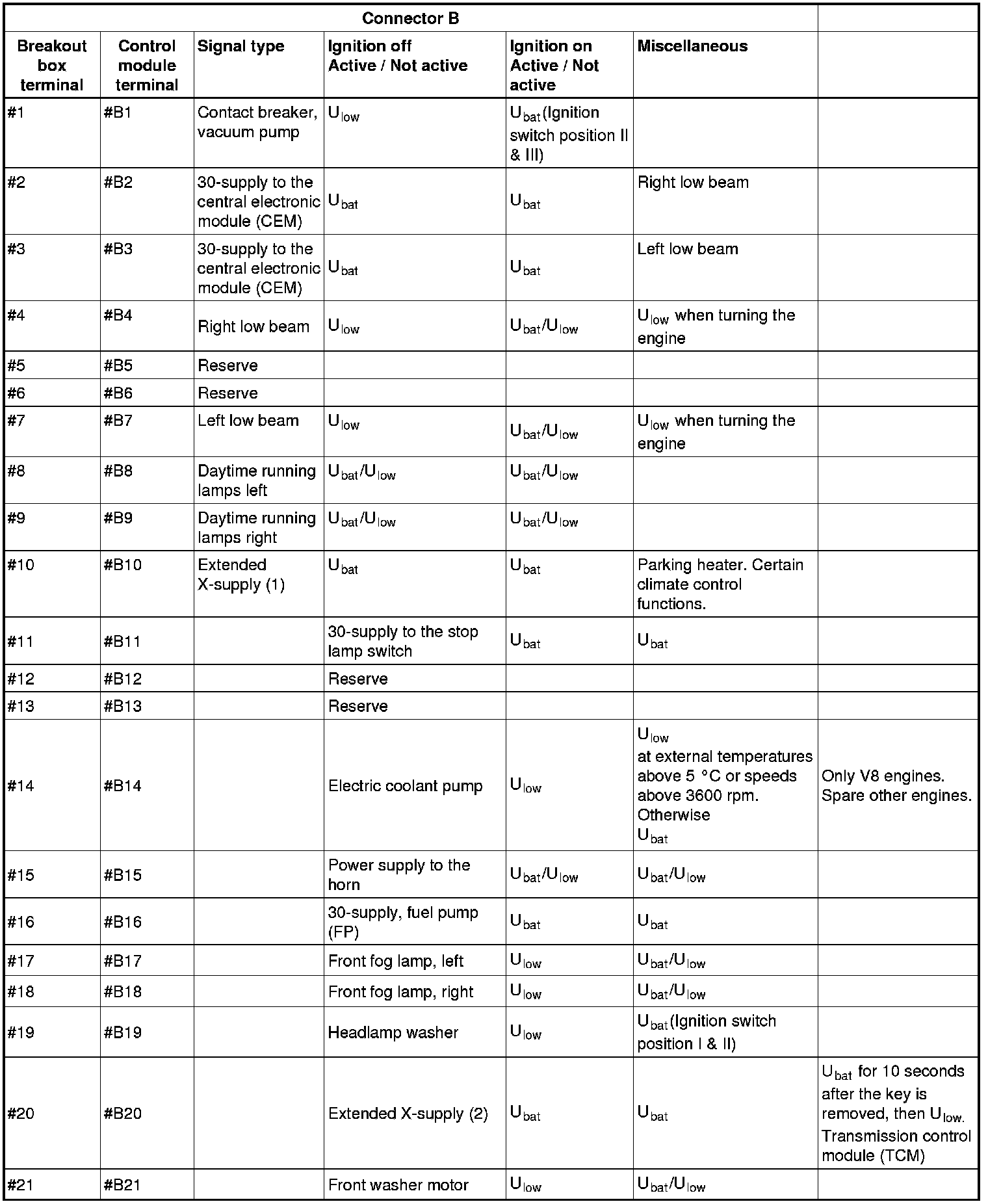

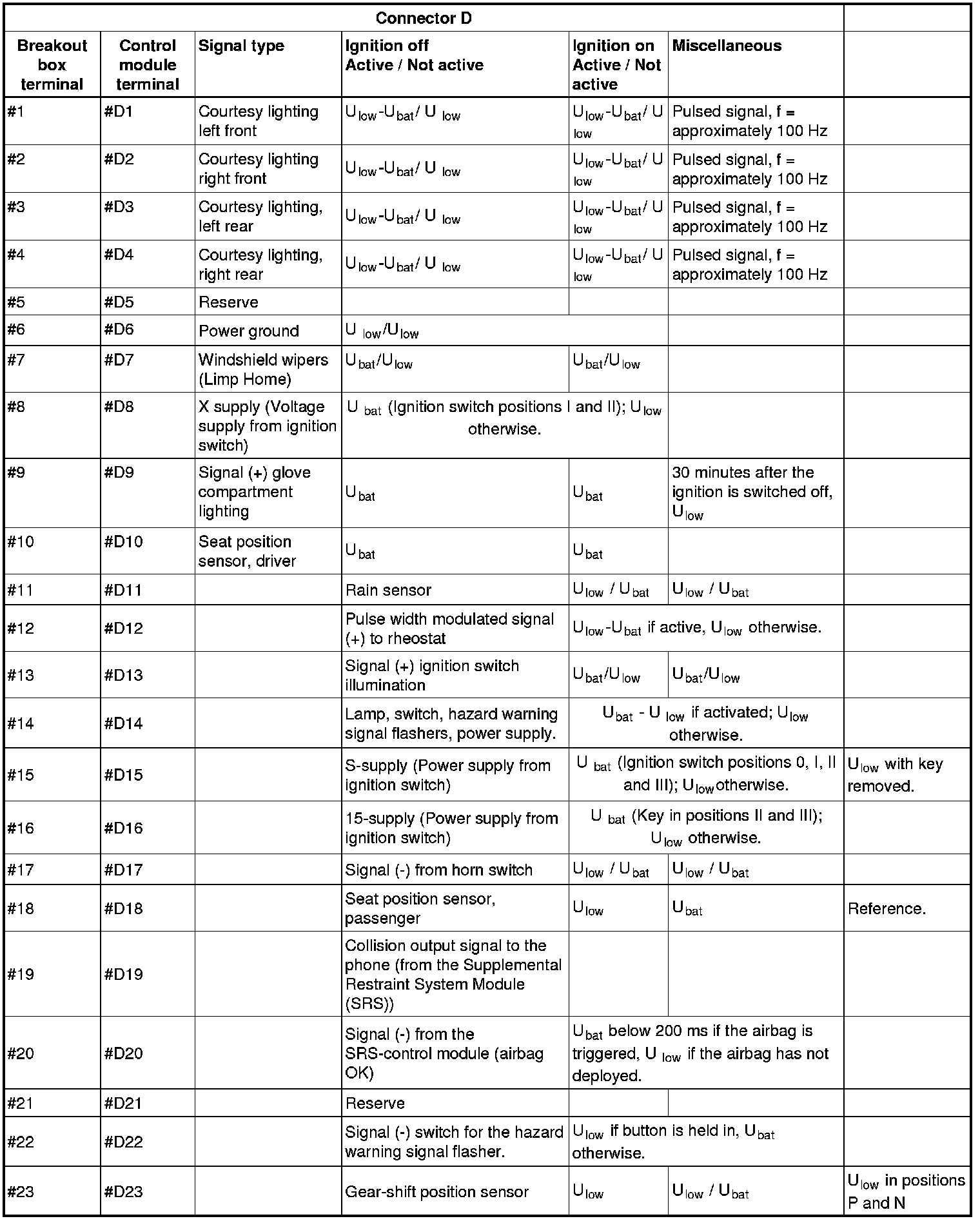

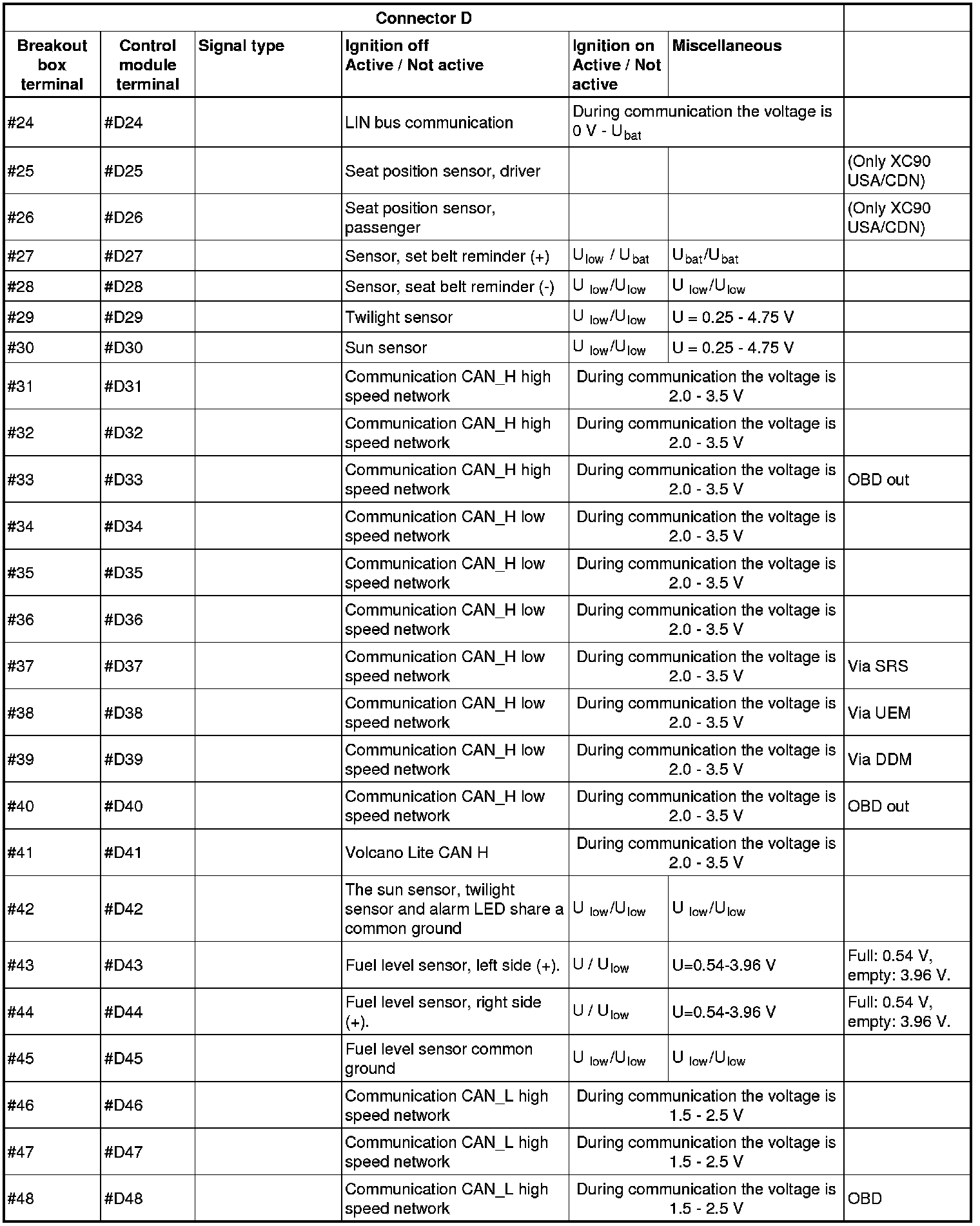

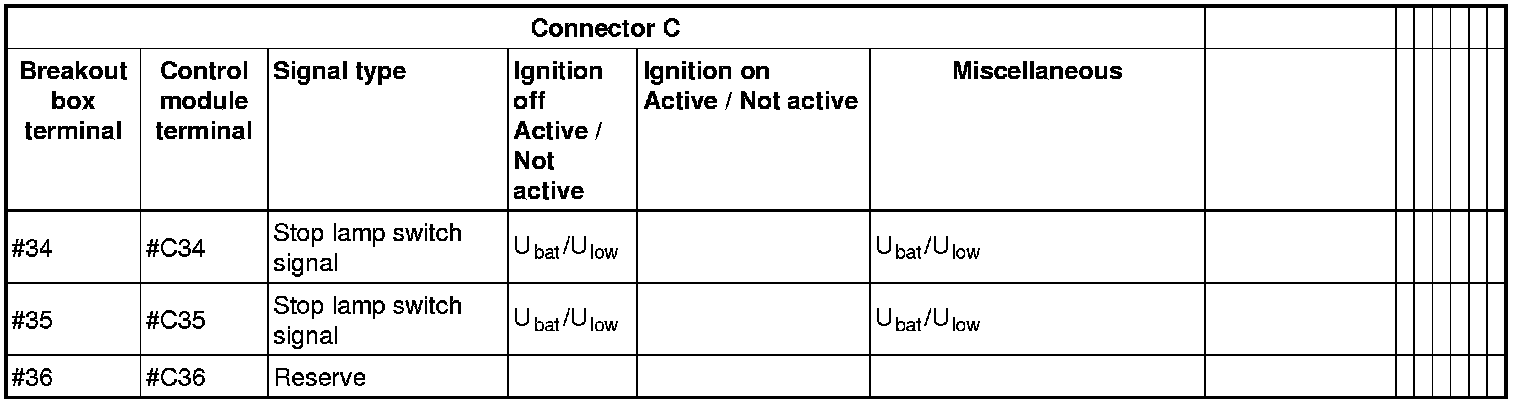

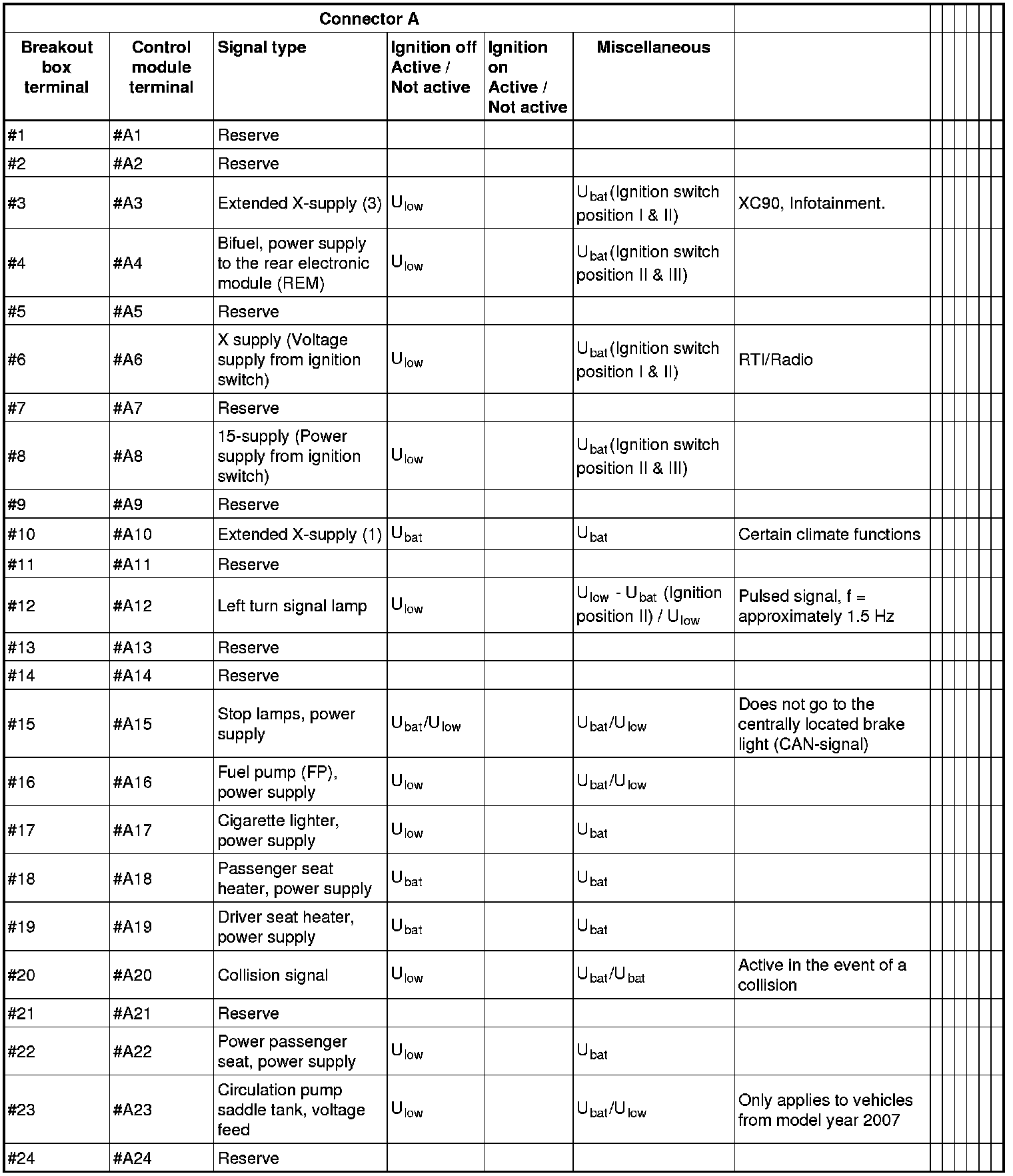

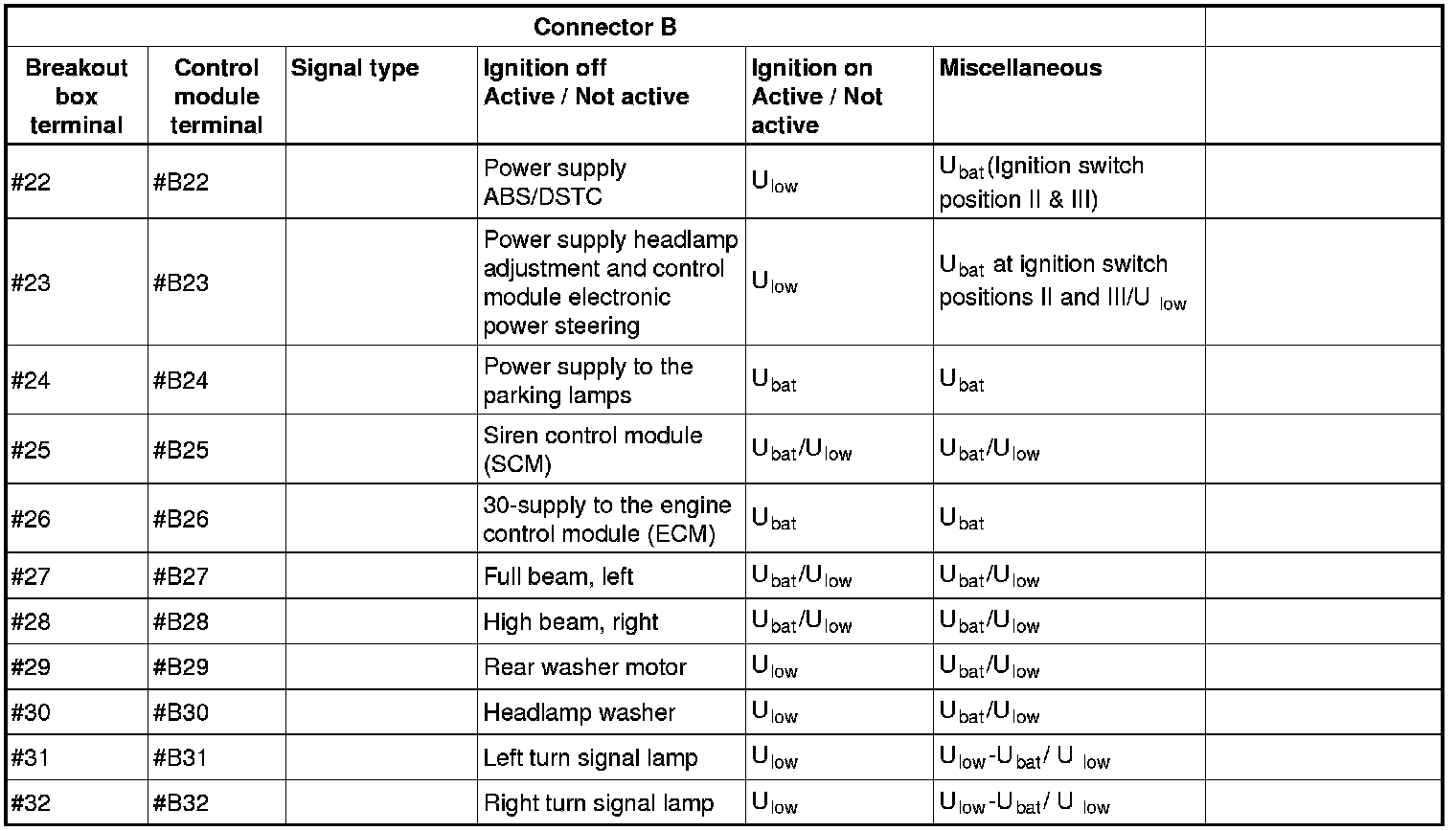

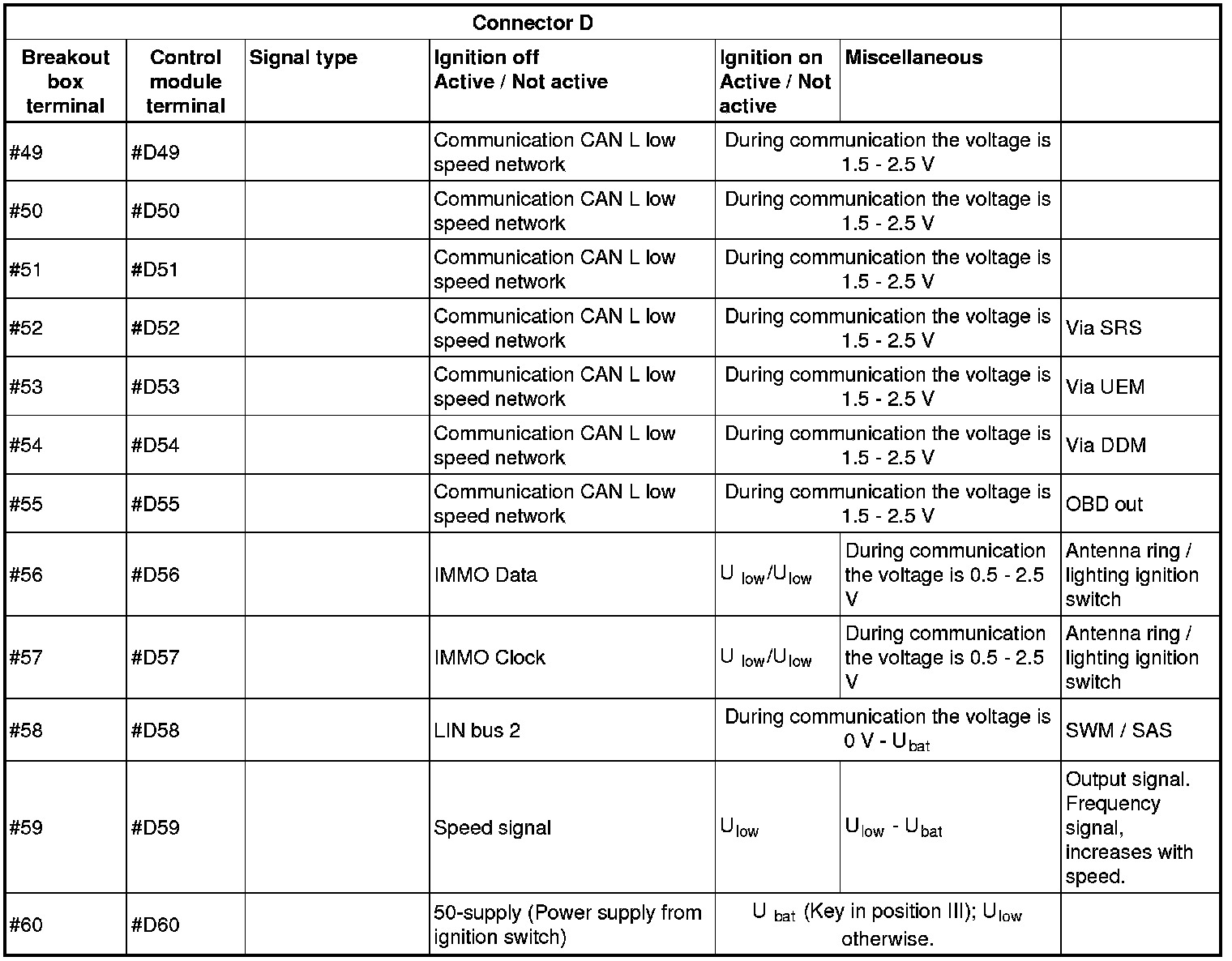

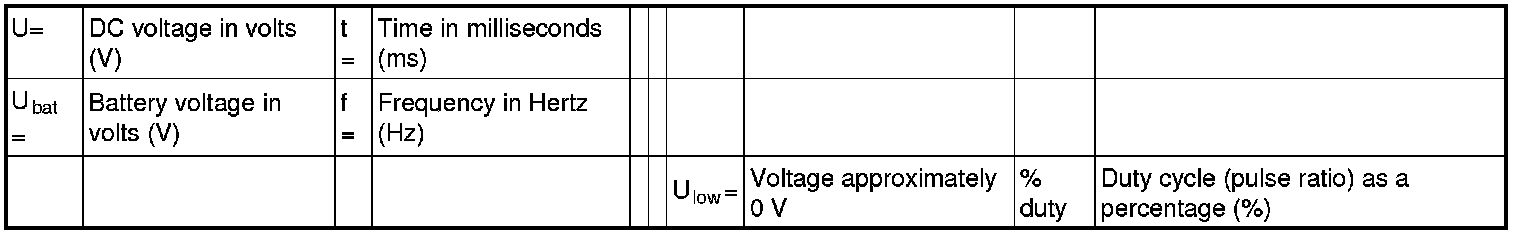

All the values given below are between the terminals stated in column 1 and terminal #D6 in column 2 (power ground). This applies unless otherwise indicated in the last column.

Note! It is important that the breakout box is connected and that the ground connections have been checked before starting to measure.
